Starting System: Service and Repair

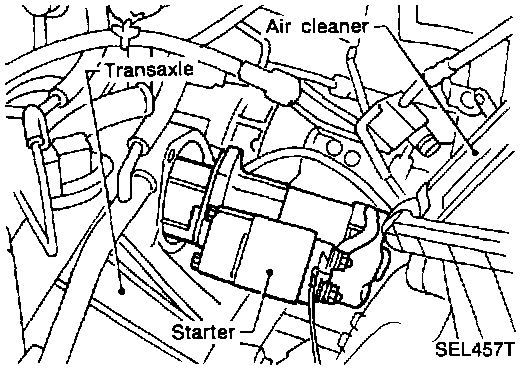

Removal:

REMOVAL
1. Remove air duct assembly.
2. Disconnect starter harness.
3. Remove starter bolts (two).
4. Remove starter.

Installation:

INSTALLATION
To install, reverse the removal procedure
