A/C - New O-Rings & Joint Connector

Classification:
HA97-003

Reference:
NTB97-013

Date:
February 19, 1997

NEW 0-RING/JOINT CONNECTOR

APPLIED VEHICLE(S):
1996 Maxima (A32) production date 6/96
1997 Maxima (A32)
1997 240SX (S14)

SERVICE INFORMATION

This bulletin introduces a new type joint connector and 0-ring for the air conditioning system.

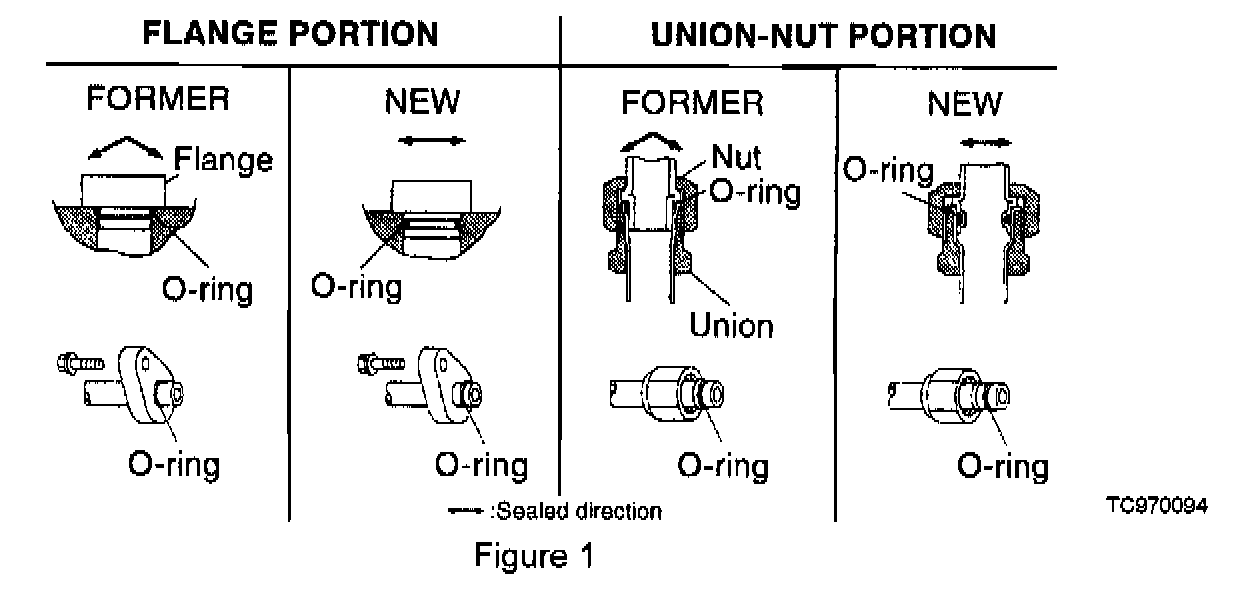

The new type 0-ring fitting improves joint sealing (see Figure 1). The new straight port fitting requires different 0-rings than in the past. The new 0-rings are not interchangeable with the former type because they differ in diameter and thickness.

IMPORTANT:
Correct 0-ring usage is vital to proper sealing at the joint connections.

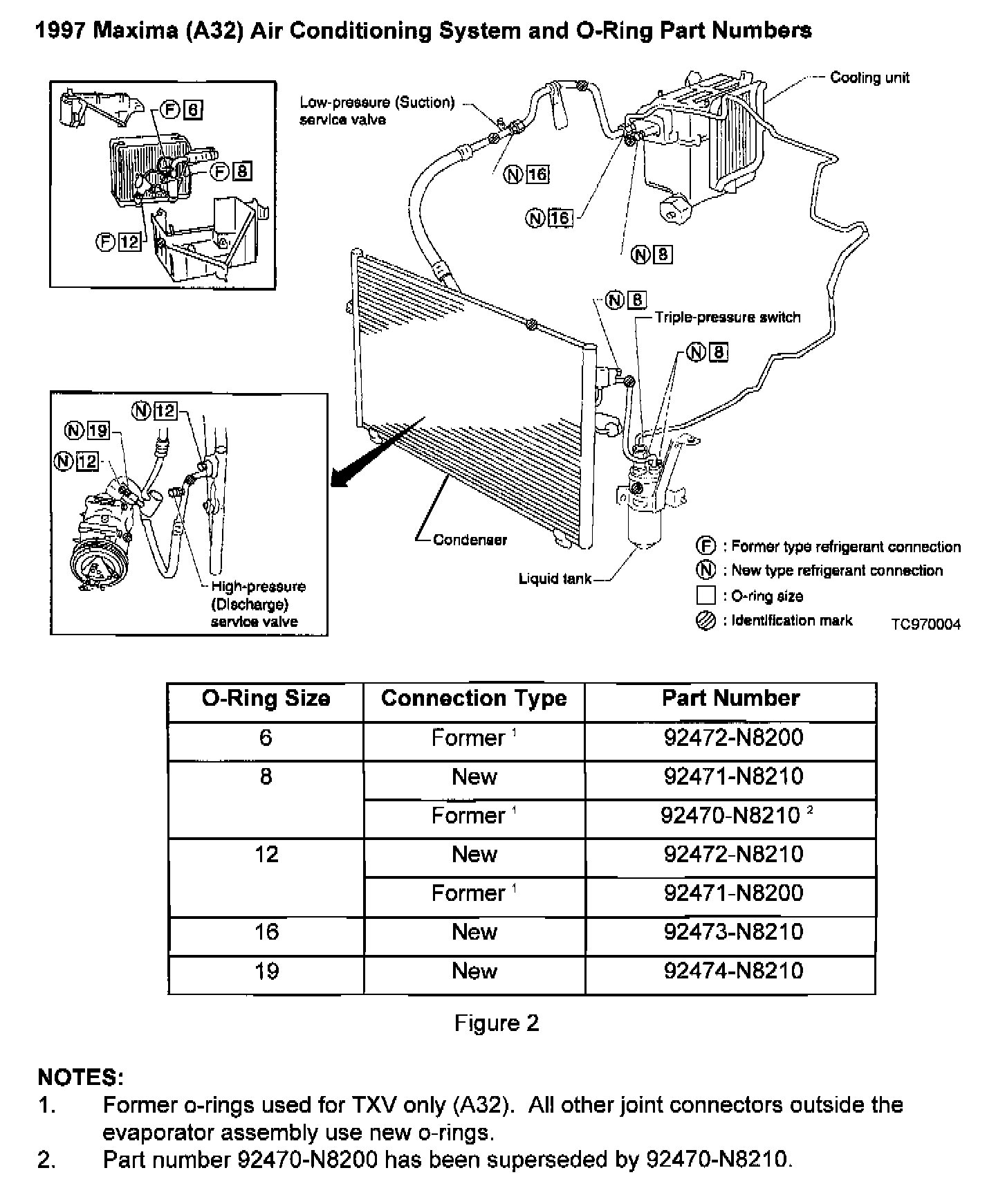

Always confirm the correct part number 0-ring for use in the proper location. See Figures 2 and 3 for the 0-ring part numbers.

SERVICE PROCEDURE

For further details on 0-ring and refrigerant connections of the appropriate service manual.
