Sunroof - Binds/Leaks/Inoperative: Overview

Classification:
BT99-049

Reference:
NTB00-001

Date:
December 15,1999

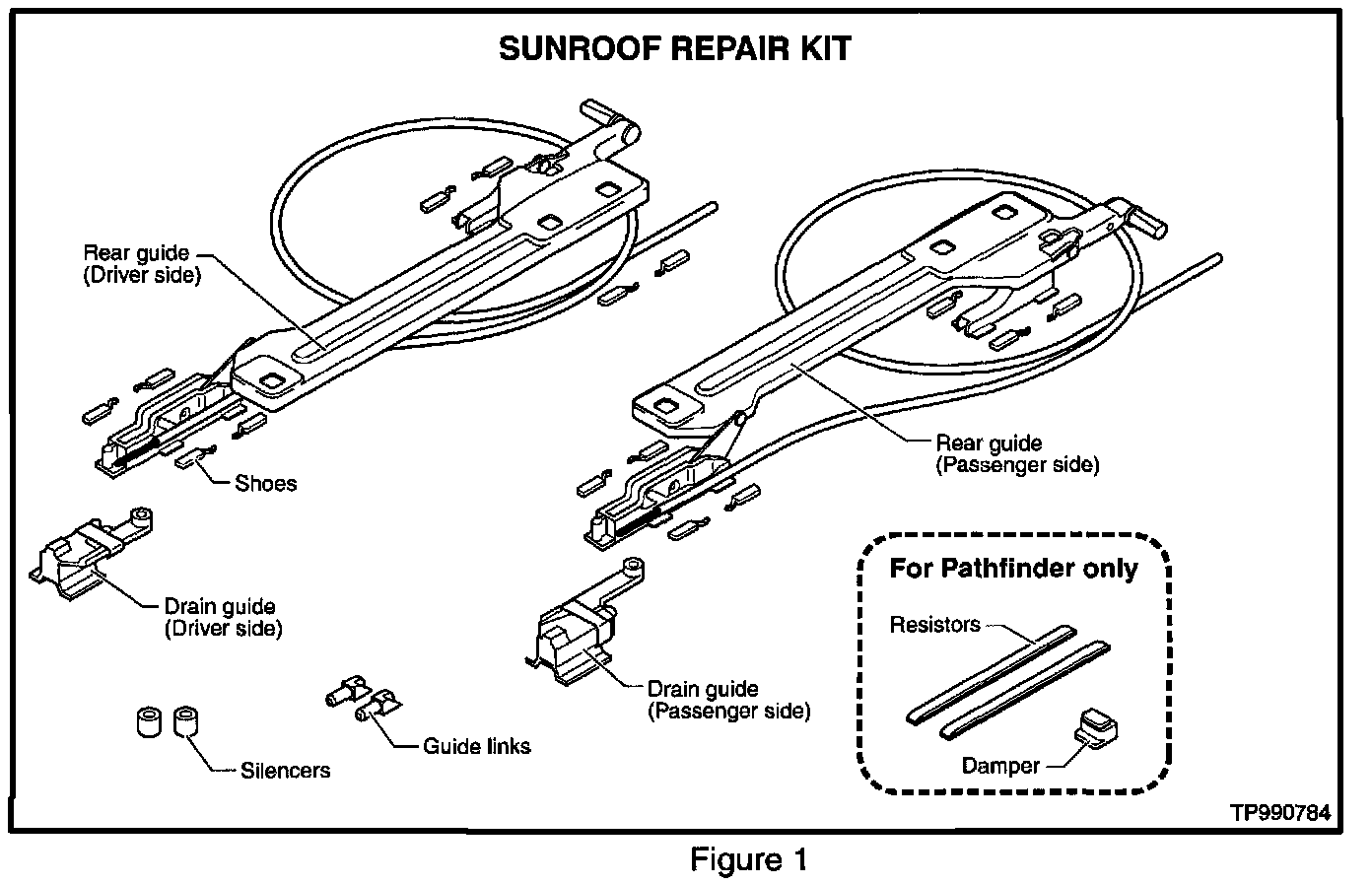

SUNROOF RAIL ASSEMBLY REPAIR

APPLIED VEHICLES:
1995-97 Maxima (A32)
1996-99 Pathfinder (R50)

SERVICE INFORMATION





If an applied vehicle exhibits the following symptoms, use the service procedure to resolve the incident(s).

^ Sunroof binds

^ Sunroof motor runs but the sunroof will not open or close

^ Sunroof leaks

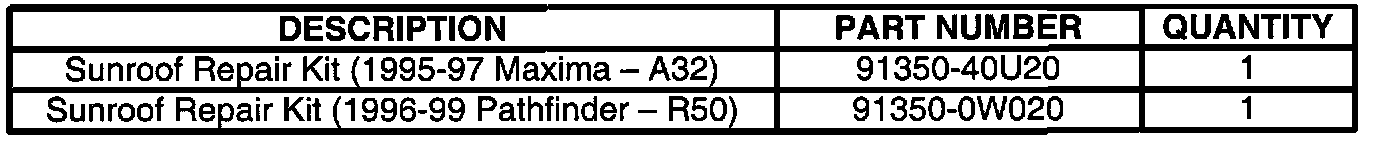

PARTS INFORMATION

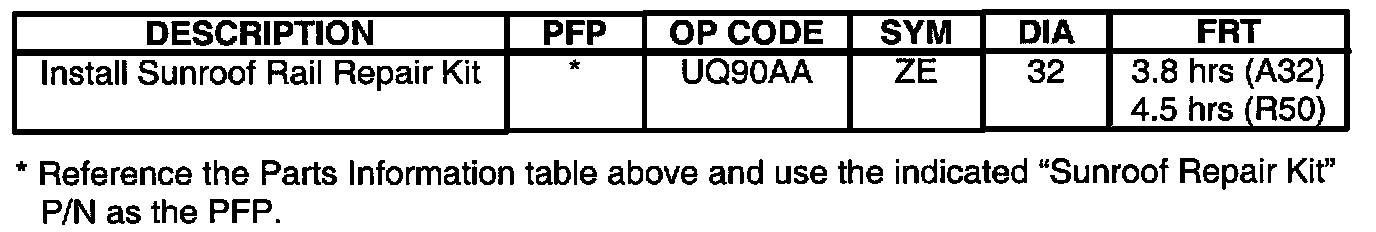

CLAIMS INFORMATION

NOTE:
This is the ONLY approved repair procedure for this incident. A claim to Nissan for the repair of this incident may be denied if the repair is not performed exactly as outlined in this bulletin.

Submit a Primary Failed Part (PP) line using the following claims coding, as shown.
