Antenna: Testing and Inspection

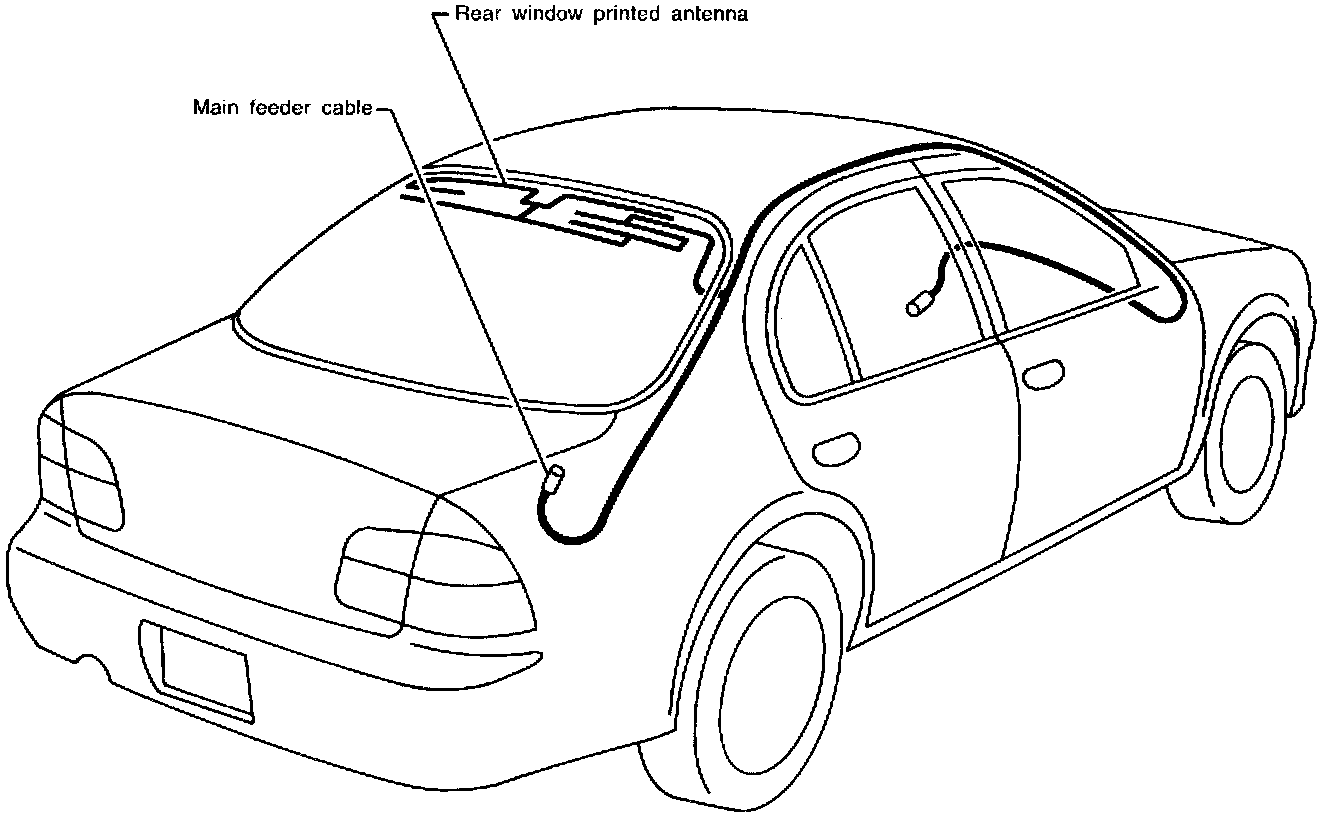

Vehicle Overview

Antenna Inspection
Using a jumper wire, clip an auxiliary ground between antenna and body.
^ If reception improves, check antenna ground (at body surface).
^ If reception does not improve, check main feeder cable for short circuit or open circuit.

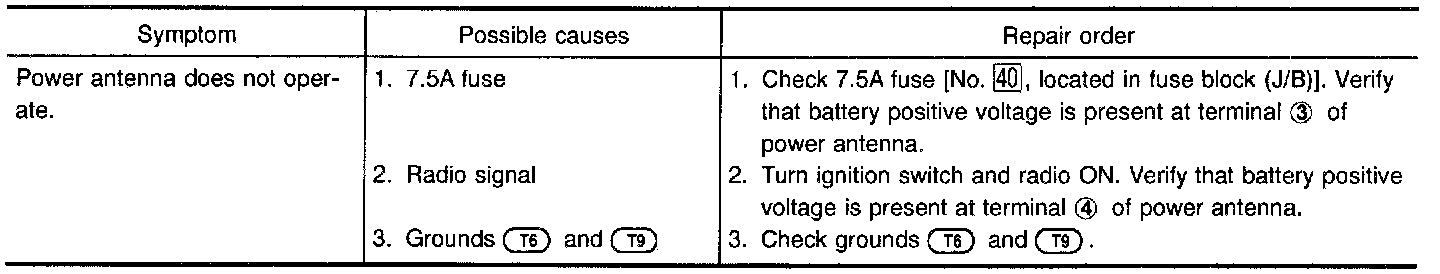

Trouble Diagnosis
