Vehicle Damage Warnings

WARNING: CLEAN BRAKE PADS AND SHOES WITH A WASTE CLOTH, THEN WIPE WITH A DUST COLLECTOR.

CAUTION:
- Recommended fluid is brake fluid "DOT 3".
- Never reuse drained brake fluid.
- Be careful not to splash brake fluid on painted areas.
- To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use clean brake fluid.
- Never use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

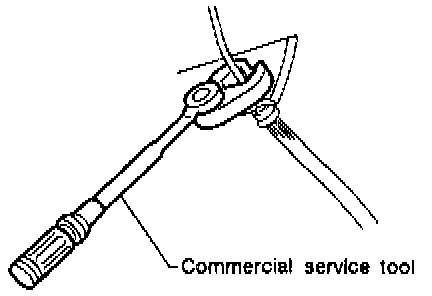

- Use flare nut wrench when removing and installing brake tube.
- Always torque brake lines when installing.
