Antilock Brakes / Traction Control Systems

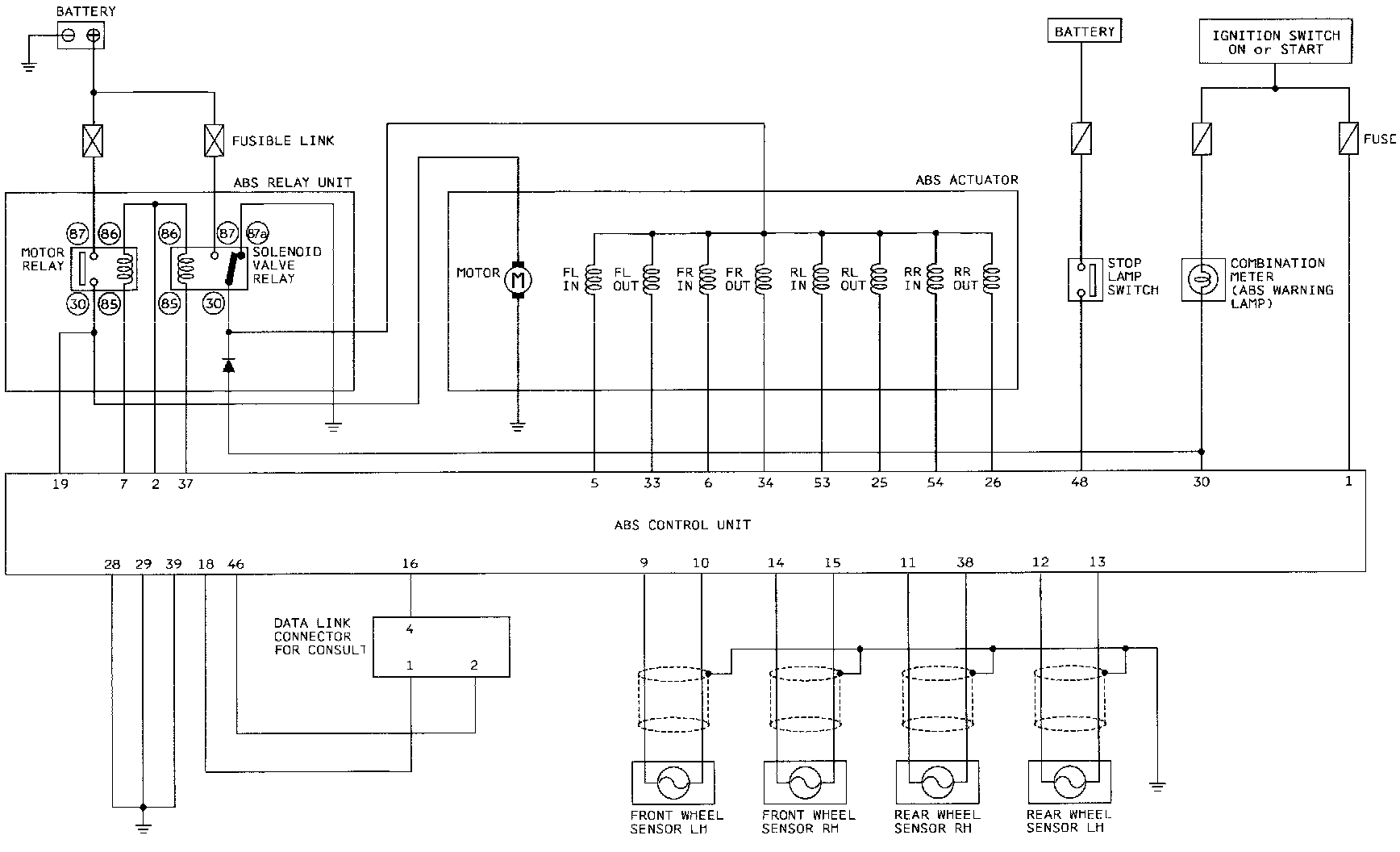

Schematic Diagram

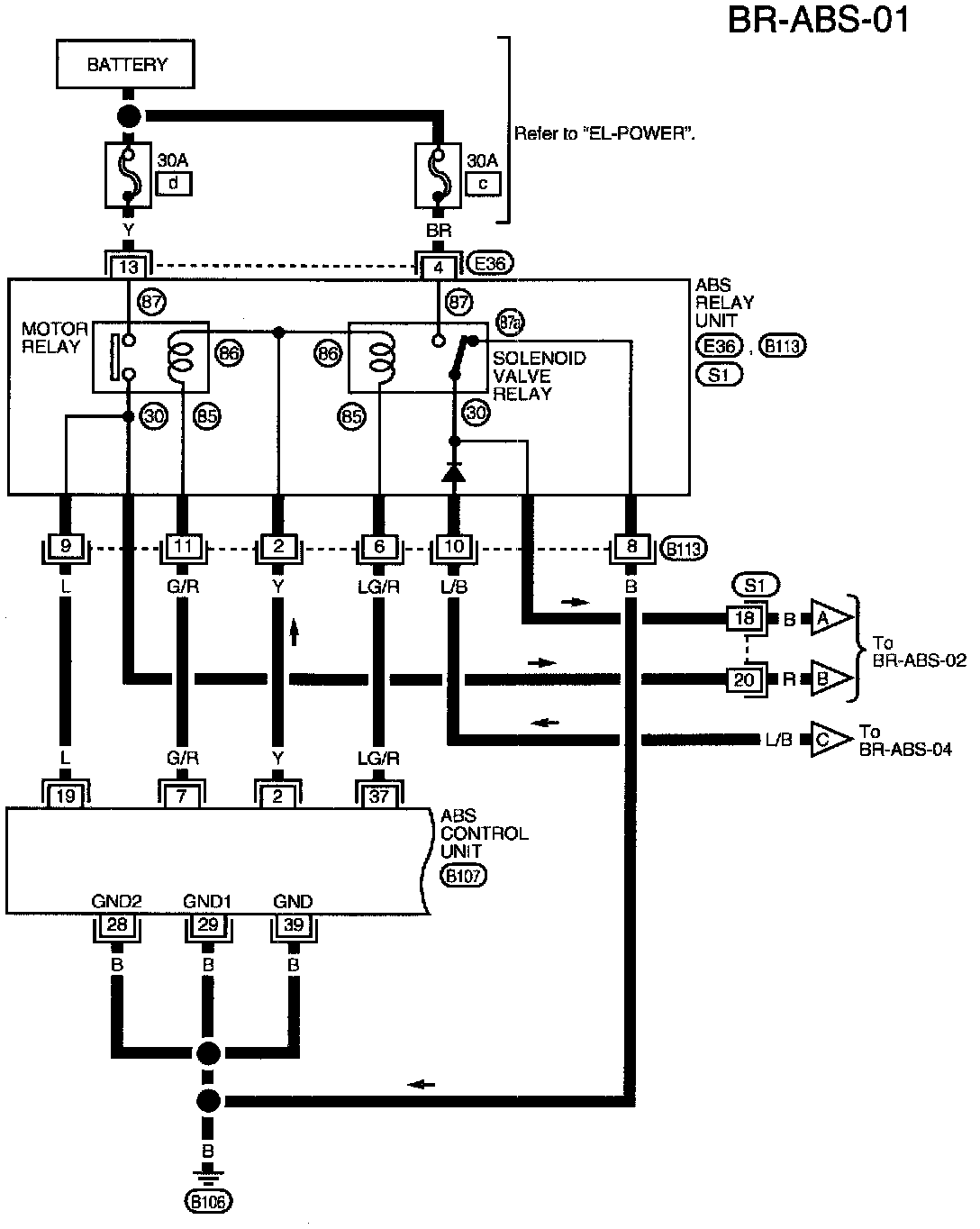

BR-ABS-01:

Part 1 Of 4
ABS Relay Unit
- Motor Relay
- Solenoid Valve Relay
ABS Control Unit

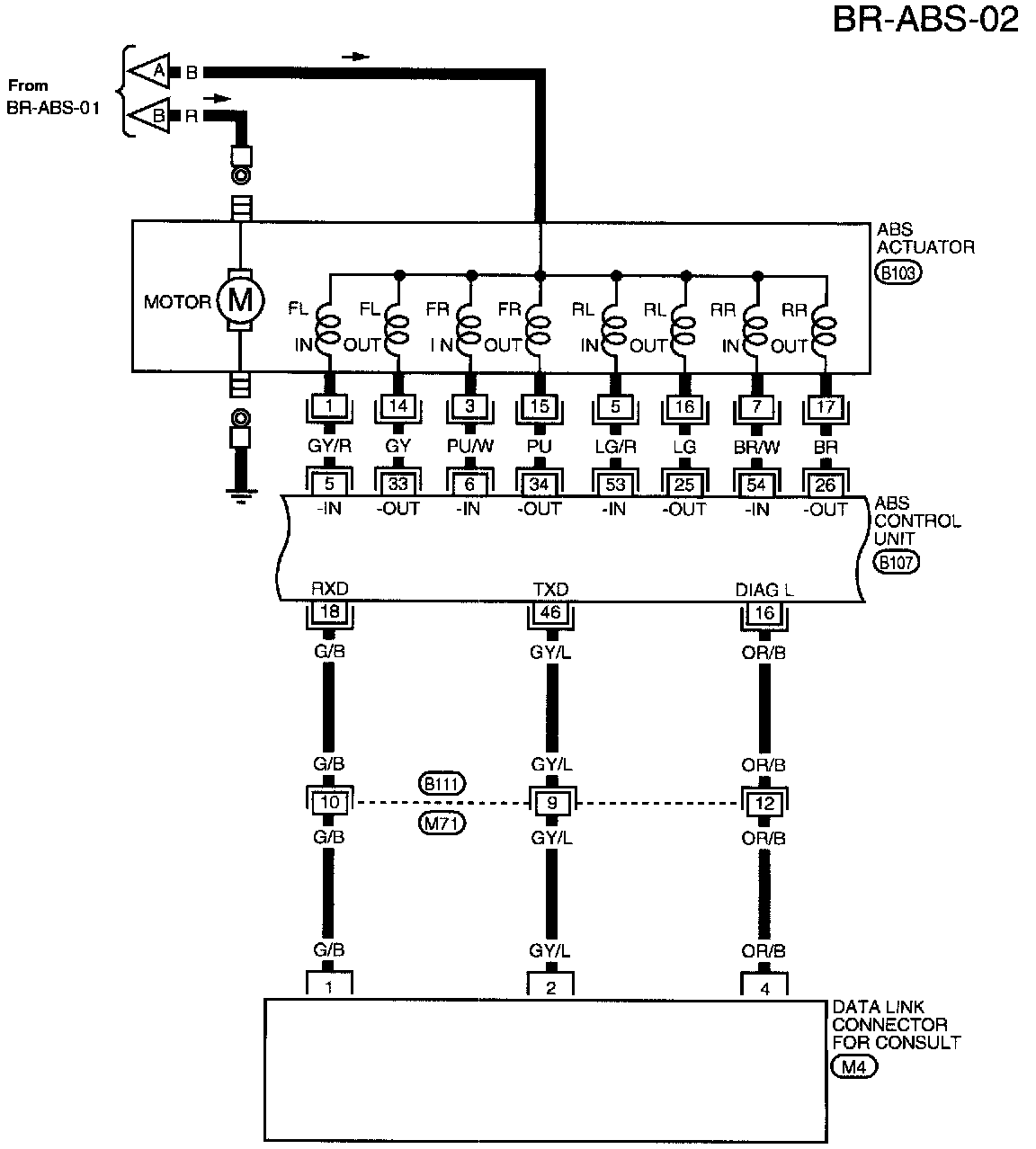

BR-ABS-02:

Part 2 Of 4
ABS Actuator
ABS Control Unit
Data Link Connector

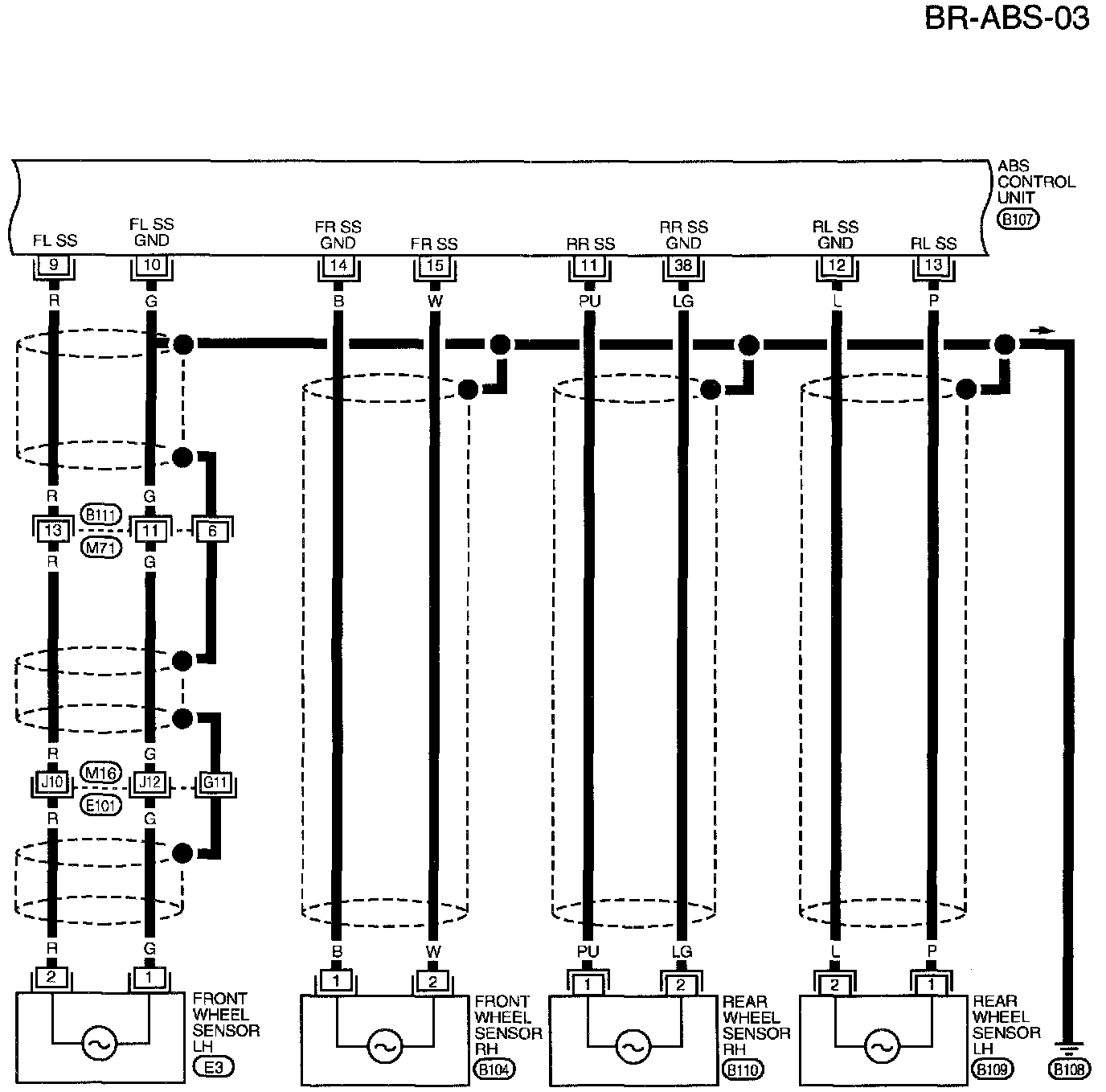

BR-ABS-03:

Part 3 Of 4
ABS Control Unit
Front Wheel Sensor LH
Front Wheel Sensor RH
Rear Wheel Sensor RH
Rear Wheel Sensor LH

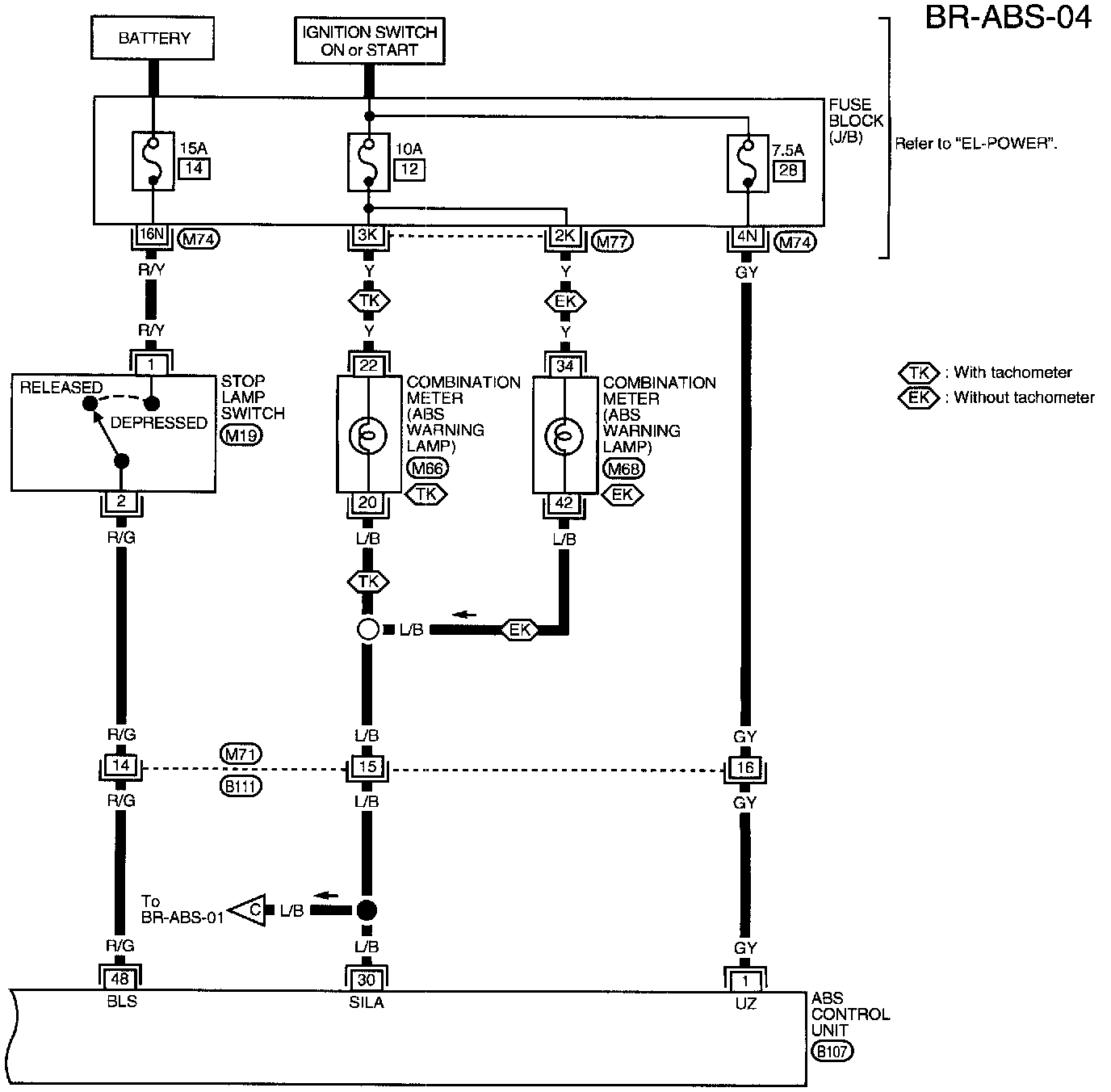

BR-ABS-04:

Part 4 Of 4
ABS Control Unit
Combination Meter (ABS Warning Lamp)
Fuse Block (J/B)
Stop Lamp Switch














Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement
