Brake Warning Indicator: Locations

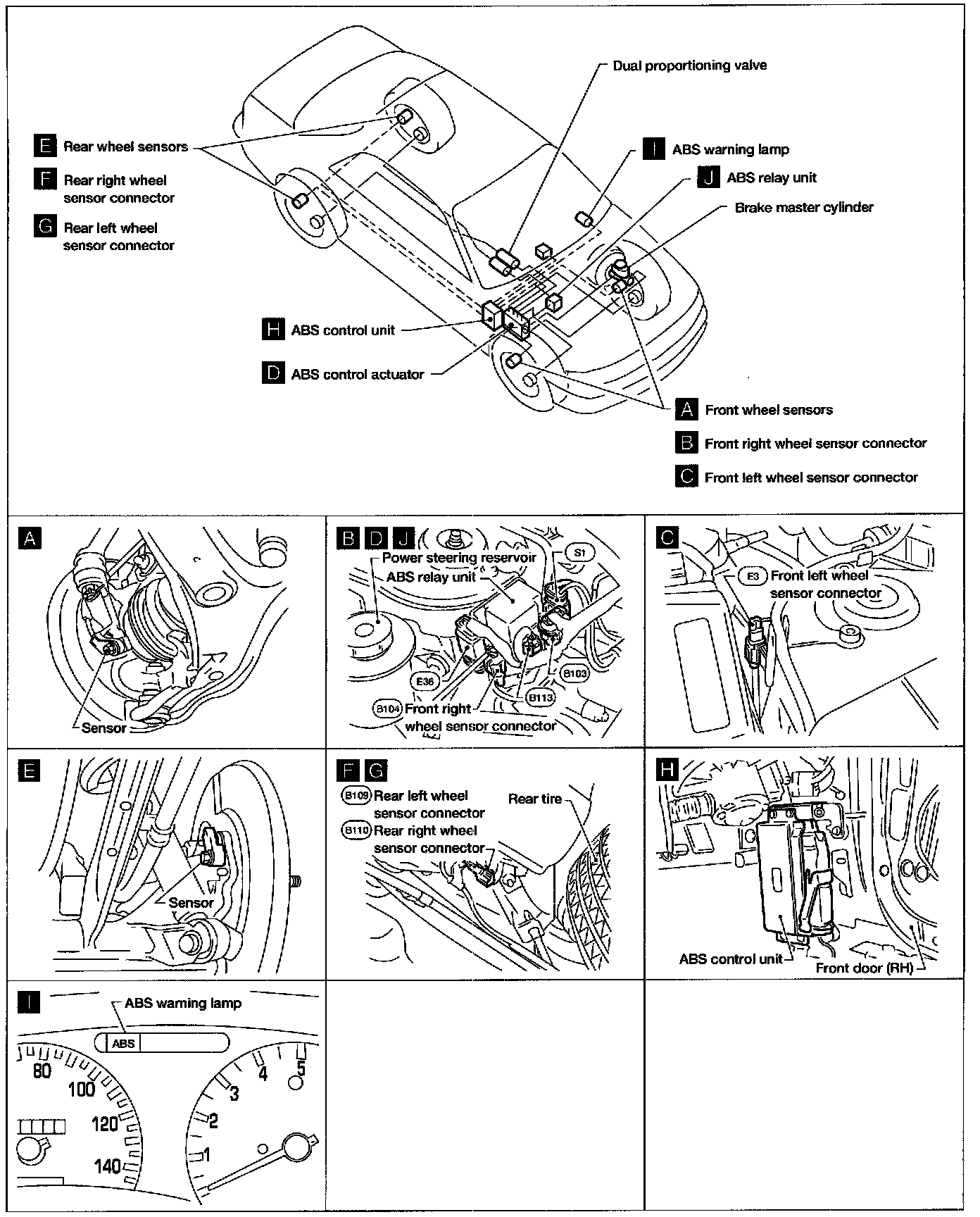

Anti-Lock Brake System components





Component Parts and Harness Connector Location
