Speedometer Head: Testing and Inspection

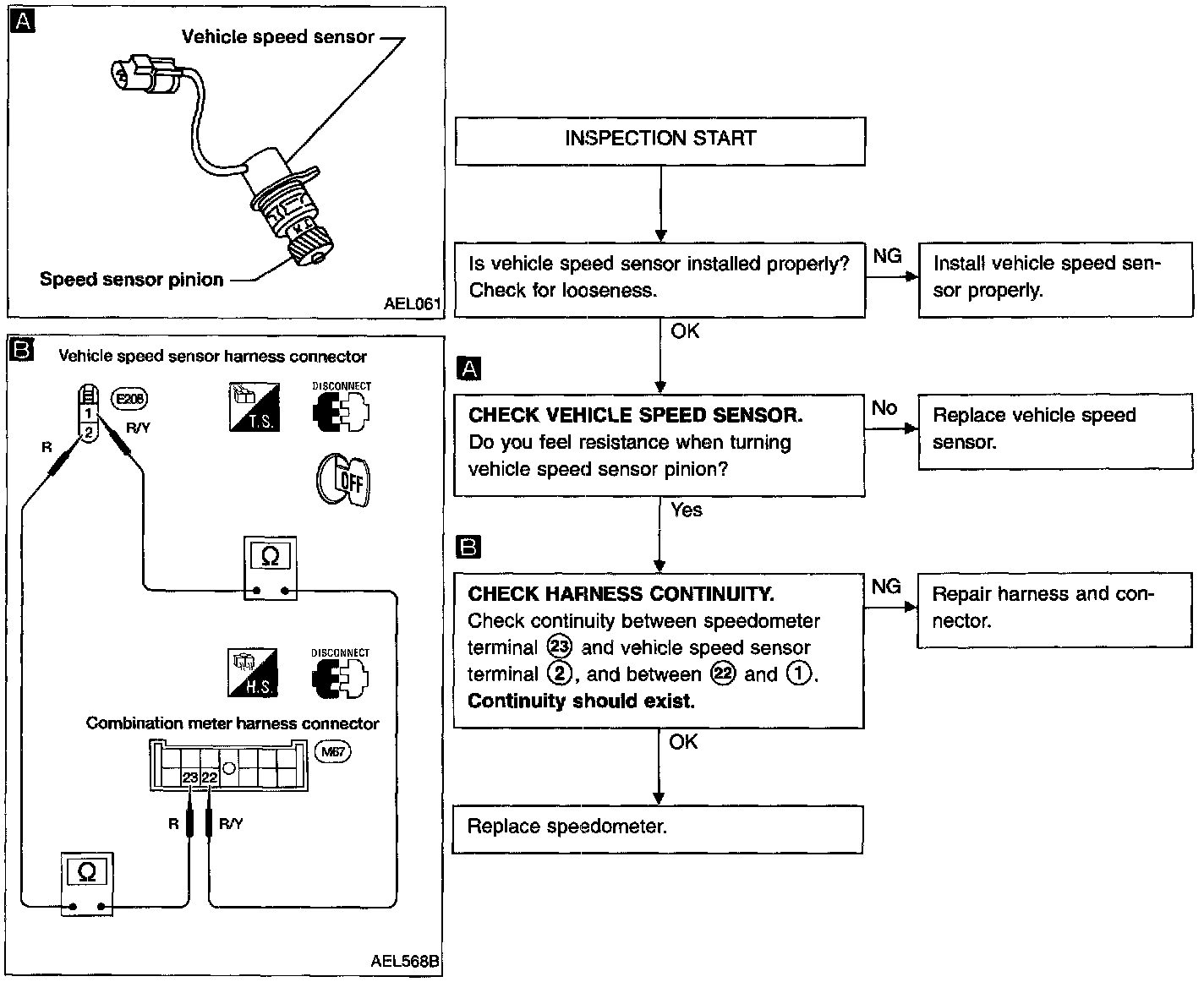

Inspection/Speedometer And Vehicle Speed Sensor (With Tachometer)





SYMPTOM: Speedometer stays at 0 kph (0 mph)





SYMPTOM: Speedometer indication flutters.

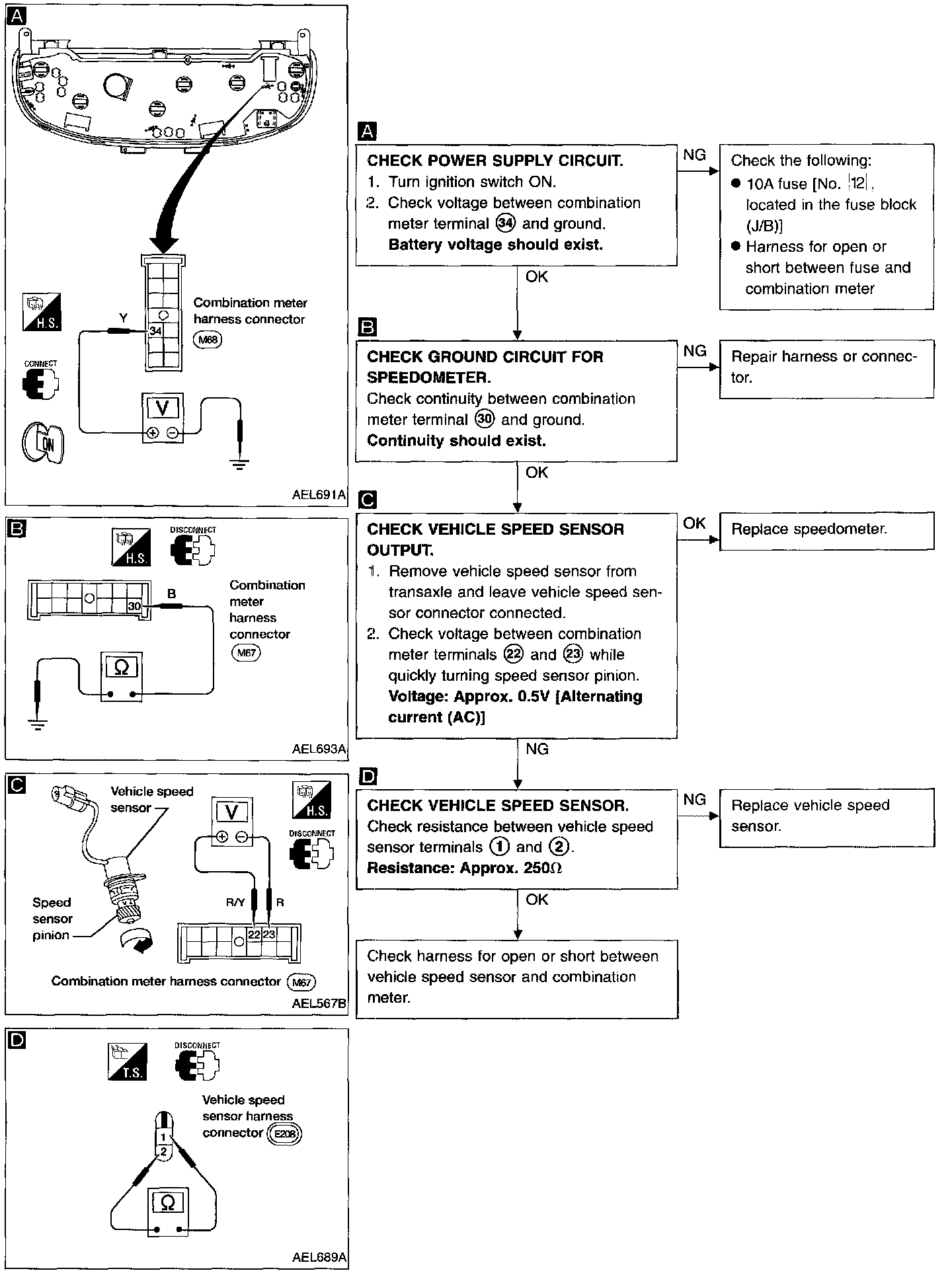

Inspection/Speedometer And Fuse





SYMPTOM: Speedometer does not go back to 0 kph (0 mph)

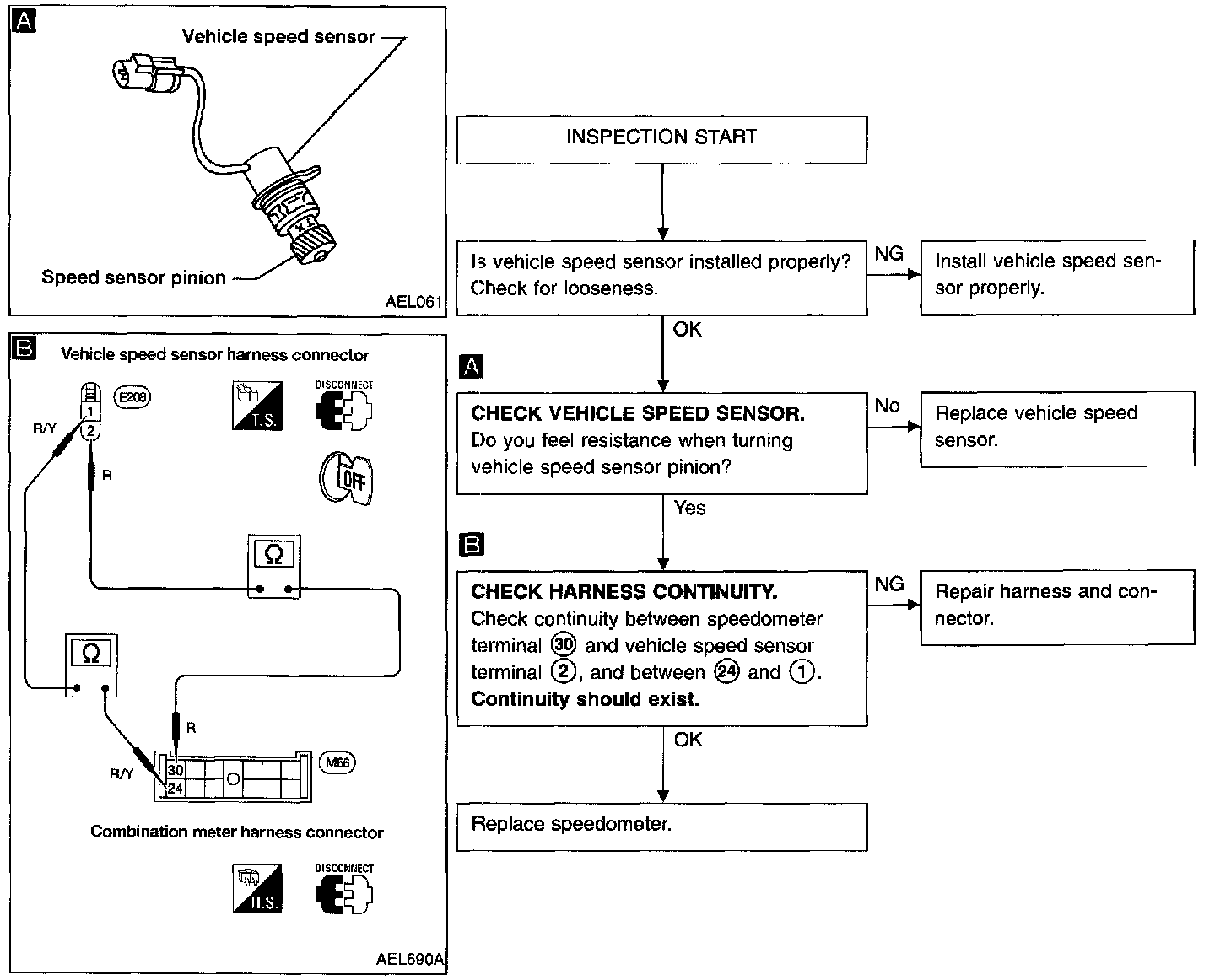

Inspection/Speedometer And Vehicle Speed Sensor (Without Tachometer)





SYMPTOM: Speedometer stays at 0 kph (0 mph)





SYMPTOM: Speedometer indication flutters.


Inspection/Speedometer And Fuse





SYMPTOM: Speedometer does not go back to 0 kph (0 mph)
