Temperature Gauge: Testing and Inspection

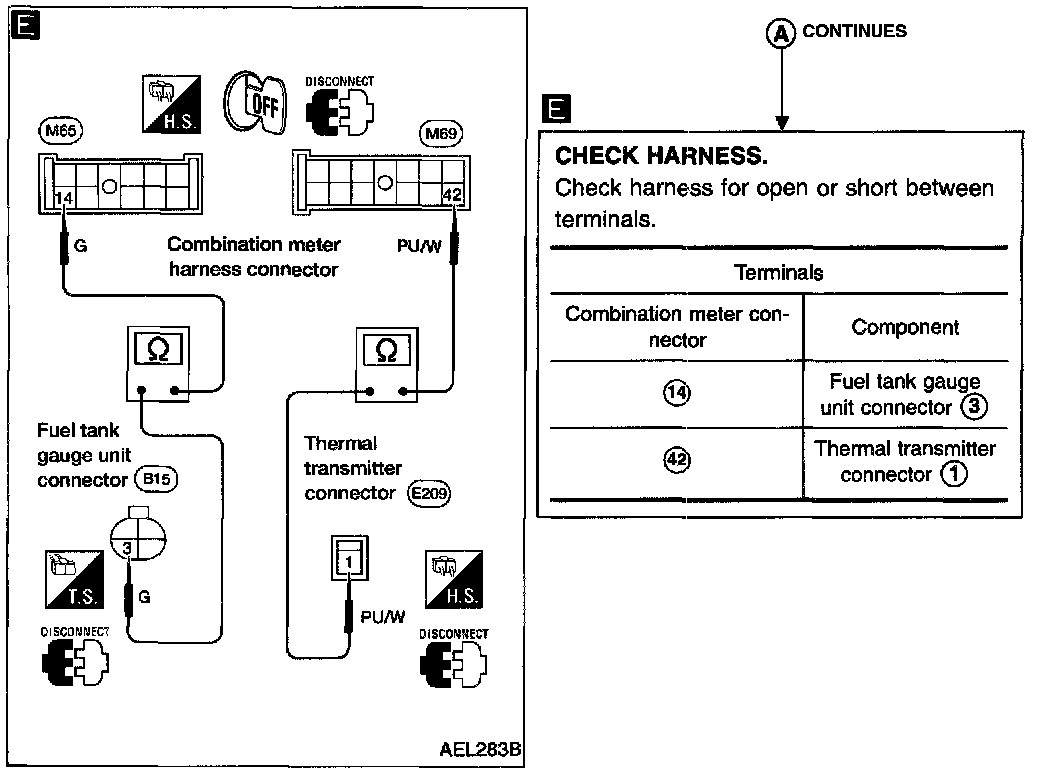

Inspection of the Fuel Gauge And/Or Water Temperature Gauge (With Tachometer)

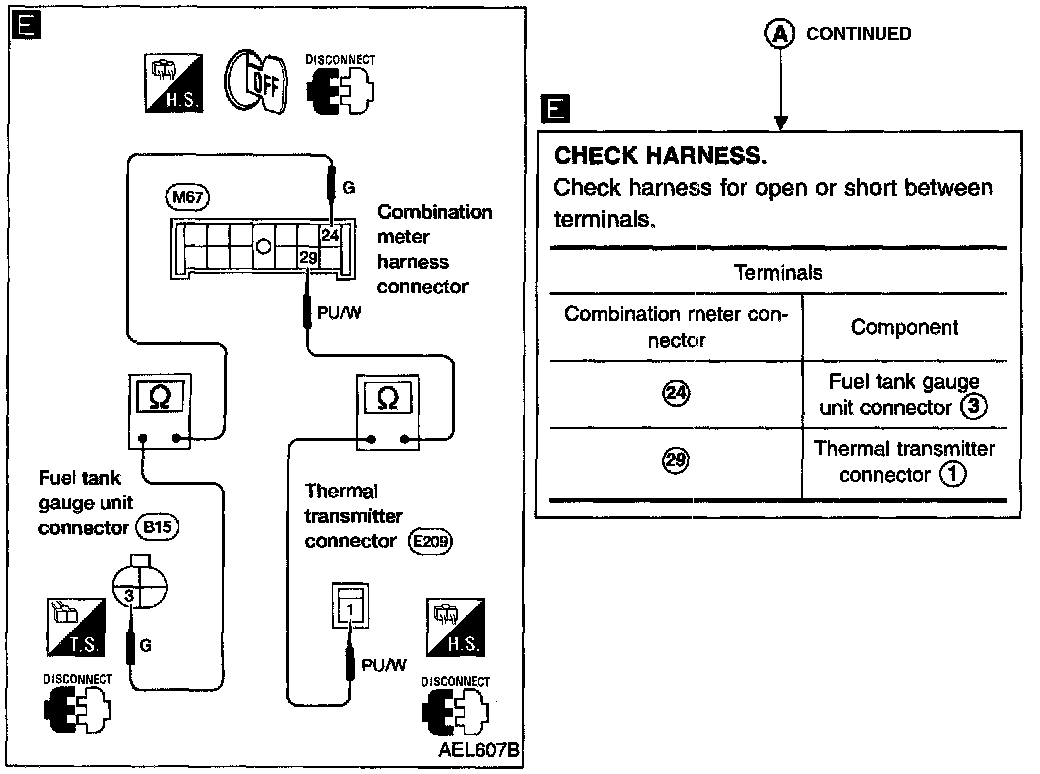

Inspection of the Fuel Gauge And/Or Water Temperature Gauge (Without Tachometer)
