Interior - Squeaks and Rattles: Overview

Classification:
BT99-023

Reference:
NTB99-042

Date:
July 15, 1999

1995-99 SENTRA/200SX INTERIOR SQUEAK AND RATTLE REPAIR

APPLIED VEHICLES:
1995-99 Sentra/2OOSX

SERVICE INFORMATION

If a 1995-99 Sentra/200SX exhibits squeak and rattle noise(s), use the repairs in this bulletin to resolve the incident(s).

CUSTOMER WORKSHEET

For a copy of the Customer Diagnostic Worksheet, refer to the Squeak and Rattle Diagnostic Worksheet section in this bulletin. This worksheet is used to help duplicate, identify and isolate squeaks and rattles.

SERVICE PROCEDURE

FRONT AREA, UPPER (DASHBOARD, LOWER WINDSHIELD)

The front area, upper includes: Dash pad and instrument cluster, dash internal structure and components, windshield to dash interface area, glove box, audio and HVAC controls and vents.

For the procedures to identify and repair squeaks and rattles related to these areas, refer to the Front Area, Upper section in this bulletin.

UPPER AREA (HEADLINER, UPPER WINDSHIELD, SUNROOF)

The upper area includes: Roof, A, B, C, D pillars and trim, sun visors, electrical control panels in headliner or visors and pillar mounted seat belt retractors.

For the procedures to identify and repair squeaks and rattles related to these areas, refer to the Upper Area section in this bulletin.

REAR AREA, LOWER (DOOR AREA, SEATS, CENTER CONSOLE, REAR GLASS, HATCHES, FLOOR)

The rear area, lower includes: Door panels, glass and door mounted controls, front and rear seat assemblies, center console, carpeted areas, parcel shelf, interior mounted stop lamp.

For the procedures to identify and repair squeaks and rattles related to these areas, refer to the Rear Area, Lower section of this bulletin.

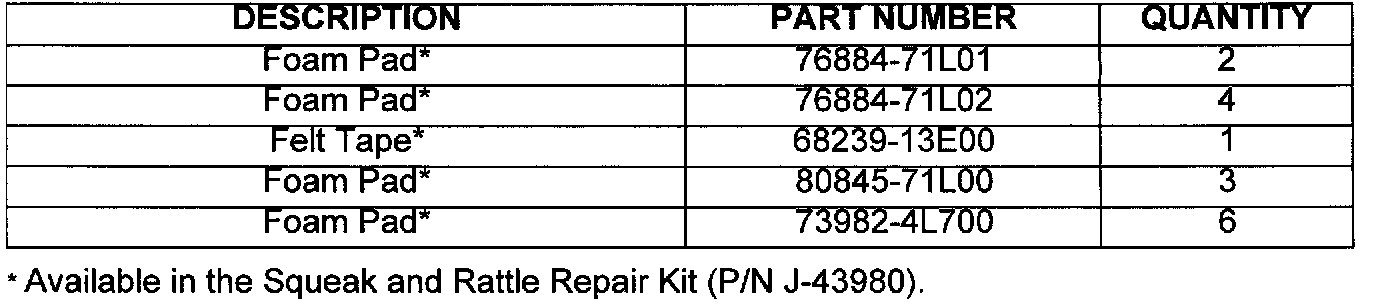

PARTS INFORMATION

CLAIMS INFORMATION

Please reference Nissan Claims Bulletin WB/98-021a and Section "UX - Squeak & Rattle Repairs" of the current Nissan "Warranty Flat Rate Manual" for complete details regarding policy and claims coding applicable to the repair of squeaks and rattles.

Expense Details:

Pro-rate the bulk "Squeak & Rattle Repairs" material(s) and claim only the amount that is actually used in the repair. Claim this amount using Expense Code: 022. Do not claim the repair material(s) part number(s) on the claim.
