Clutch

GENERAL SPECIFICATIONS





Clutch Control System

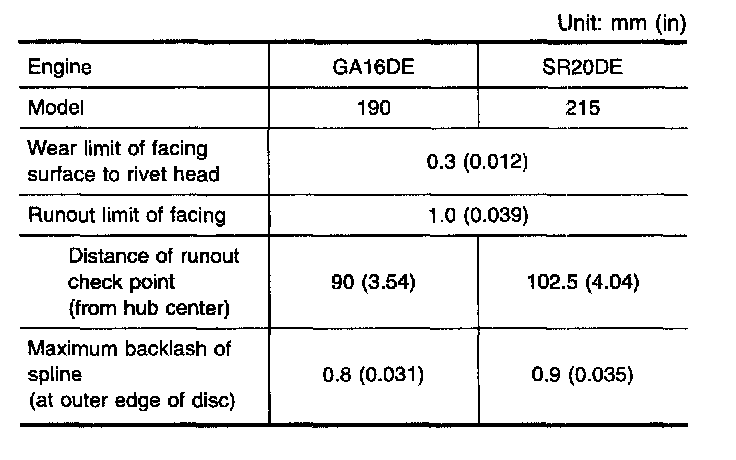

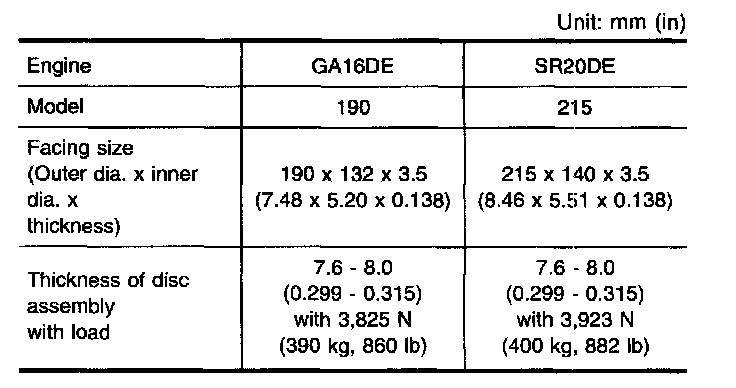

Clutch Disc

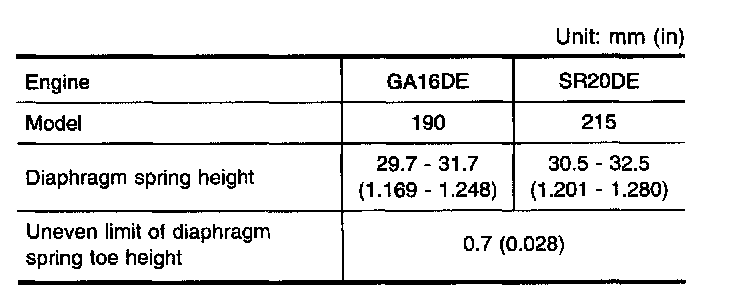

Clutch Cover

INSPECTION AND ADJUSTMENT

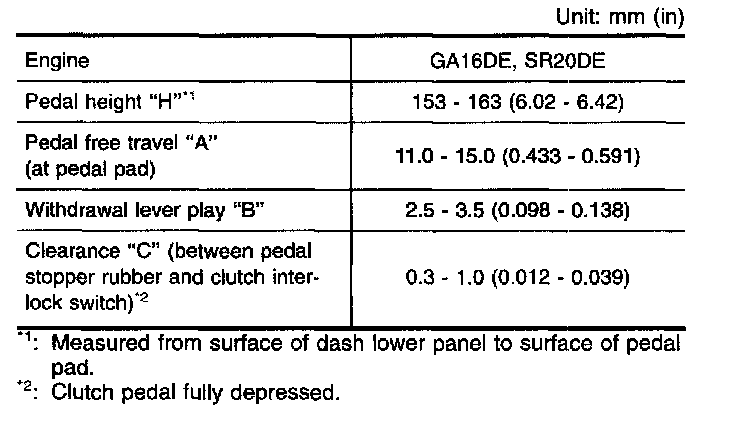

Clutch Pedal





Clutch Disc





Clutch Cover
