Blower Motor: Testing and Inspection

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR SYMPTOM:
- Blower motor does not rotate at all.

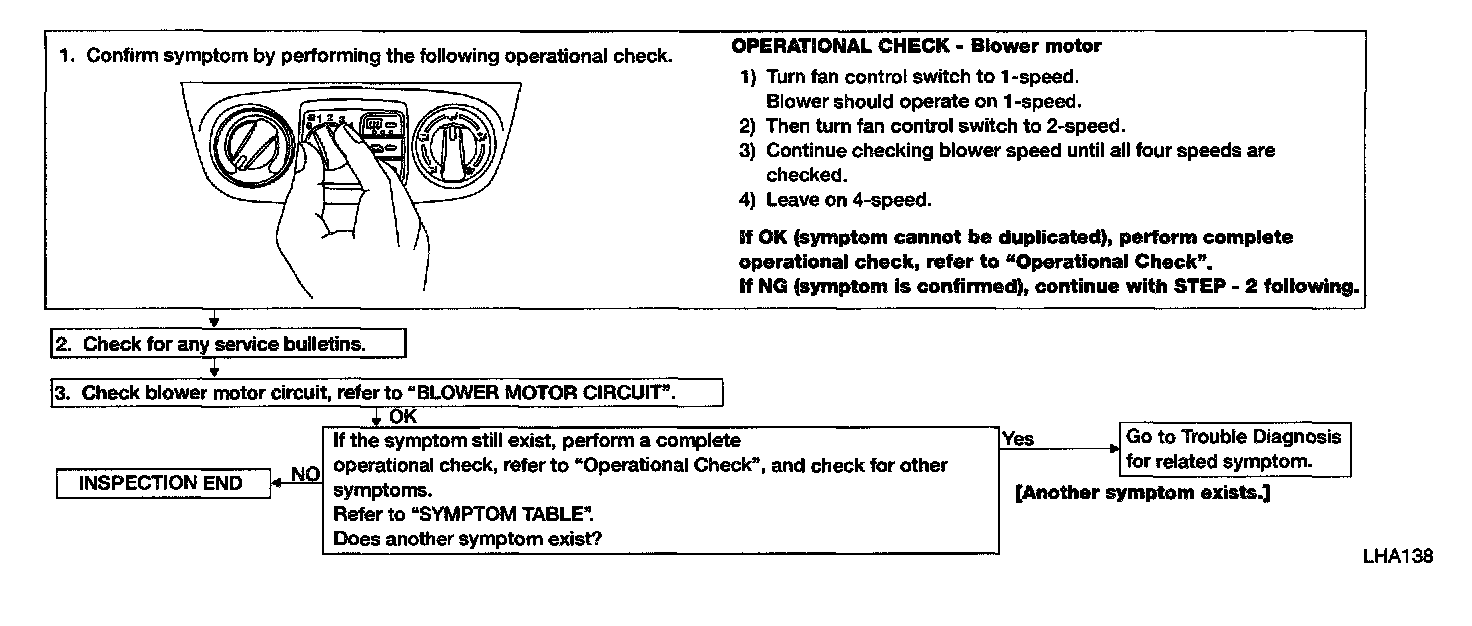

INSPECTION FLOW

Steps 1 - 2:

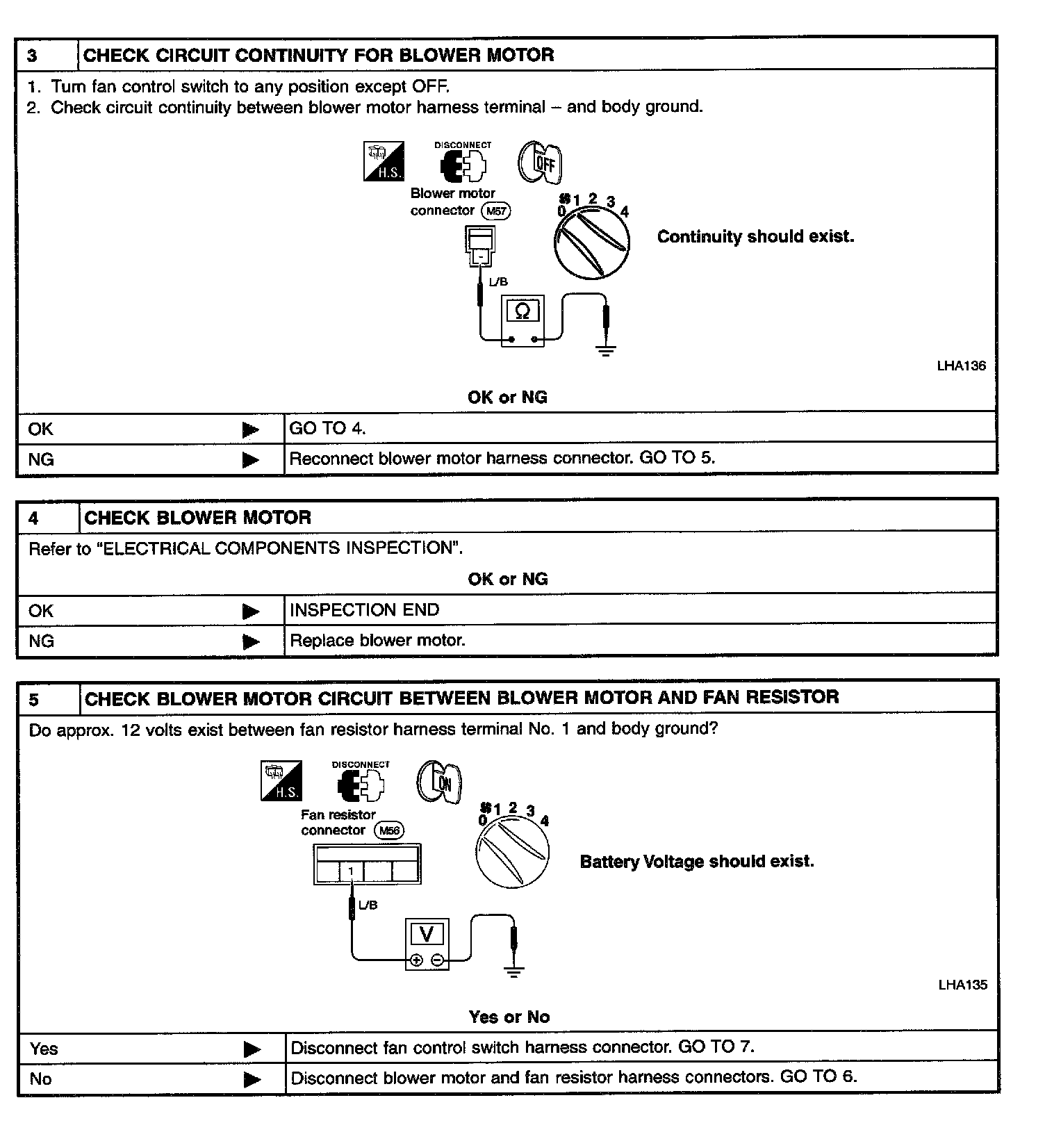

Steps 3 - 5:

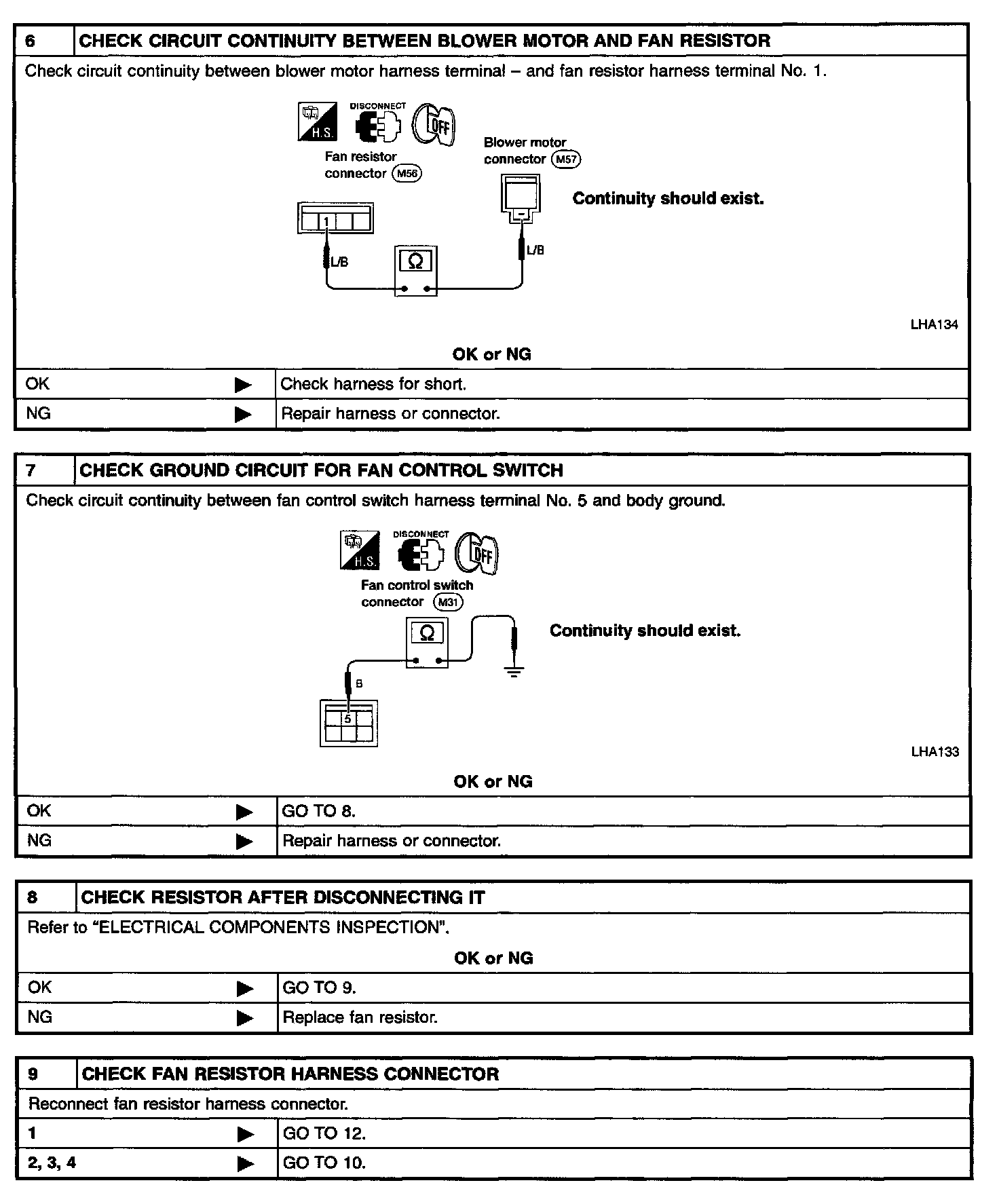

Steps 6 - 9:

Steps 10 - 12:

BLOWER MOTOR CIRCUIT SYMPTOM:
- Blower motor does not rotate.







ELECTRICAL COMPONENTS INSPECTION

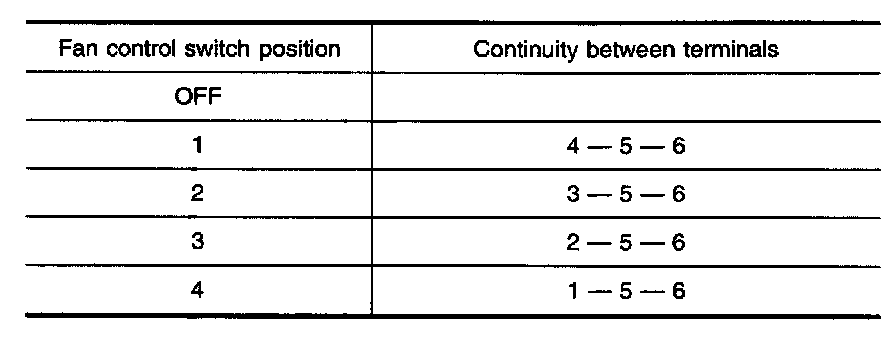

Fan Control Switch
Check continuity between terminals at each switch position.

Blower Motor
Confirm smooth rotation of the blower motor.
- Ensure that there are no foreign particles inside the intake unit.

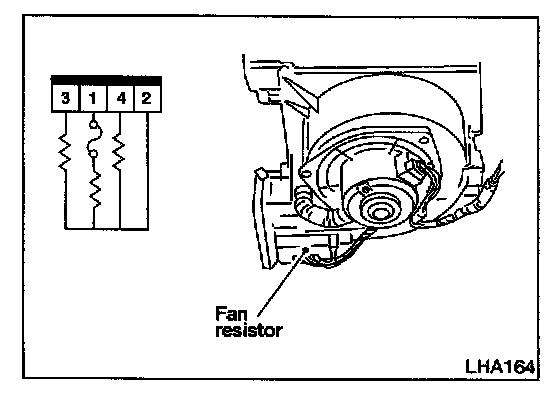

Fan Resistor
Check resistance between terminals.
