Fluid Pan, A/T

Components

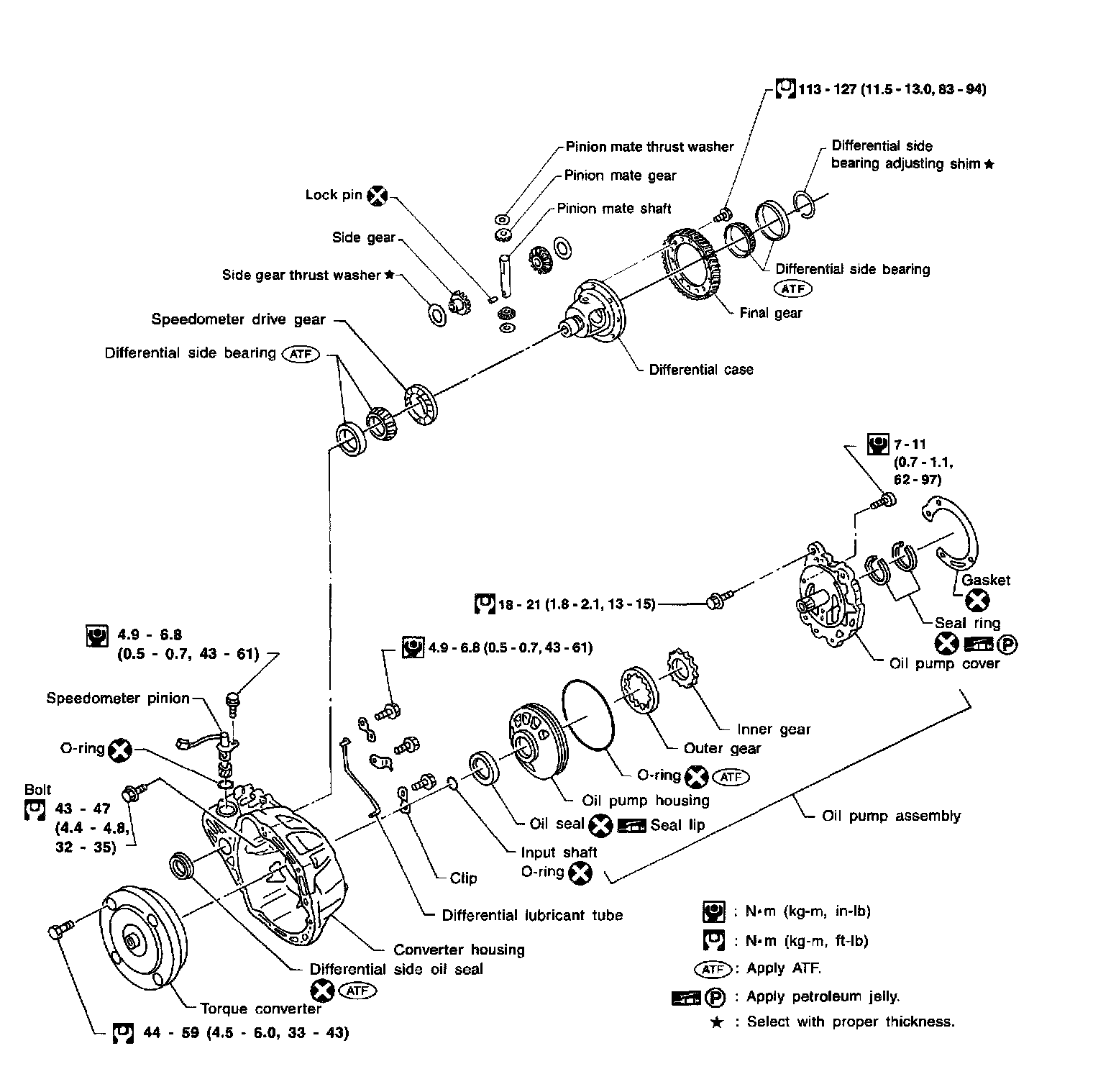

PART 1 of 3

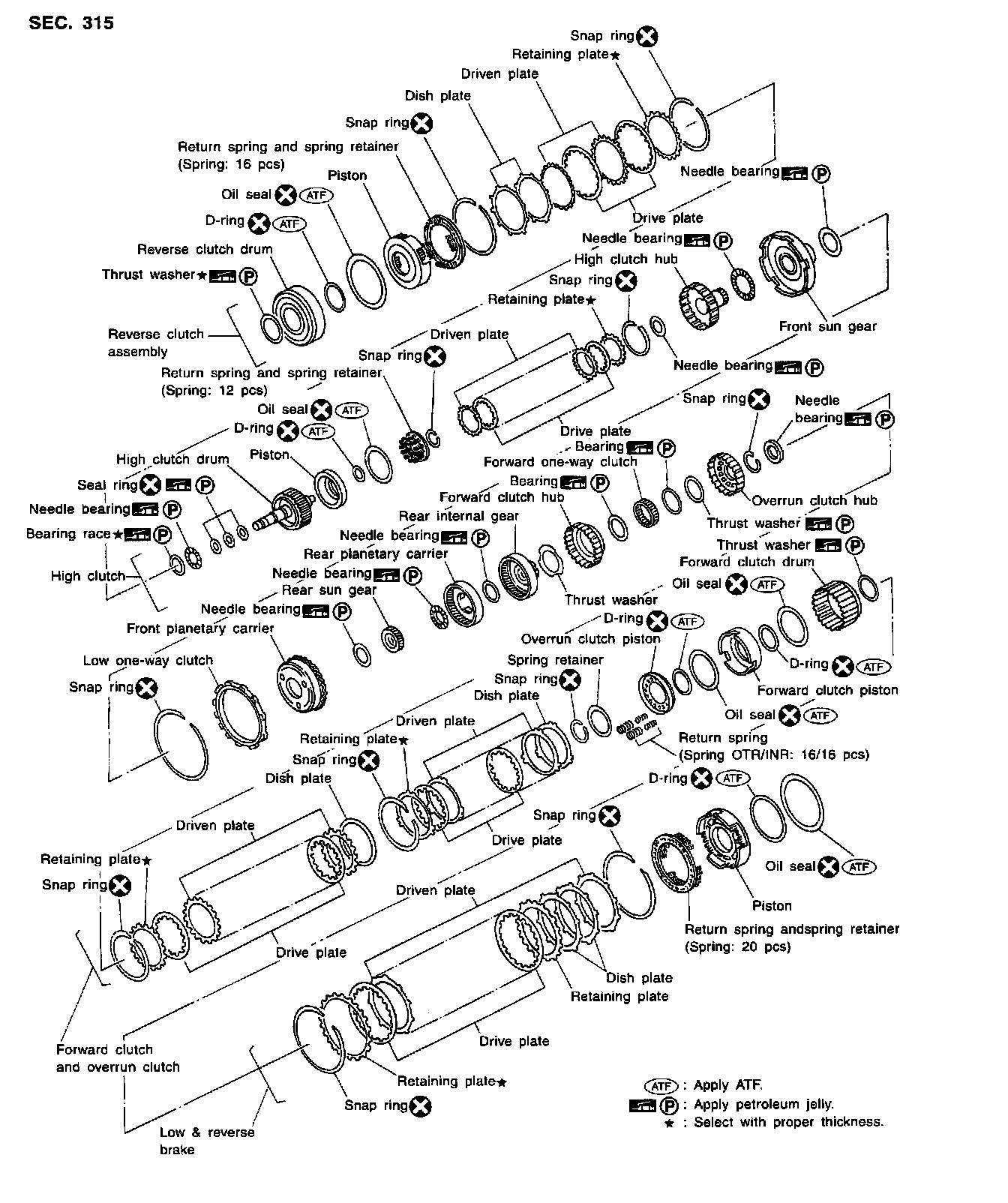

PART 2 of 3





PART 3 of 3

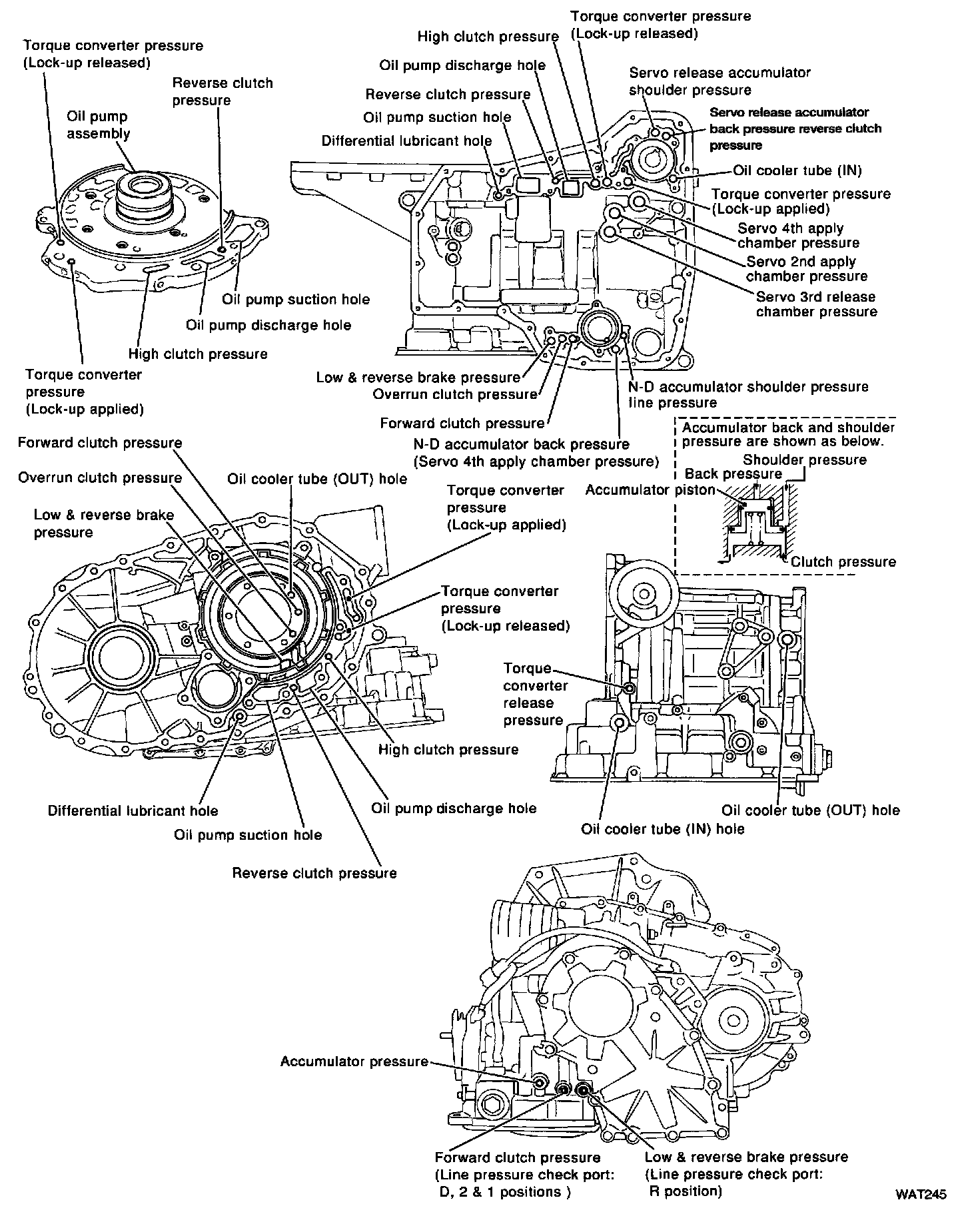

Oil Channel

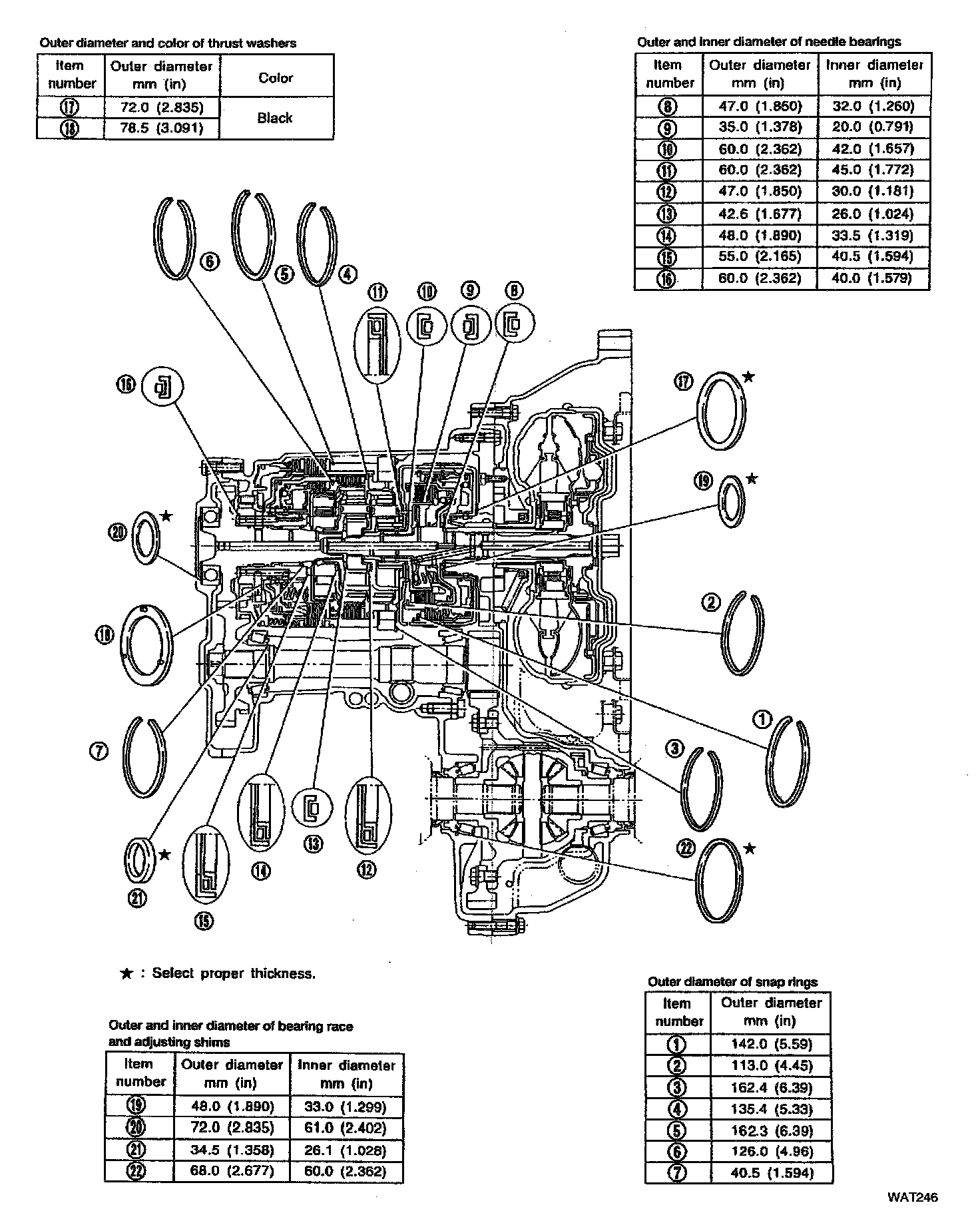

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings
