Blower Motor: Service and Repair

Blower Case and Motor




REMOVAL
1. Remove the glove box and mating trim.
2. Remove the cooling unit.

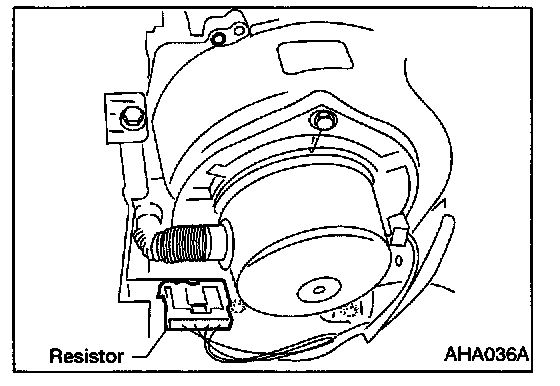

3. Disconnect the fan motor resistor.
4. Disconnect the fan motor.
5. Remove the blower case and motor.
6. Remove the three bolts and remove the motor from the blower case.

INSTALLATION
Installation is the reverse order of removal.

Recharge the A/C system.
