Blower Motor: Testing and Inspection

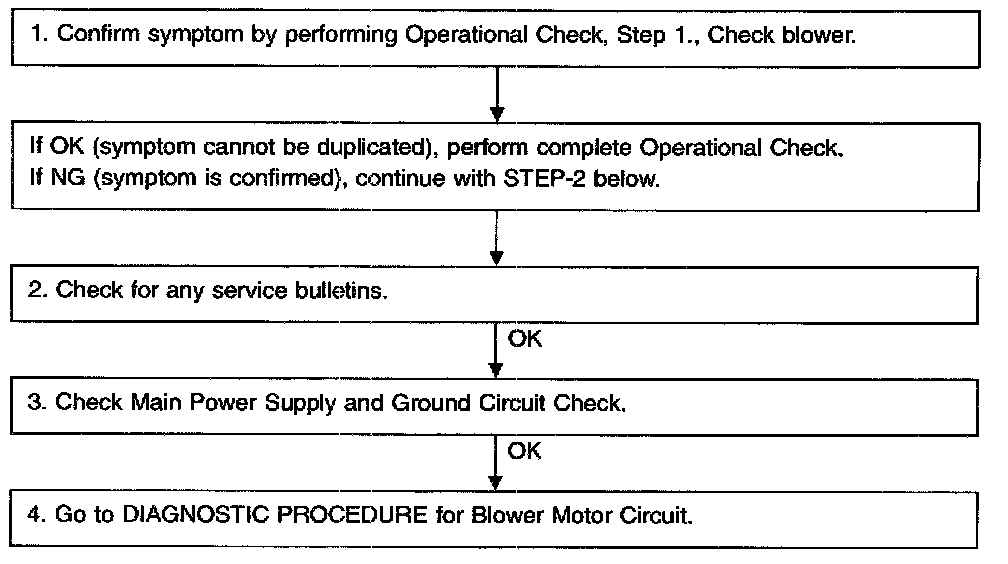

Inspection Flow:

SYMPTOM: Blower motor does not rotate.

Part 1:

Part 2:

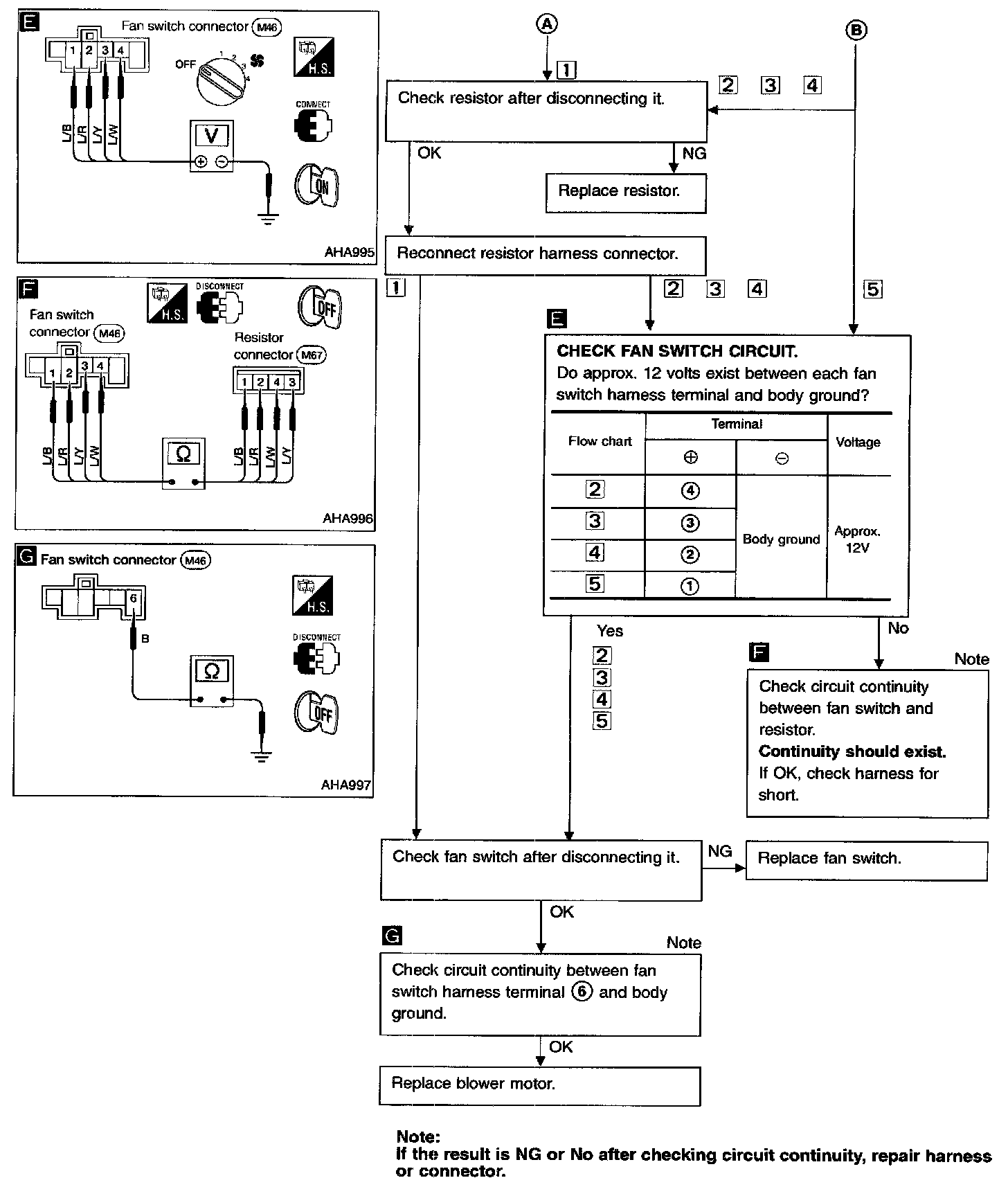

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

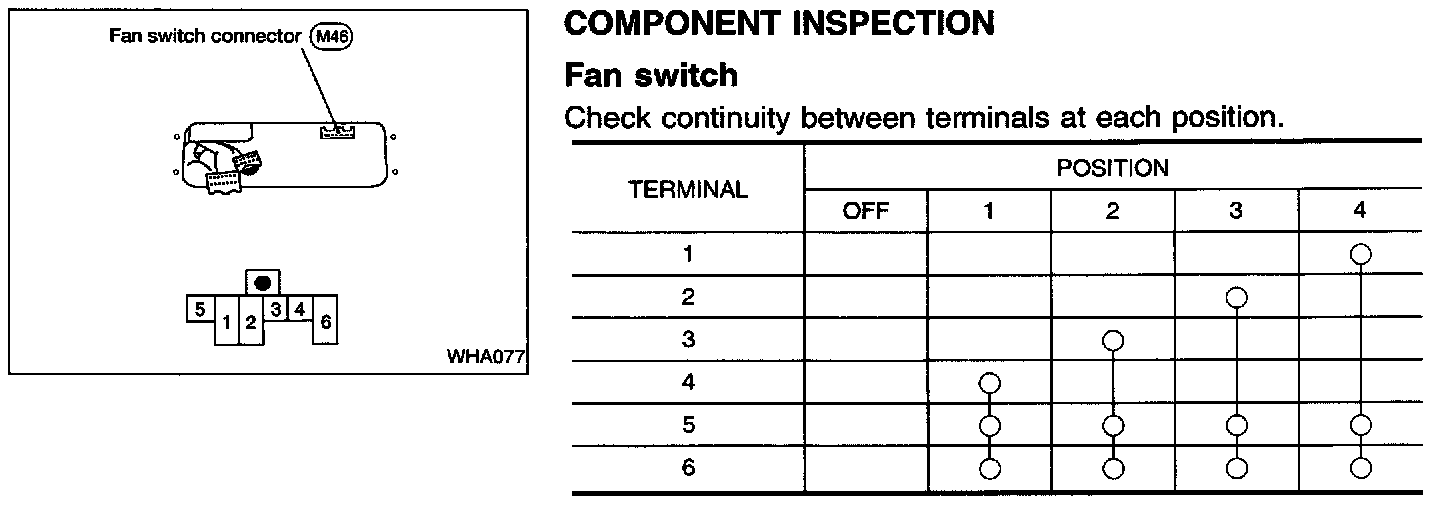

Fan Switch

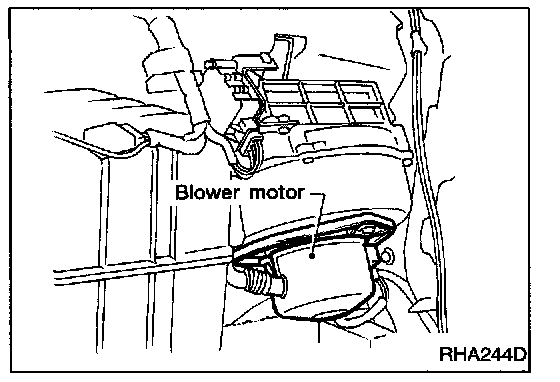

Blower motor
Confirm smooth rotation of the blower motor.
- Check that there are no foreign particles inside the intake unit.

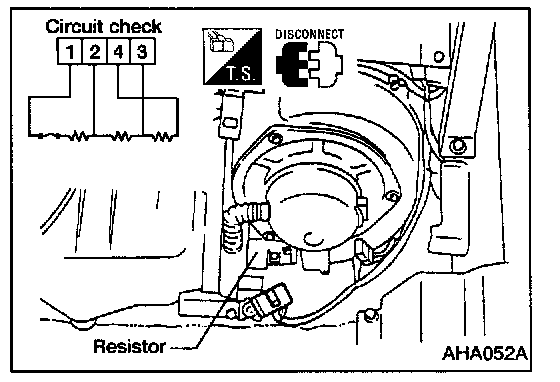

Blower resistor
Check continuity between terminals.
