Antilock Brakes / Traction Control Systems

Electrical Schematic:

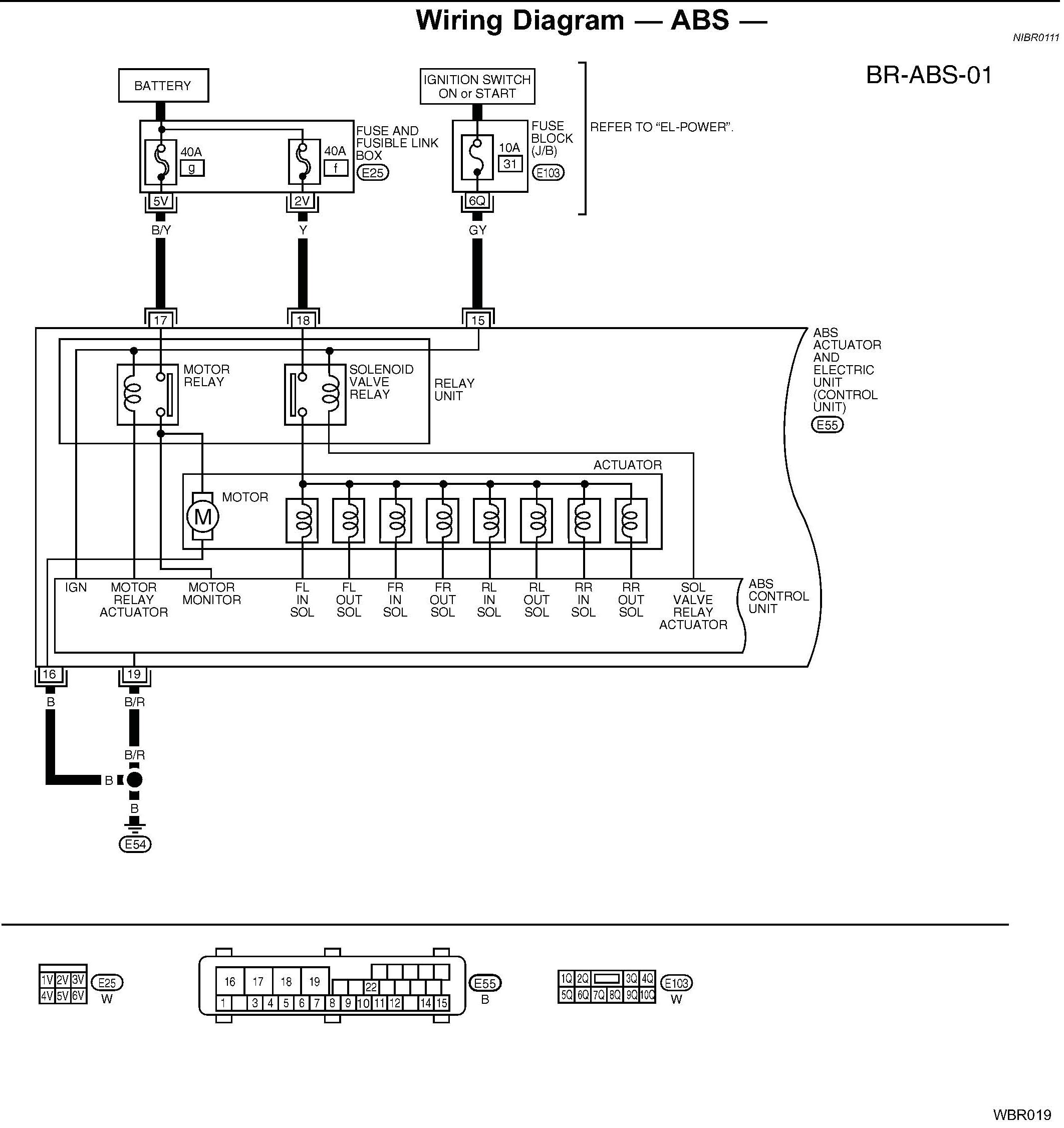

Part 1 Of 3:

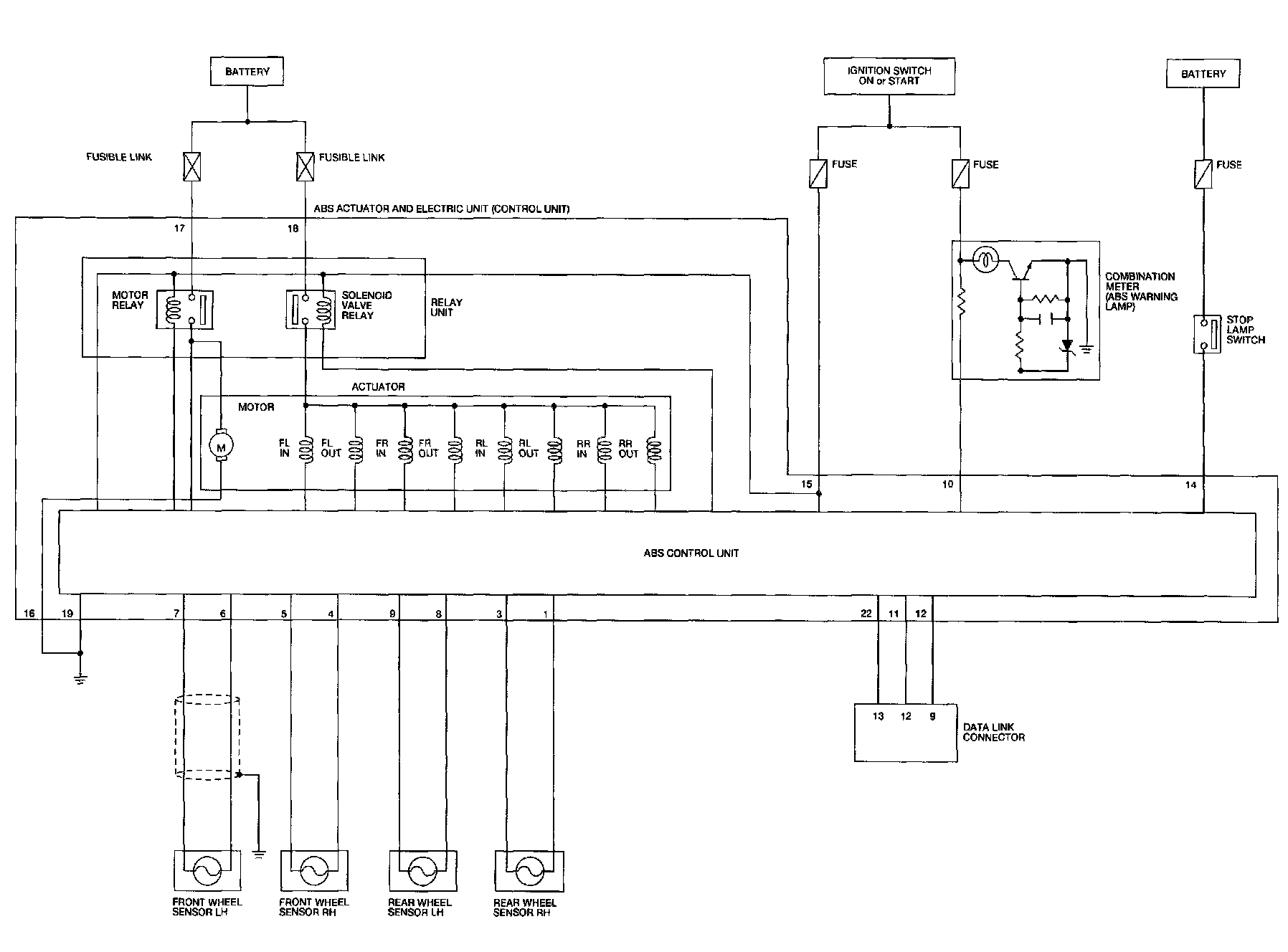

Part 2 Of 3:

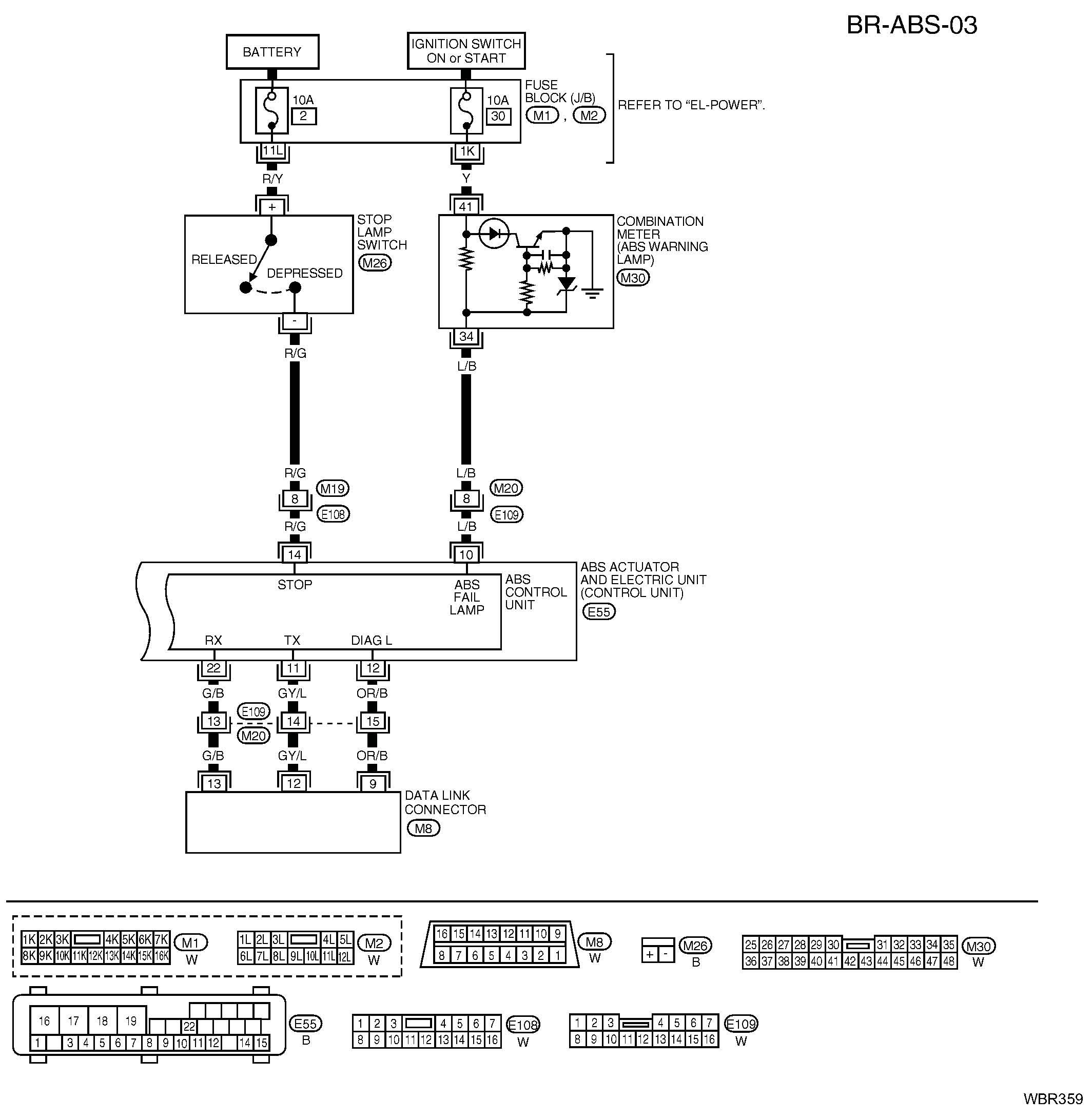

Part 3 Of 3:
