Garage Door Opener Transmitter: Testing and Inspection

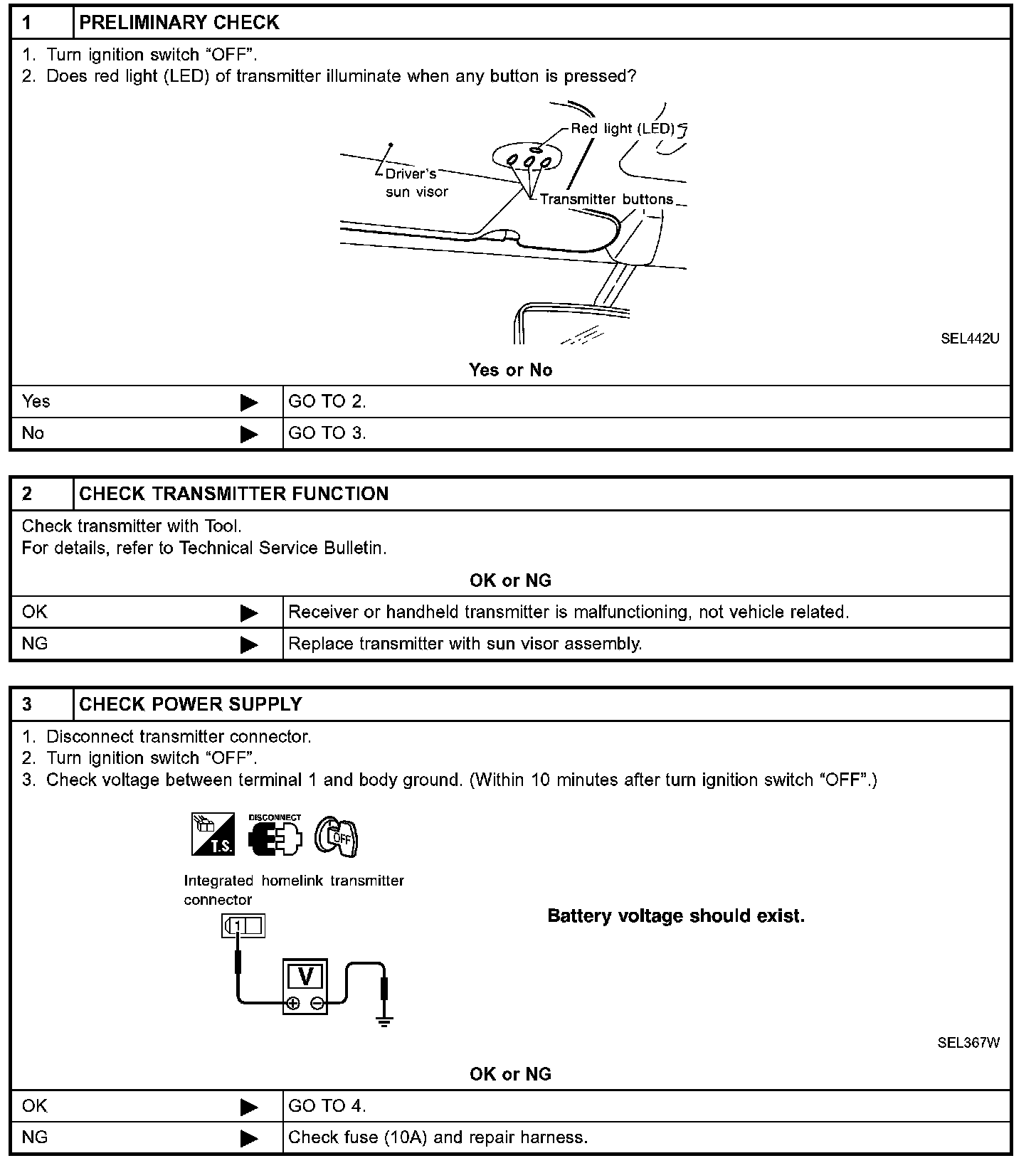

Step 1 - 3:

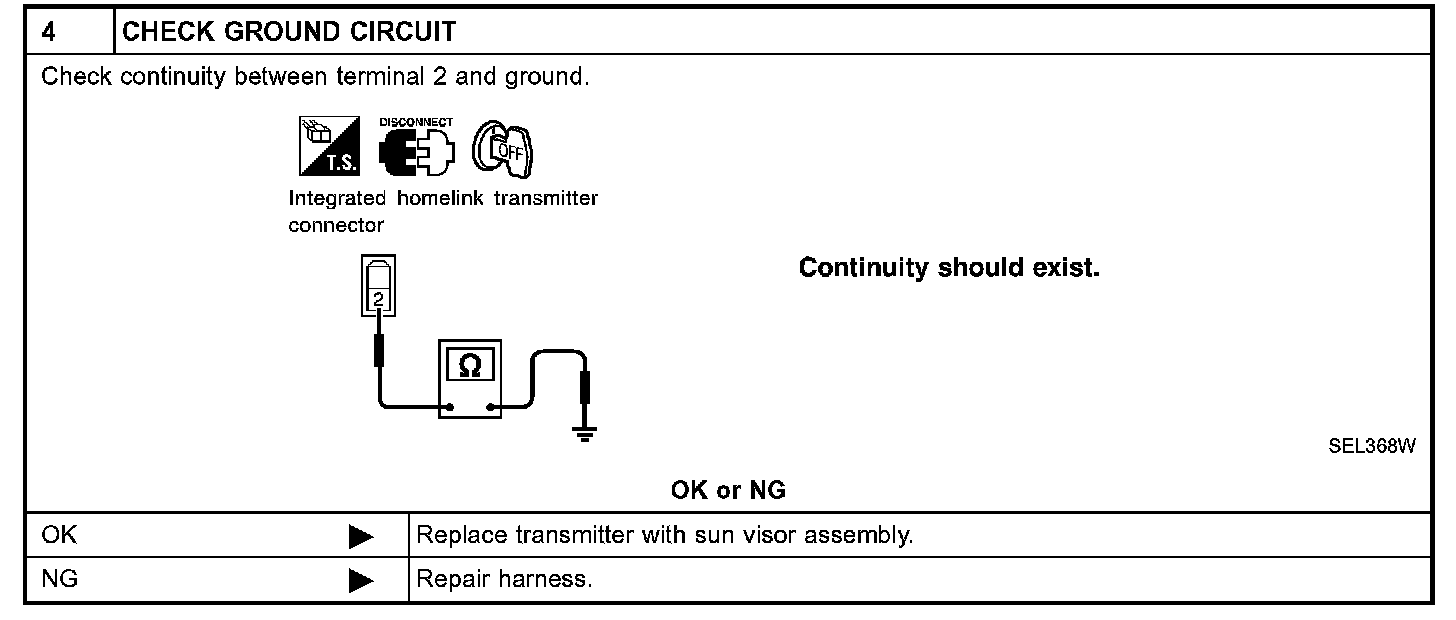

Step 4:

DIAGNOSTIC PROCEDURE

SYMPTOM: Transmitter does not activate receiver.
Before conducting the procedure given below make sure that system receiver (garage door opener etc.) operates with original hand-held transmitter. If NG receiver or hand-held transmitter is malfunctioning not vehicle related.
