Connector Views
>>
Steering
Steering

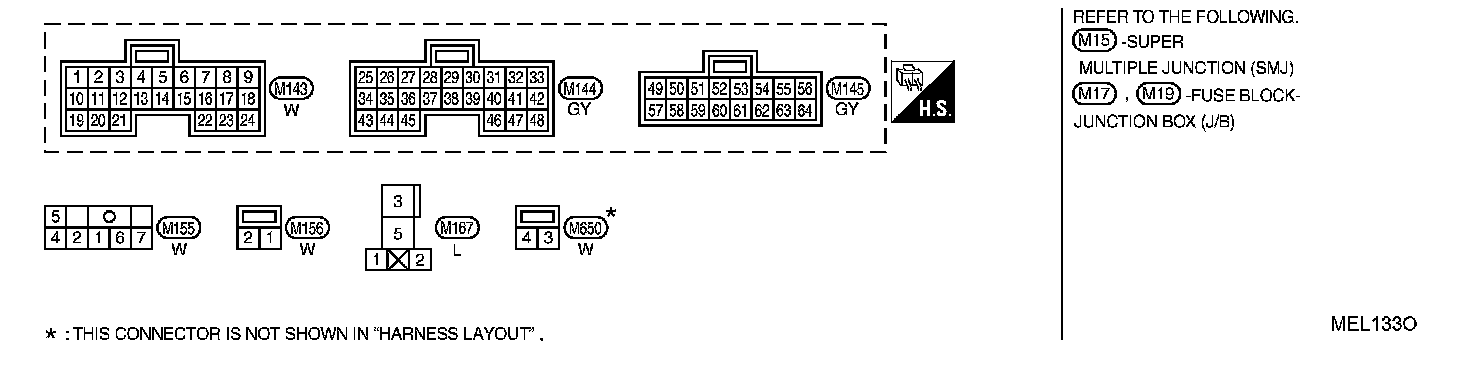

EL-H/STRG-01 Connector View:

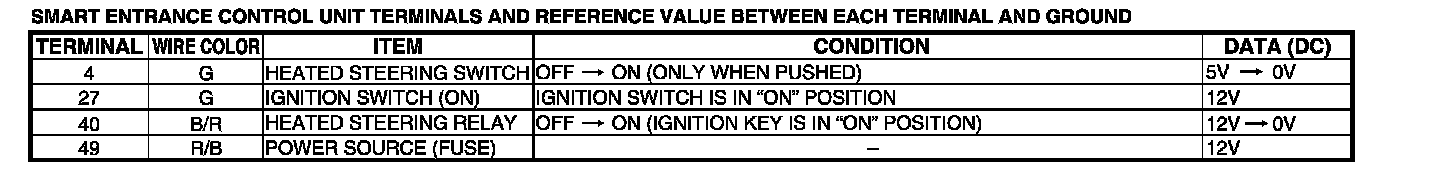

Smart Entrance Control Unit Terminals And Reference Value:
