Super Multiple Junction (SMJ)
Super Multiple Junction (SMJ)

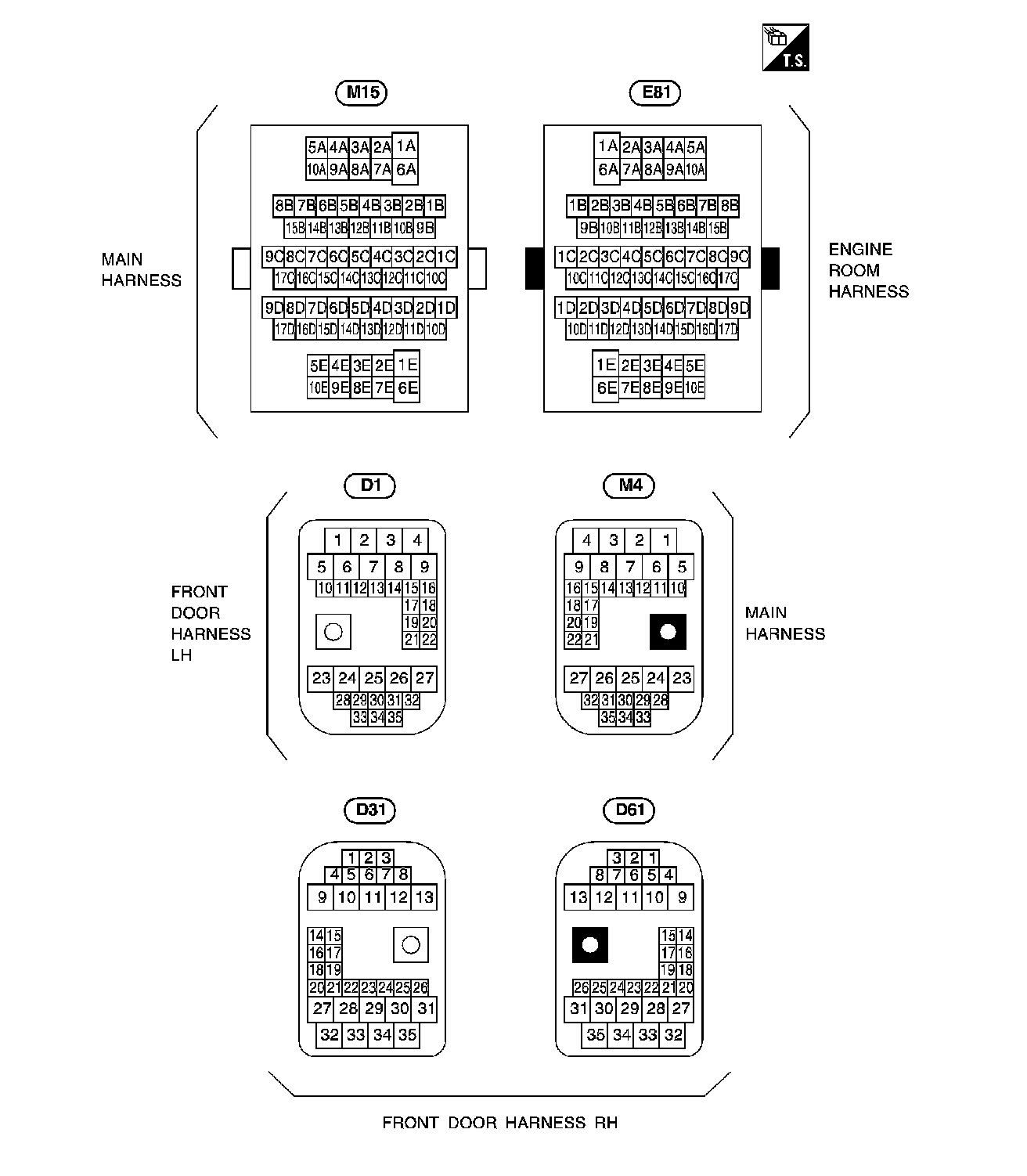

Super Multiple Junction(SMJ) Terminal Arrangement:
