Headlamp: Adjustments

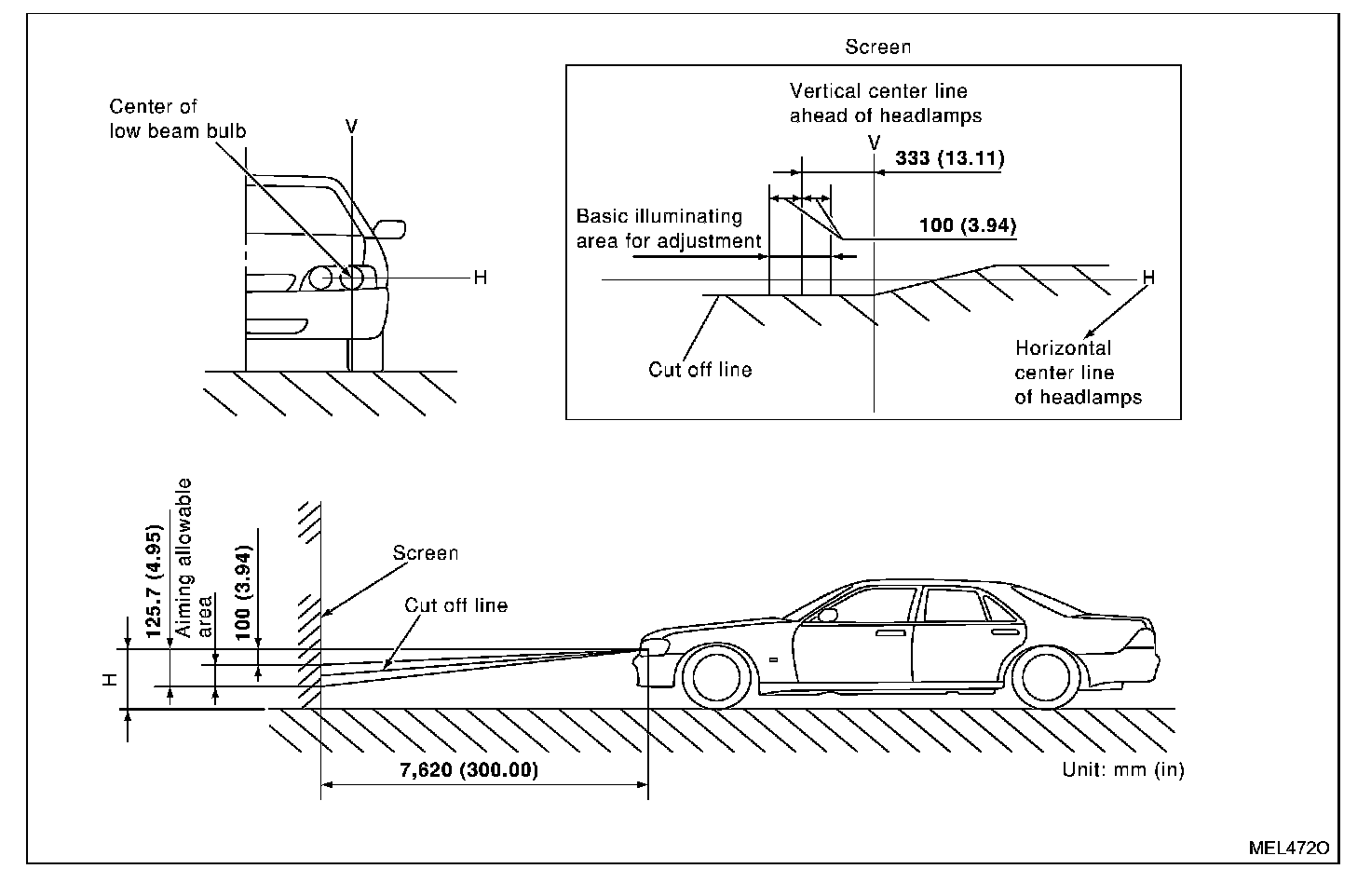

USA/CANADAAiming Adjustment
LOW BEAM
1. Turn headlamp low beam on.
2. Use adjusting screw to perform aiming adjustment.
- First tighten the adjusting screw all the way and then make adjustment by loosening the screw.
Aiming Adjustment
LOW BEAM
1. Turn headlamp low beam on.
2. Use adjusting screw to perform aiming adjustment.
- First tighten the adjusting screw all the way and then make adjustment by loosening the screw.
