Cooling System - Water Pump O-Ring Design Change

Classification:
EM02-003

Reference:
NTB02-050

Date:
April 23, 2002

VQ ENGINE WATER PUMP 0-RING

APPLIED VEHICLES:
2002 Pathfinder (R50)
2002 Maxima (A33)
2002 Altima (L31)

APPLIED DATE:

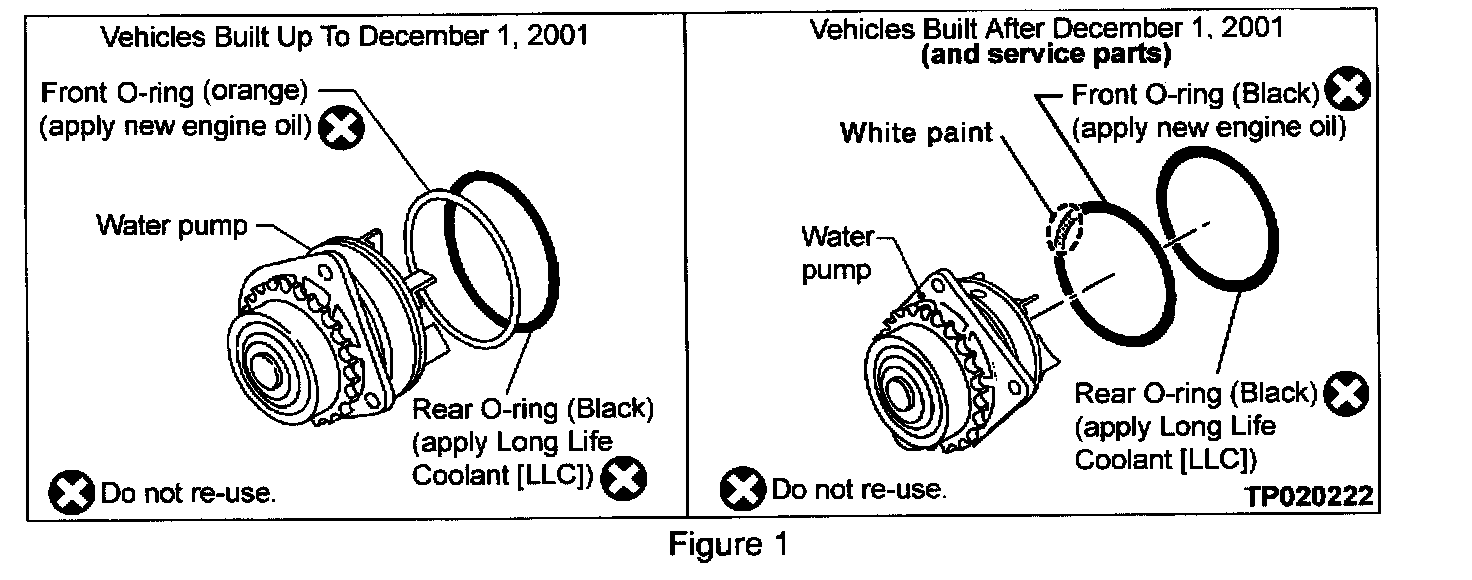

See Figure 1

APPLIED ENGINE:
VQ35DE

SERVICE INFORMATION

If, for any reason, the water pump needs to be serviced, please note that:

^ The front 0-ring (on the water pump) has changed

^ The new 0-ring is now black with a white paint mark instead of orange in color see Figure 1)
