Engine - Replacement and Parts Availability

Classification:
EM04-005

Reference:
NTB04-081

Date:
July 1, 2004

2002-2003 MAXIMA; ENGINE COVER LOGO REPLACEMENT

APPLIED VEHICLE(S):
2002-2003 Maxima (A33)

IF YOU CONFIRM:

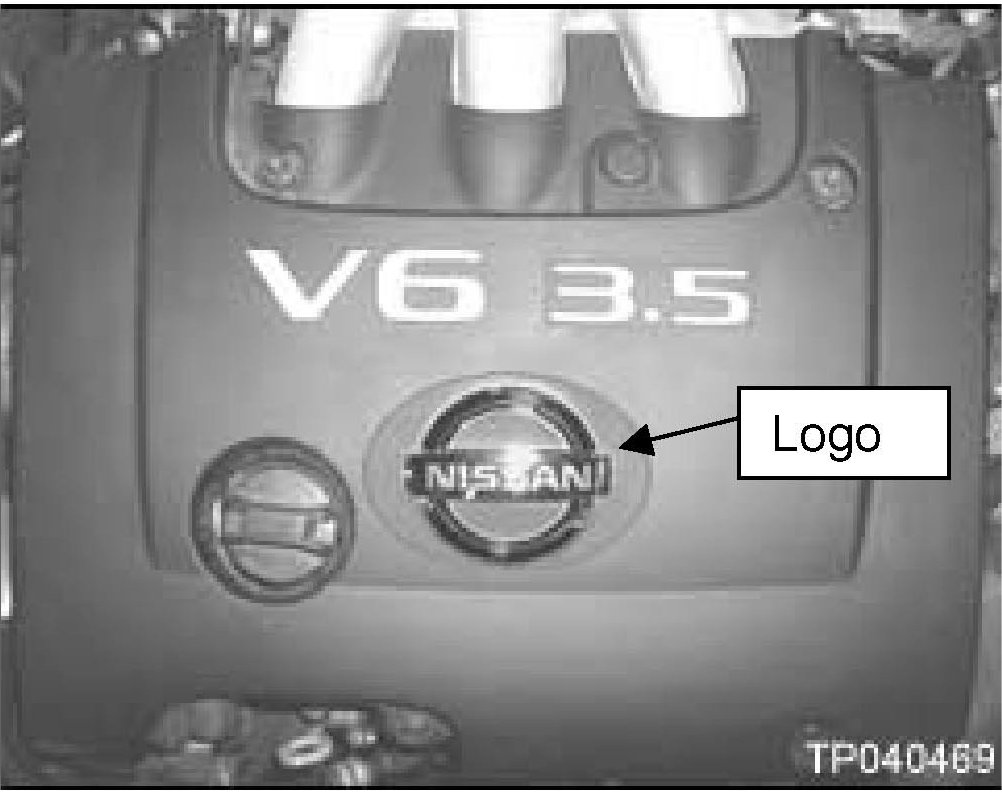

The Nissan logo on the engine cover needs to be replaced for any reason.

ACTION:

Replace only the Nissan logo on the engine cover.

Note:

^ The logo is now available as a separate part.

^ The complete engine cover no longer needs to be replaced.

^ The logo is held on with double sided tape and positioned by 2 locating pins.

Caution:

^ Use care when prying the original logo off so as not to damage the engine cover. Use only isopropyl alcohol to remove any remaining adhesive from the engine cover.

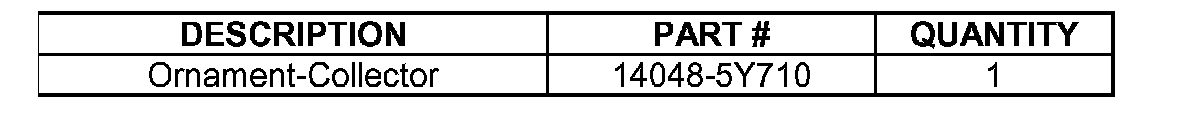

PARTS INFORMATION

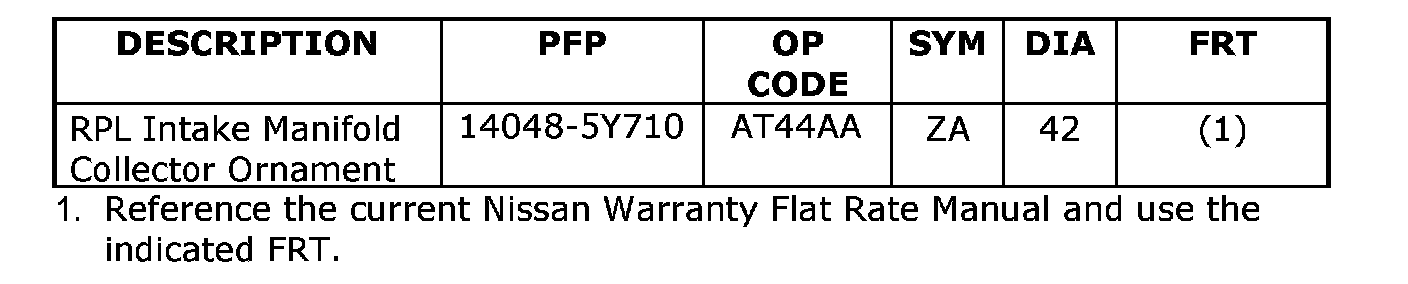

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding shown.
