Windshield Washer Spray Nozzle: Adjustments
Washer Nozzle Adjustment
-

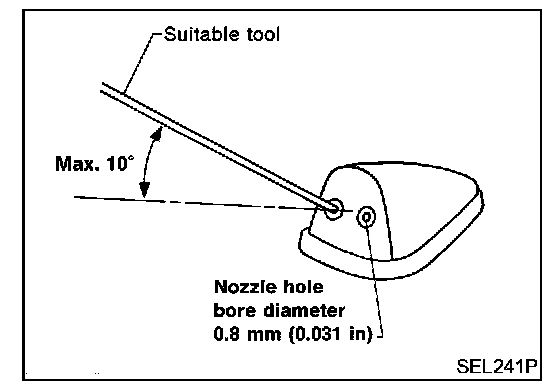

Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range:
±10°
