BR Diagrams (Anti-Lock Brake System)

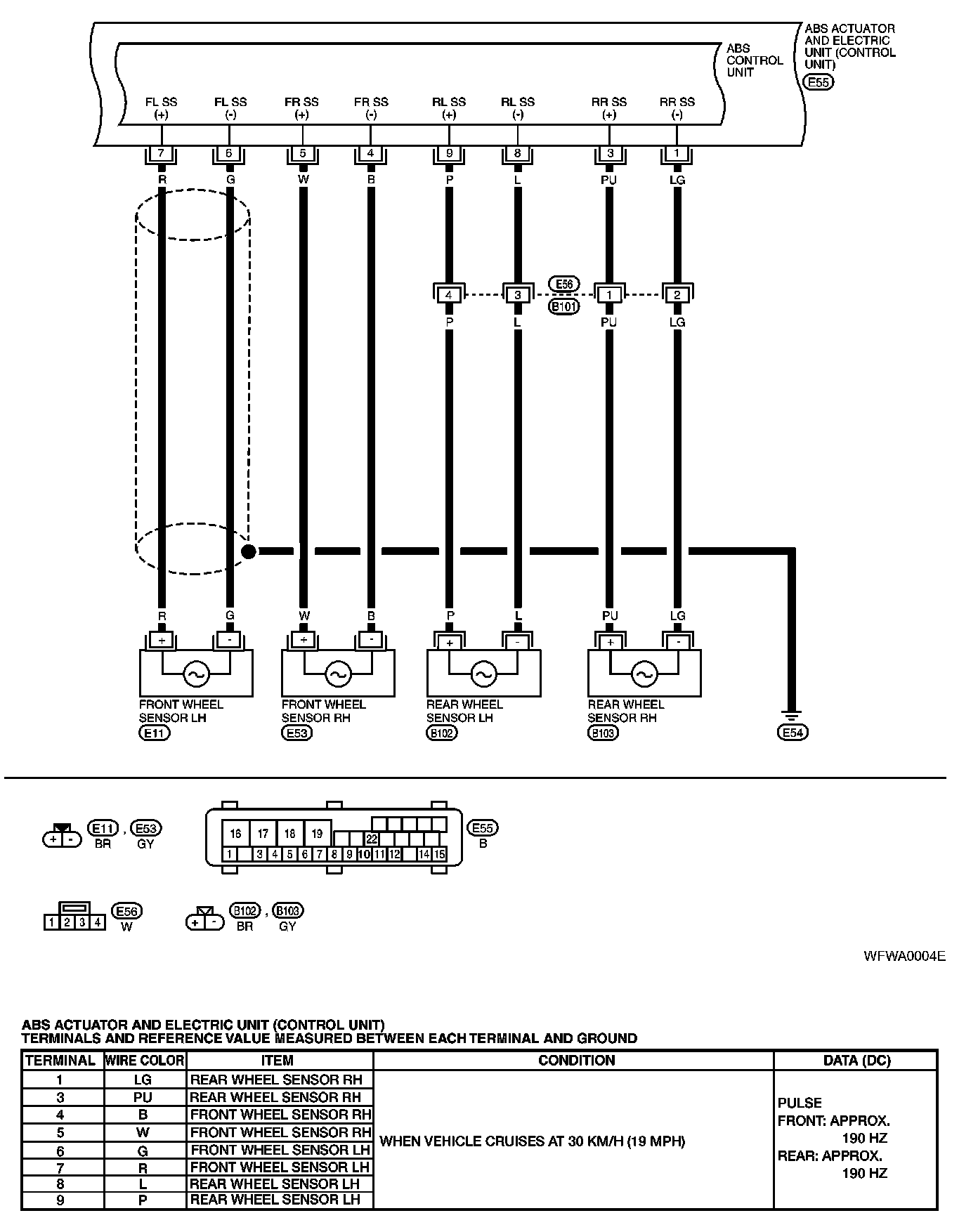

Wiring Diagram-ABS-





BRC-ABS-01





BRC-ABS-02





BRC-ABS-03
