Blower Motor: Service and Repair

BLOWER UNIT




Removal and Installation

REMOVAL
1. Remove the glove box assembly. Refer to "Glove Box".
2. Remove the ECM.
3. Disconnect the blower motor, intake door motor and fan control amp. connector.

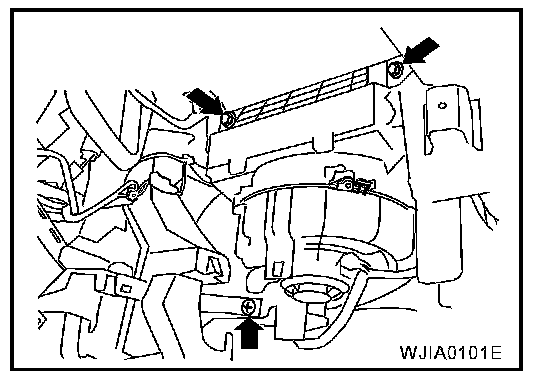

4. Remove the 2 bolts and 1 screw from the blower unit, then remove it.





BLOWER MOTOR

Removal and Installation
1. Remove the blower unit. Refer to "Removal and Installation" of Blower Unit.
2. Release the 8 tabs attaching blower motor to blower unit case and then remove it.
