Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER

Removal and Installation






FUNCTION

Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit.

REPLACEMENT TIMING






Replace in-cabin microfilter.
Caution label is affixed inside the glove box.







REPLACEMENT PROCEDURES

1. Remove glove box assembly. Refer to "Glove Box".

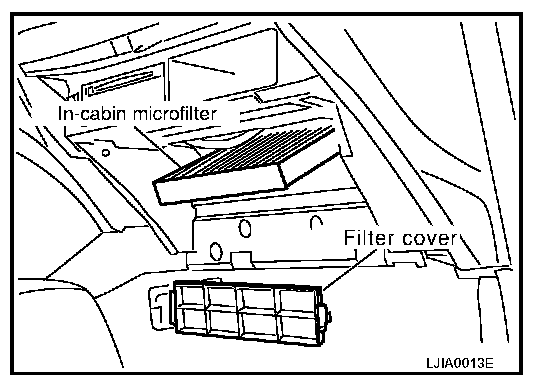

2. Remove in-cabin microfilter cover.

3. Remove the in-cabin microfilter from blower unit.

4. Replace with new in-cabin microfilter and reinstall cover on blower unit.

5. Reinstall glove box assembly.
