Performance Chart

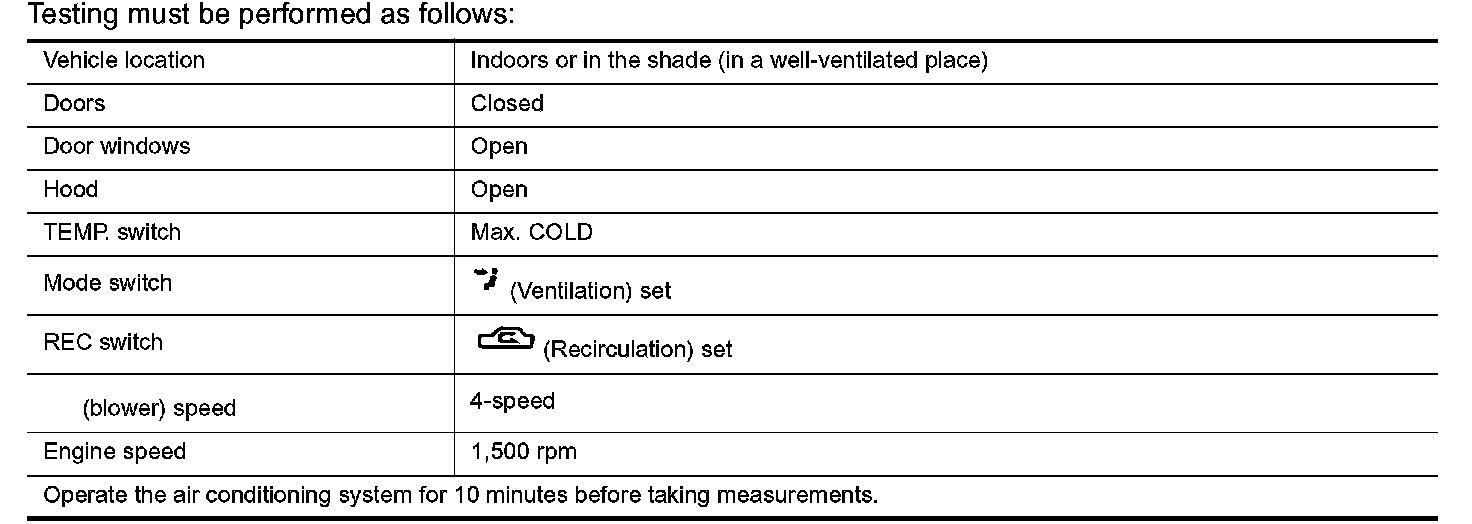

Testing Condition:

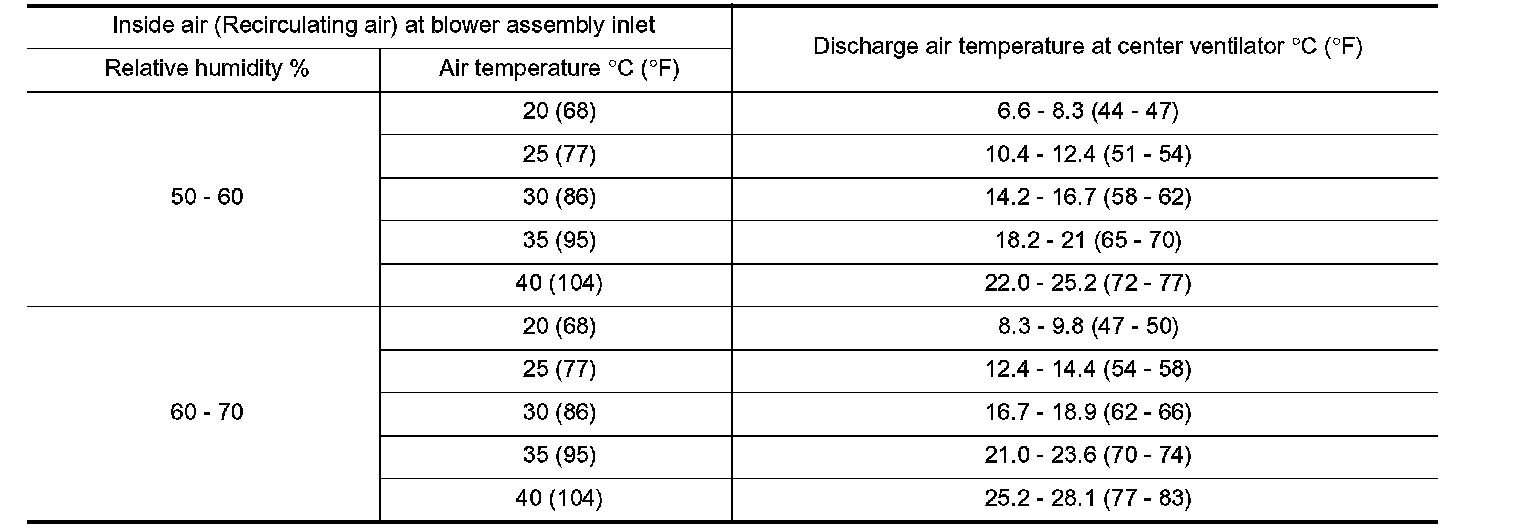

Recirculating-to-Discharge Air Temperature Table:

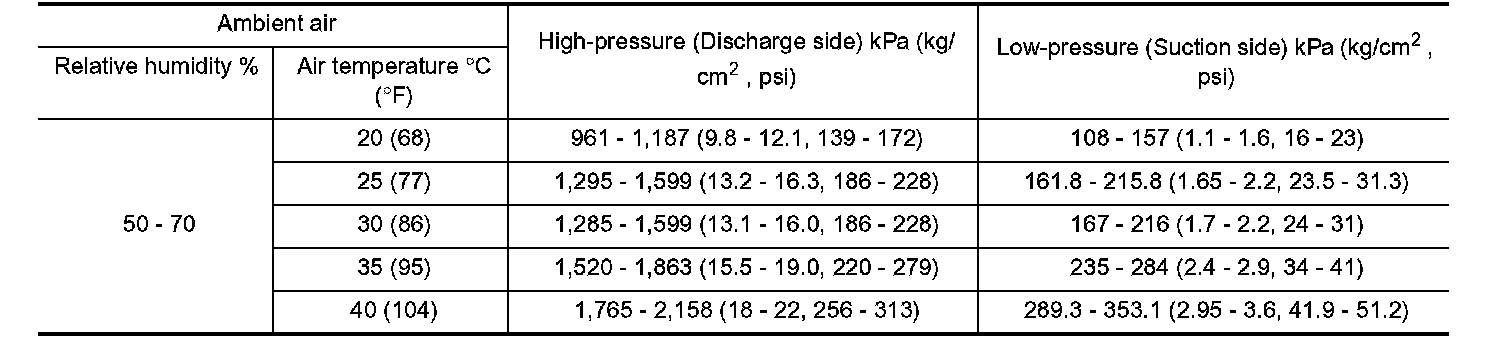

Ambient Air Temperature-to-Operating Pressure table:
