Brakes and Traction Control: Specifications

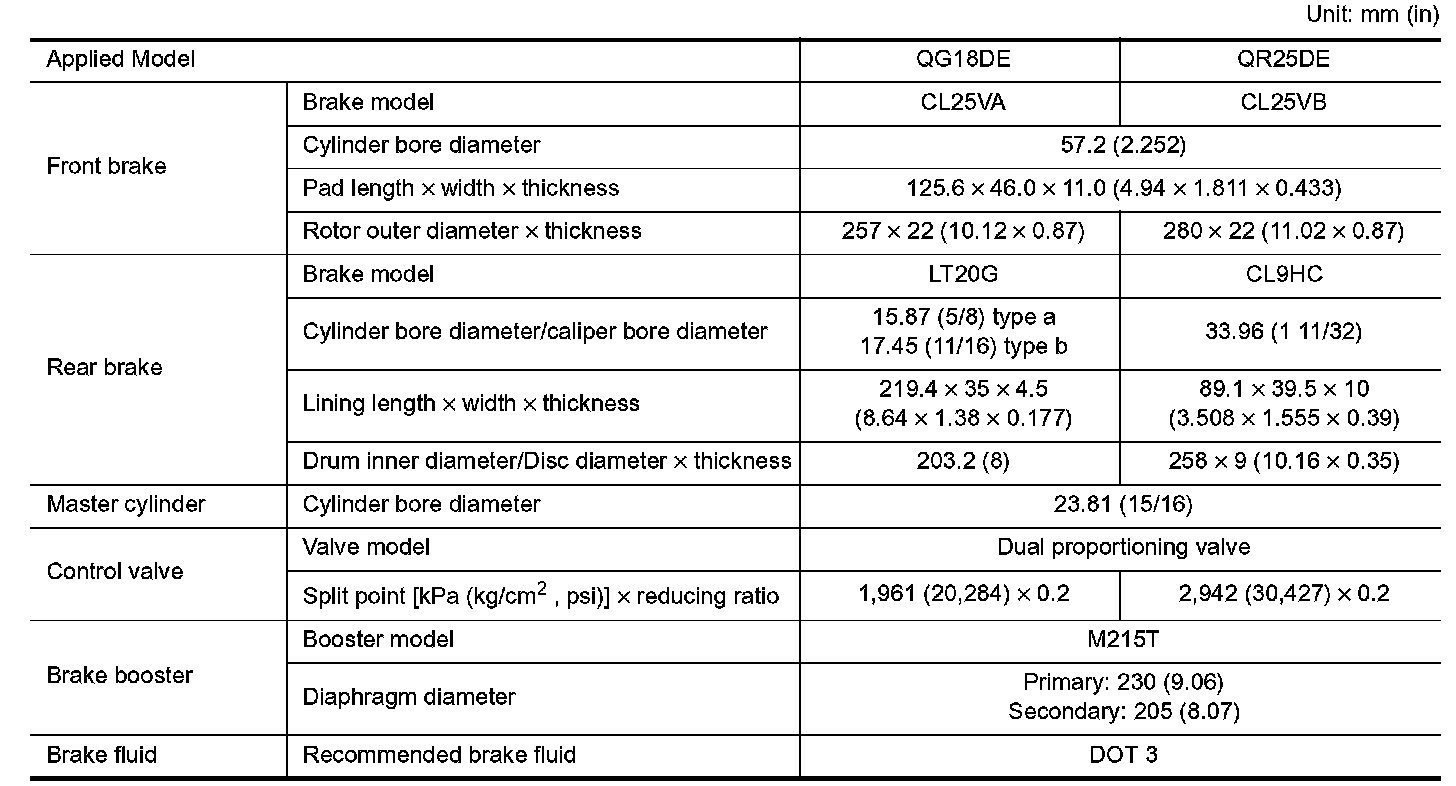

General Specifications

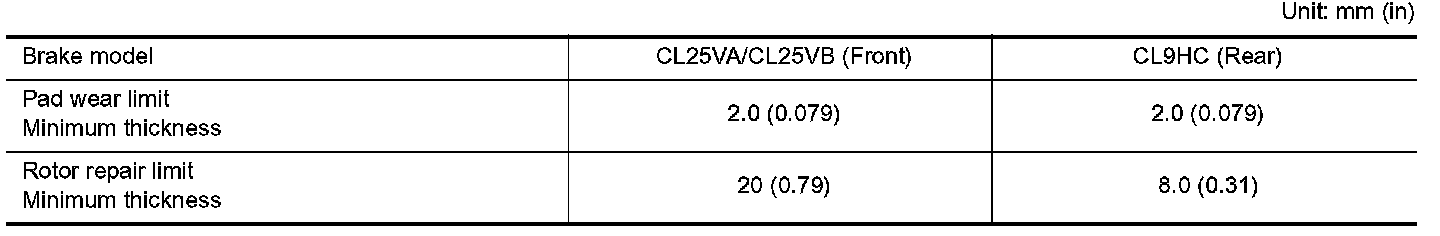

Disc Brake

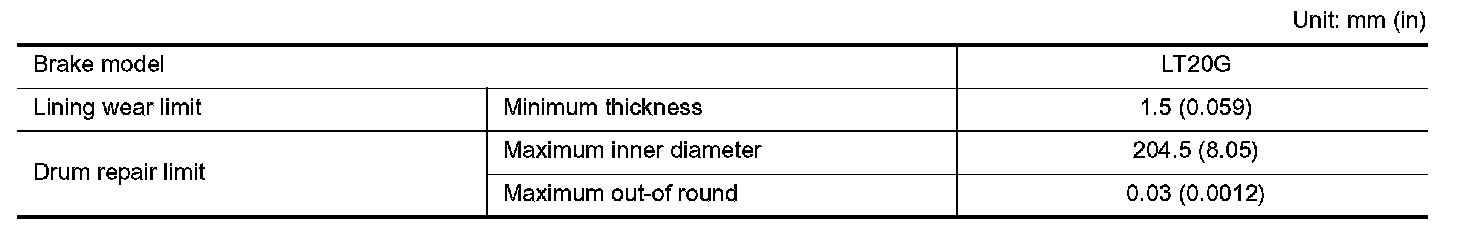

Drum Brake

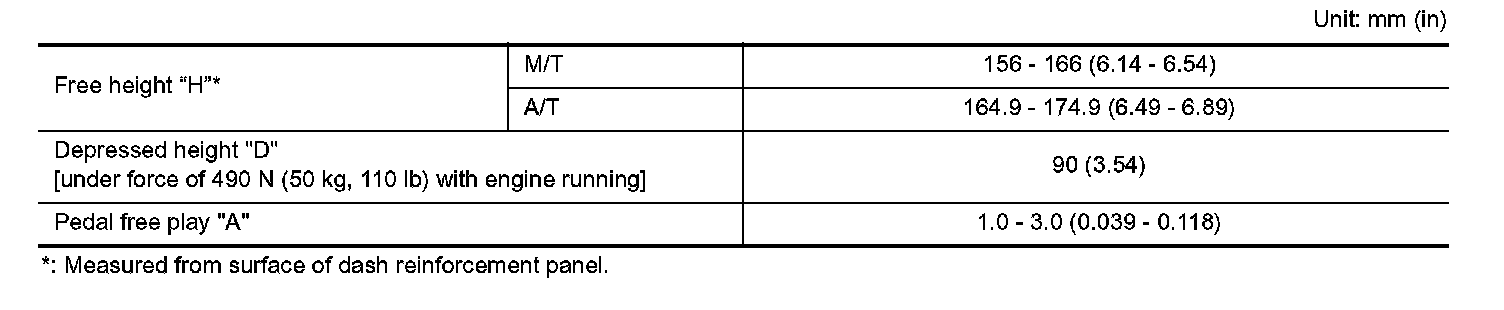

Brake Pedal

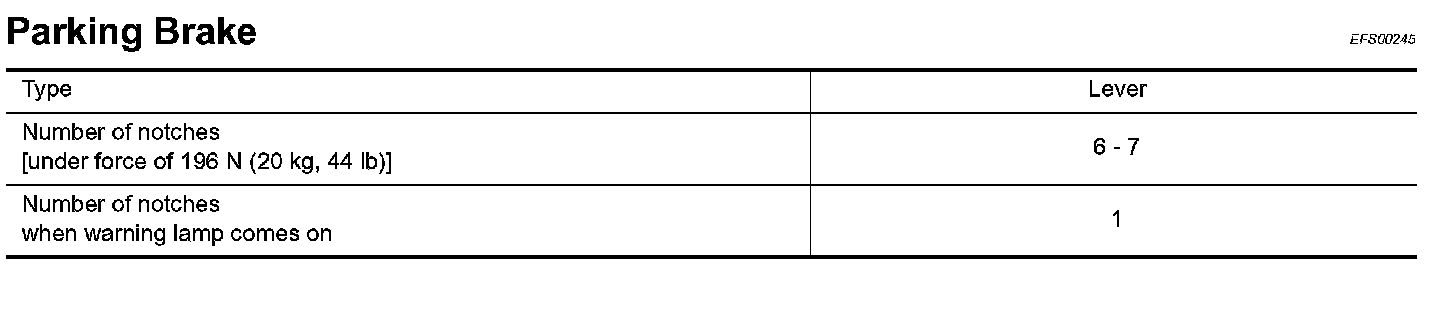

Parking Brake
