Clutch: Testing and Inspection

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

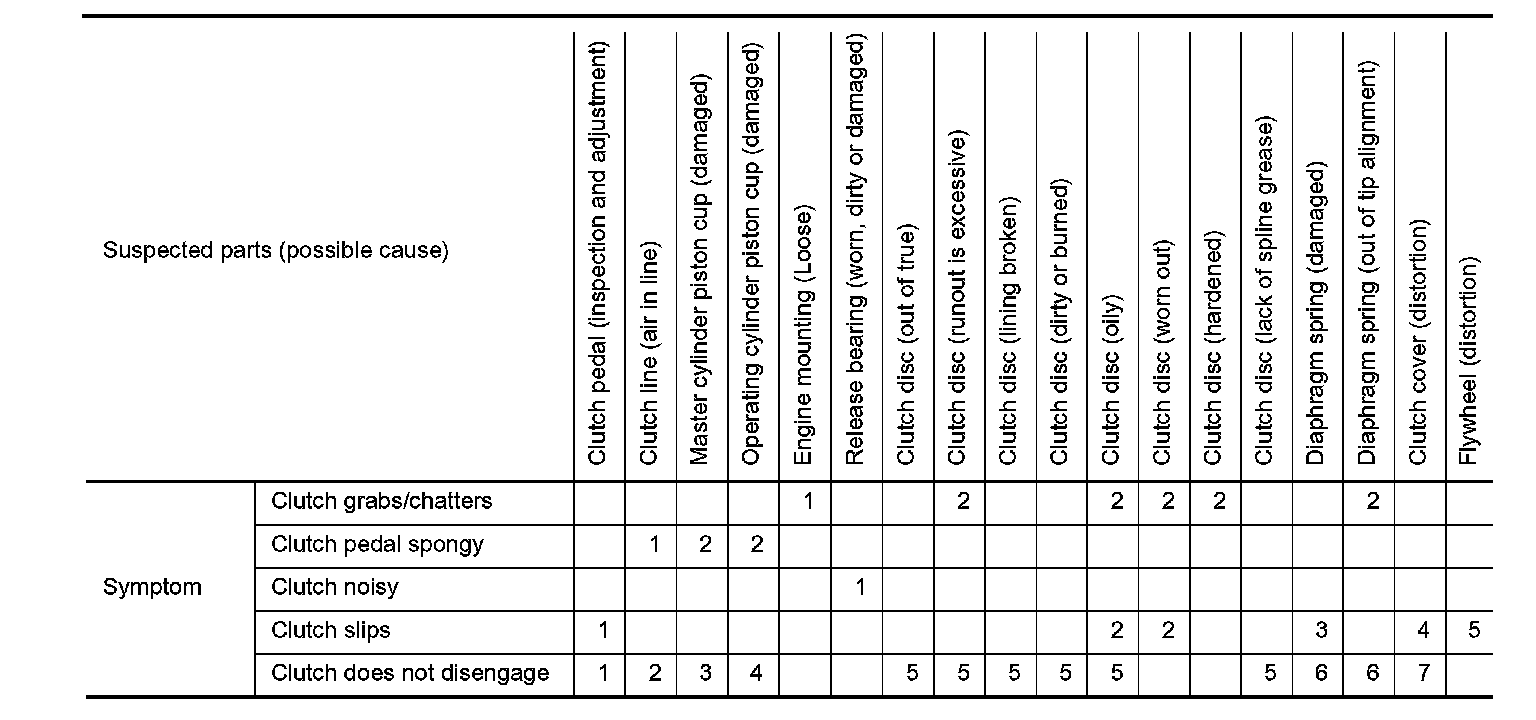

NVH Troubleshooting Chart
Use the chart below to help you find the cause of the symptom. The numbers indicate the order of inspection.
