Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value
PREPARATION

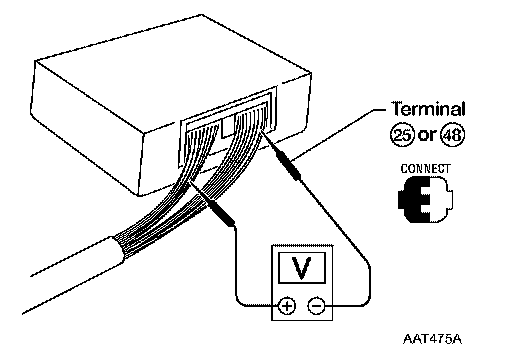

^ Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".





TCM HARNESS CONNECTOR TERMINAL LAYOUT

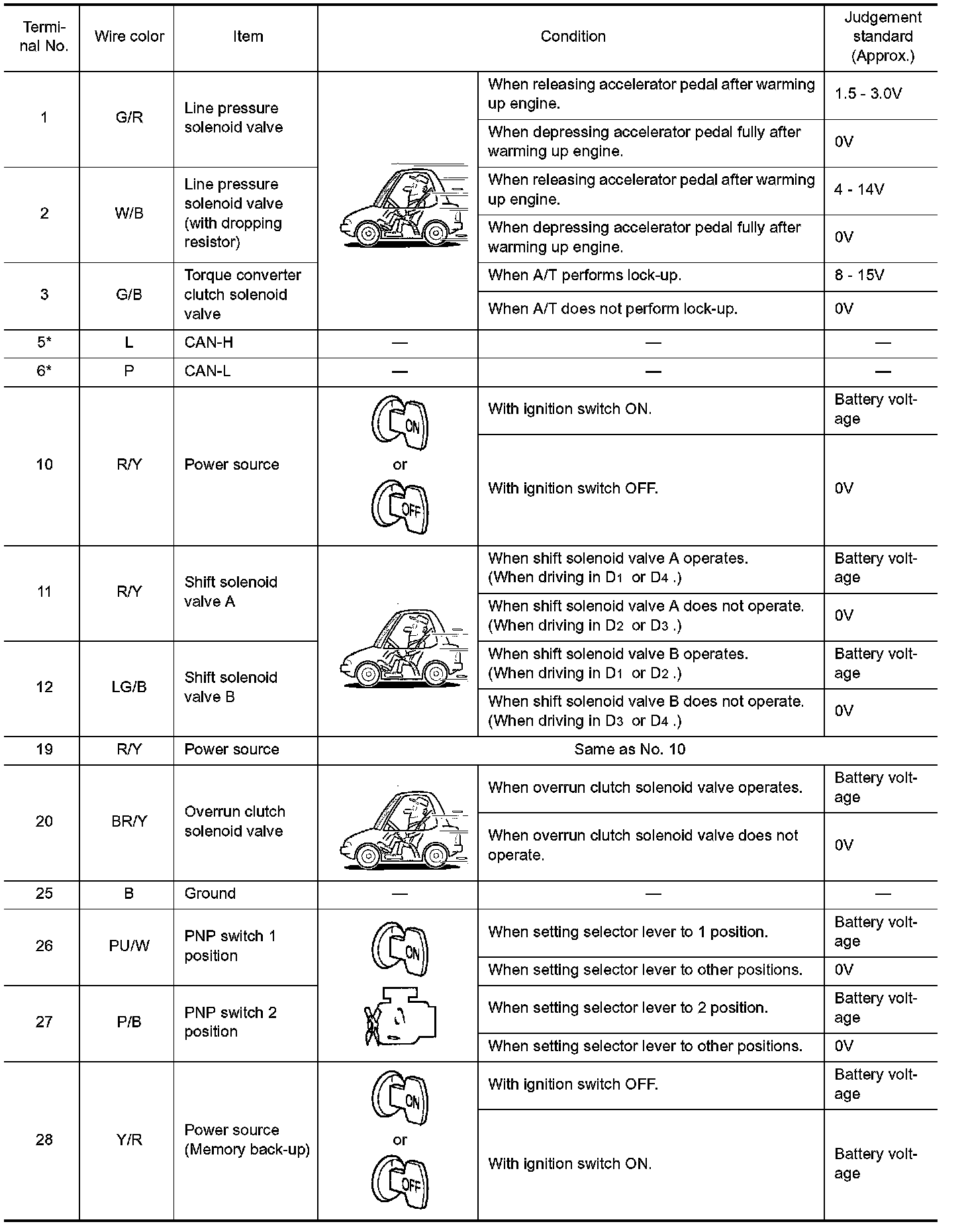

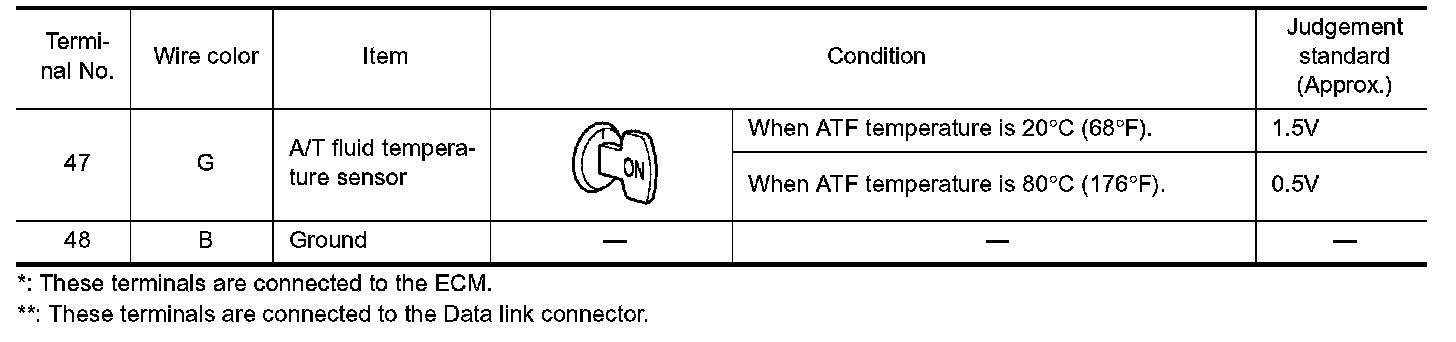

TCM INSPECTION TABLE (Data are reference values.)
