System Specifications





General Specifications

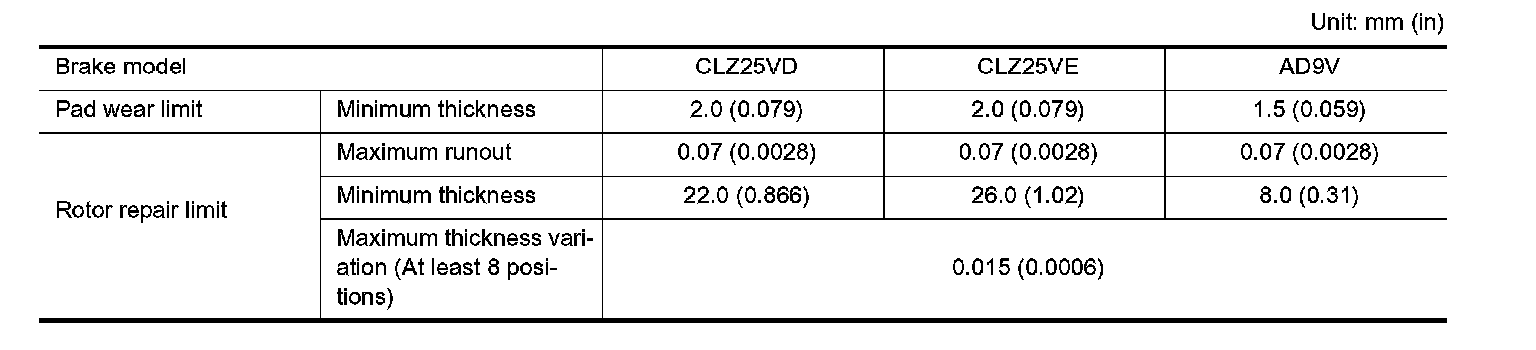

Disc Brake

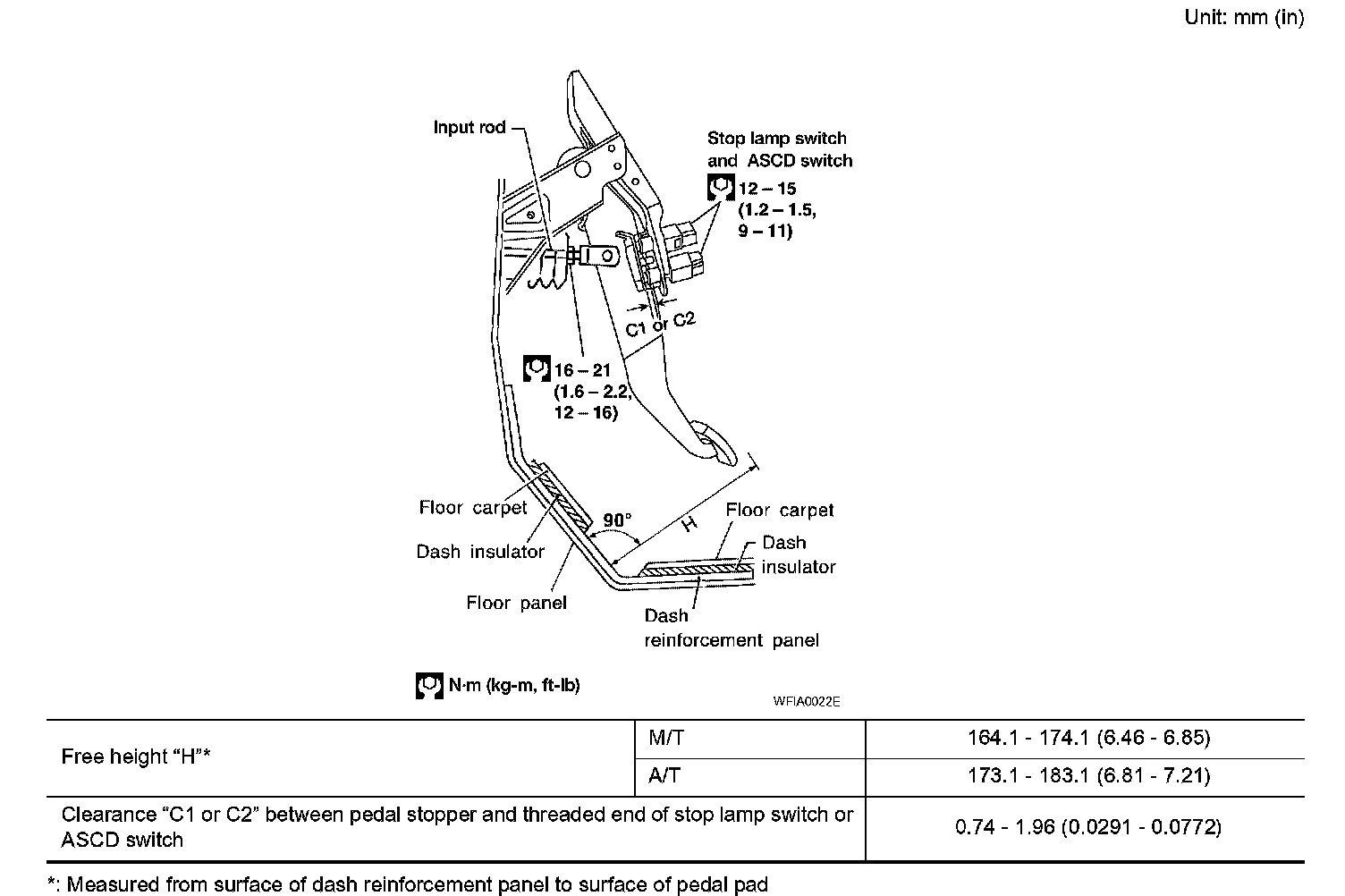

Brake Pedal





Control Valve

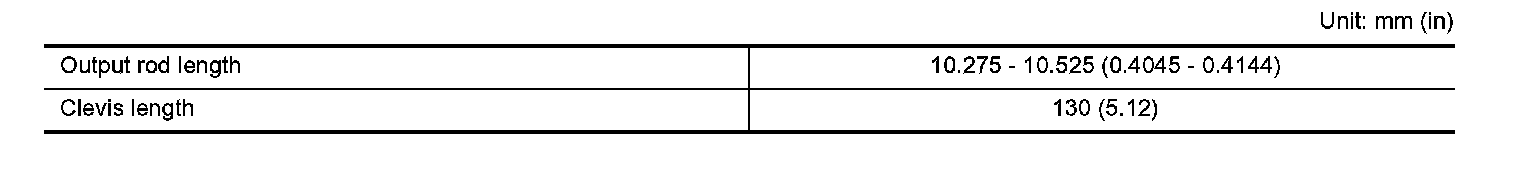

Brake Booster
