Intake Manifold

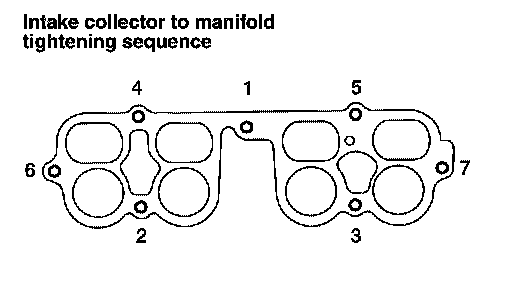

Tighten in numerical order as shown.
After tightening No. 7, retighten the No. 1 mounting bolt to specification.
Bolt 17.6 - 21.6 Nm (1.8 - 2.2 kg-m, 13 - 15 ft. lbs.)
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Tighten in numerical order as shown.
After tightening No. 7, retighten the No. 1 mounting bolt to specification.
Bolt 17.6 - 21.6 Nm (1.8 - 2.2 kg-m, 13 - 15 ft. lbs.)
INTAKE MANIFOLD AND EXHAUST MANIFOLD
