Exhaust Manifold





Exhaust Manifold bolt 39.2 - 44.1 Nm (4.0 - 4.5 Kg-m, 29 - 32 ft. lbs.)

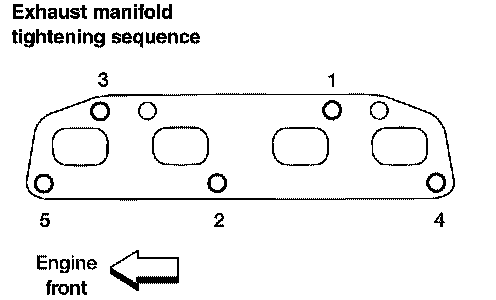

Tighten the nuts in the numerical order shown, After tightening No. 5, retighten No. 1 and then No. 3 to Specification.





INTAKE MANIFOLD AND EXHAUST MANIFOLD
