A/T - Whine/Whistling Noise Above 45 MPH

Classification:
AT04-012

Reference:
NTB05-024

Date:
March 23, 2005

2005 ALTIMA; WHINE NOISE FROM ENGINE COMPARTMENT

APPLIED VEHICLE:
2005 Altima (L31) with QR25DE engine and automatic transmission.

IF YOU CONFIRM:

A high pitched "whine or "whistle" noise coming from the engine compartment when driving at constant highway speeds above 45 mph,

DETERMINE IF:

The whine noise is coming through the A/T control cable (see the Service Procedure).

ACTION:

If the noise is coming through the A/T control cable, replace the cable with the one listed in the Parts Information.

^ See the A/T section of the Service Manual (ESM) for cable replacement information.

IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

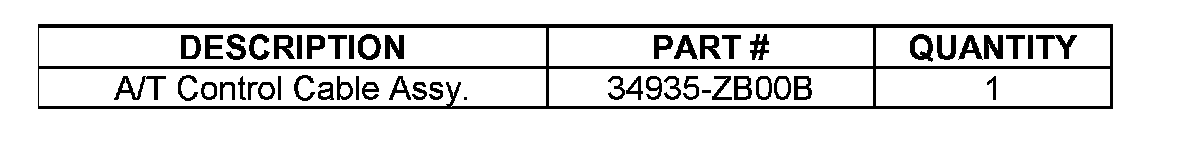

PARTS INFORMATION

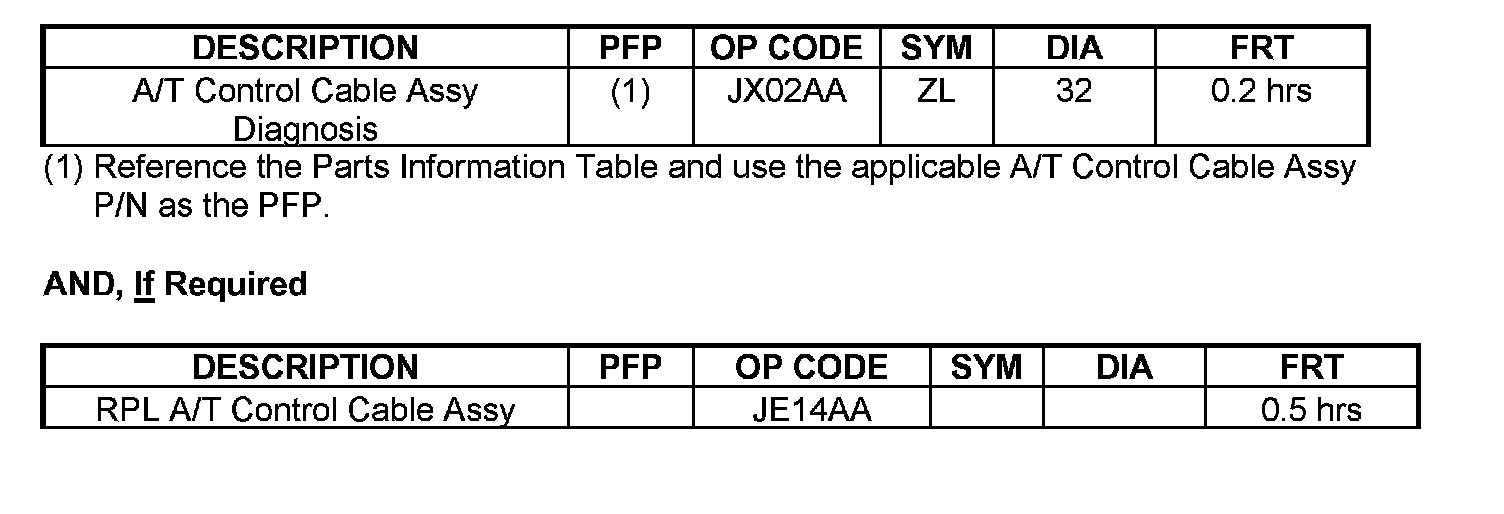

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding shown.

SERVICE PROCEDURE

Determine if the Whine Noise is Being Transmitted Through the A/T Cable

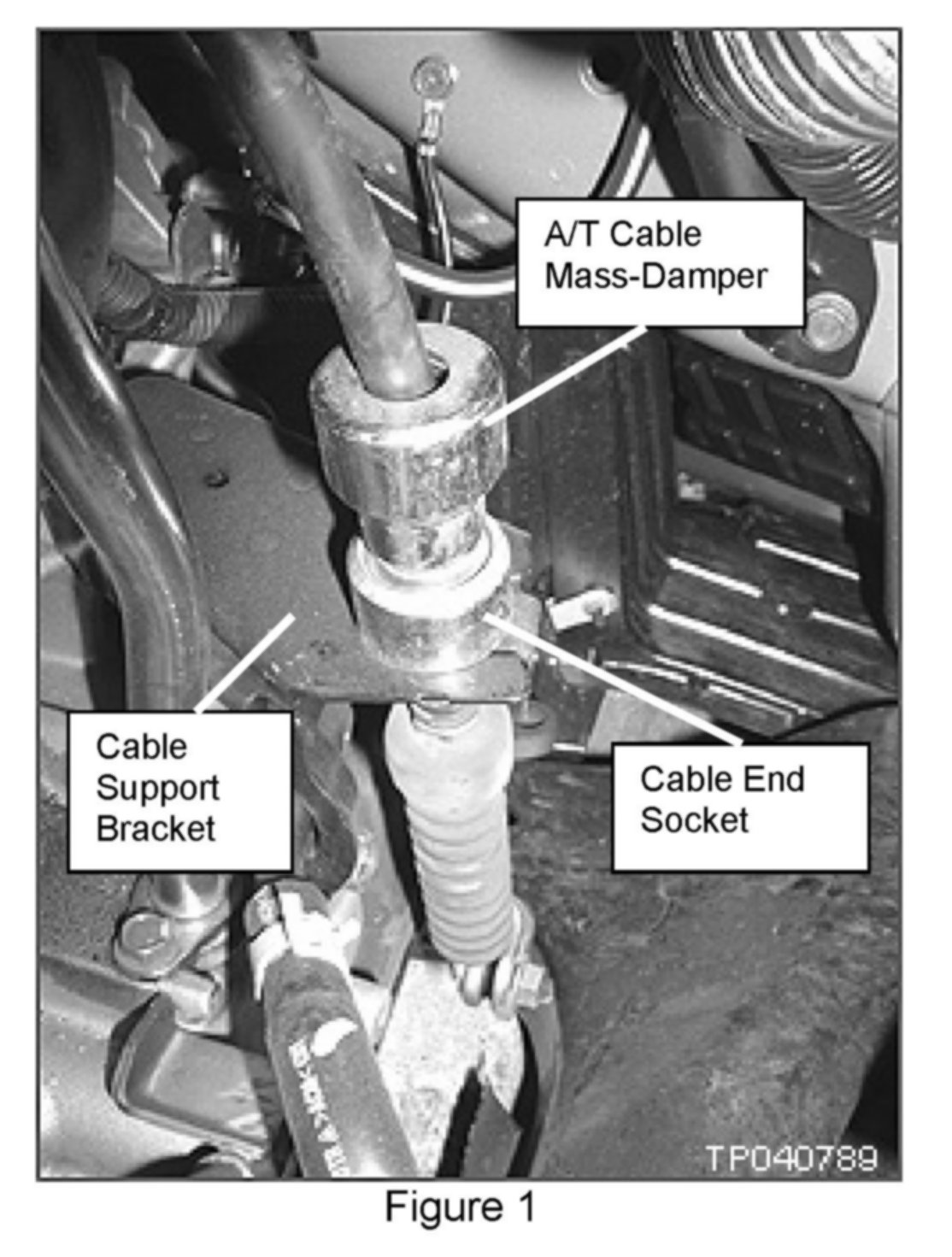

1. Locate the A/T cable Mass-Damper shown in Figure 1.

It's located below the battery and in front of the transmission.

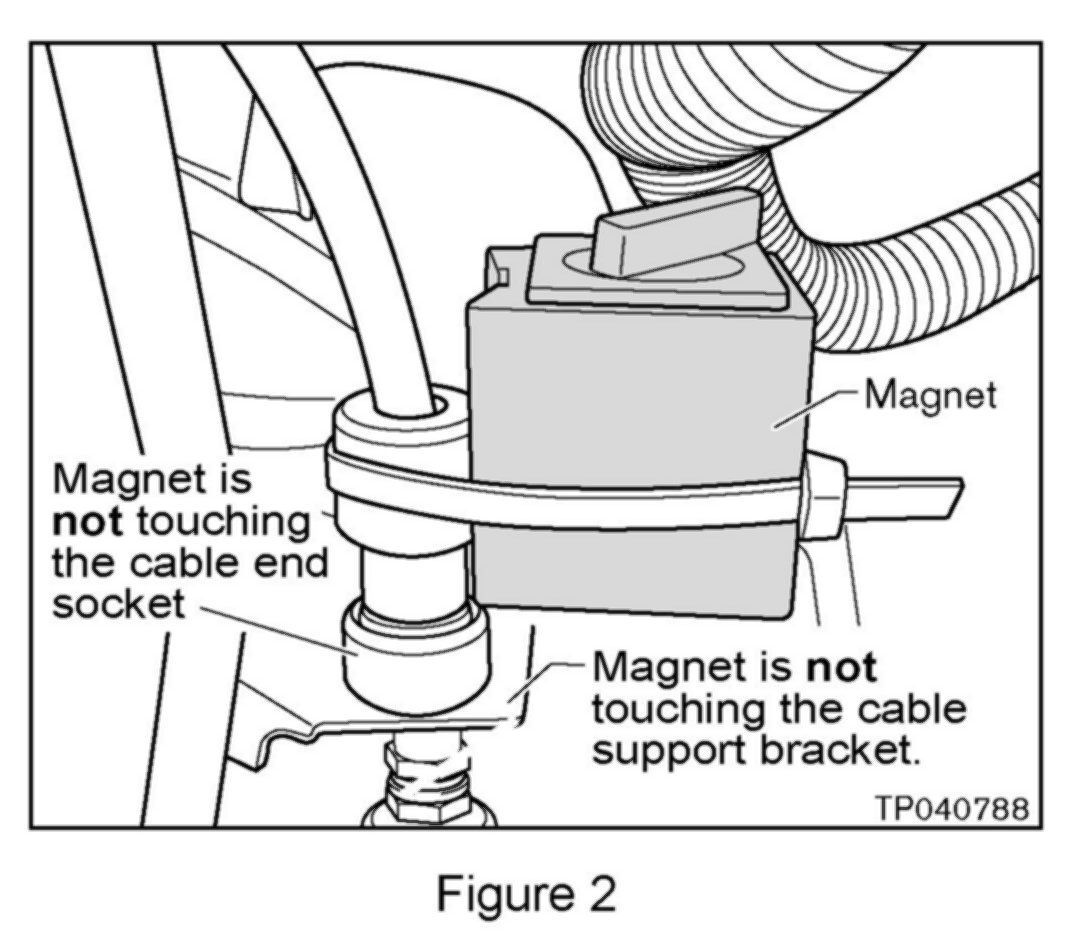

2. Attach a magnet to the Mass-Damper as shown in Figure 2.

^ The magnet must weigh at least 8 ounces (200 grams).

^ As shown in Figure 2, a magnetic base from a dial indicator will work.

^ Make sure you don't let the magnet touch the cable end socket or the cable support bracket. It must hang free on the mass damper itself.

^ Use a tie-wrap to secure the magnet in place so it won't fall off during the test drive.

3. Test-drive the vehicle.

a. If the whine noise is still there, this bulletin does not apply.

^ Go to the Service Manual (ESM) for further diagnostic information.

b. If the whine noise is reduced or gone, replace the A/T control cable with the new one listed in the Parts Information.

^ See the A/T section of the Service Manual (ESM) for cable replacement information.
