HFC-134a (R-134a) Service Procedure

REFRIGERANT LINES

HFC-134a (R-134a) Service Procedure

SETTING OF SERVICE TOOLS AND EQUIPMENT

WARNING:
Avoid breathing the A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose, and throat. Remove the HFC-134a (R-134a) from the A/C system using certified service equipment meeting the requirements of SAE J2210 (R-134a recycling equipment) or J2201 (R-134a recovery equipment). If an accidental system discharge occurs, ventilate the work area before resuming service. Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

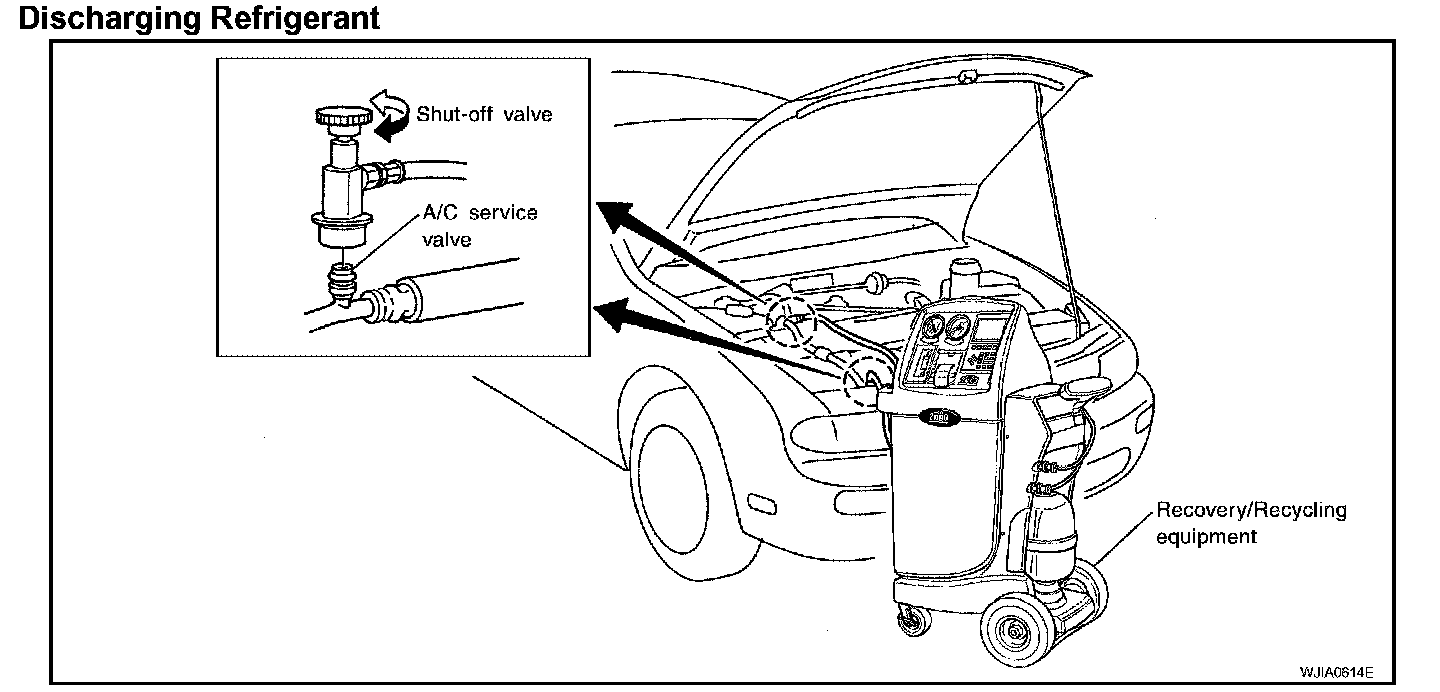

Discharging Refrigerant

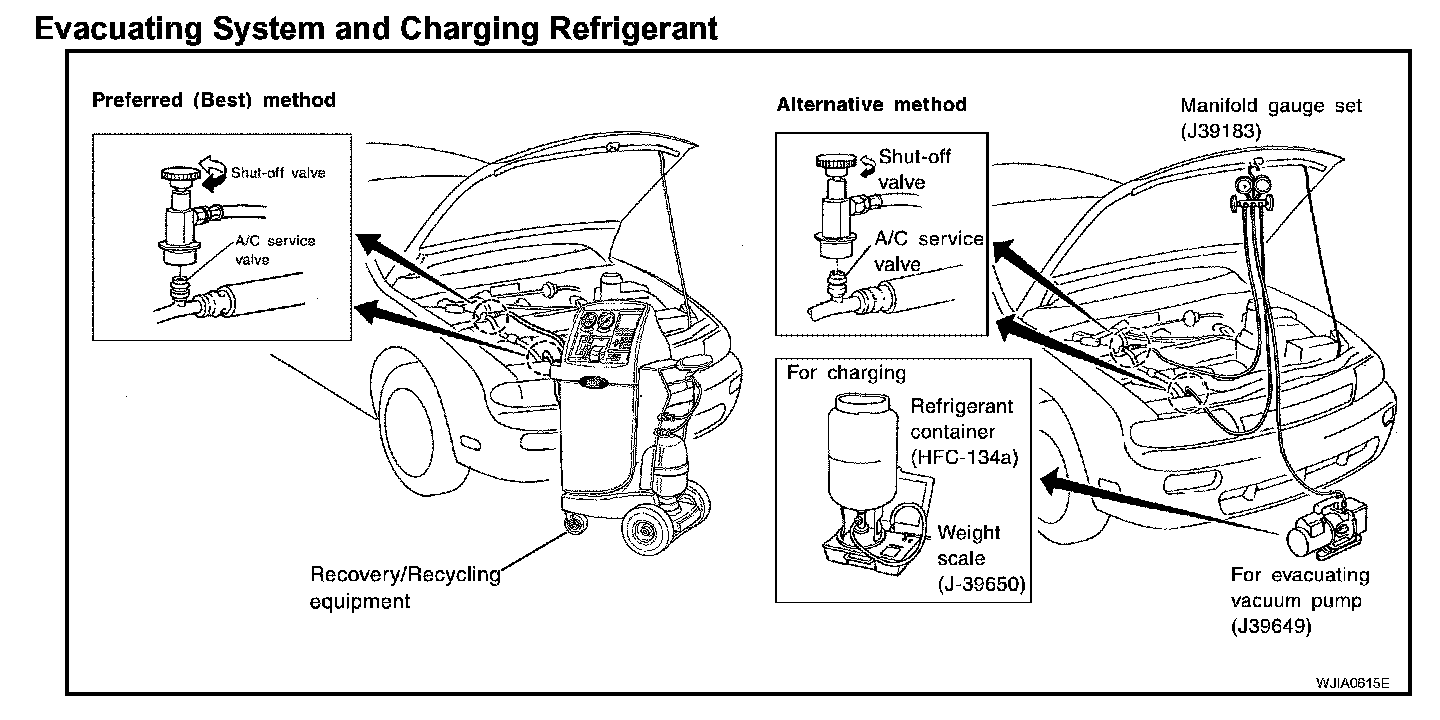

Evacuating System and Charging Refrigerant

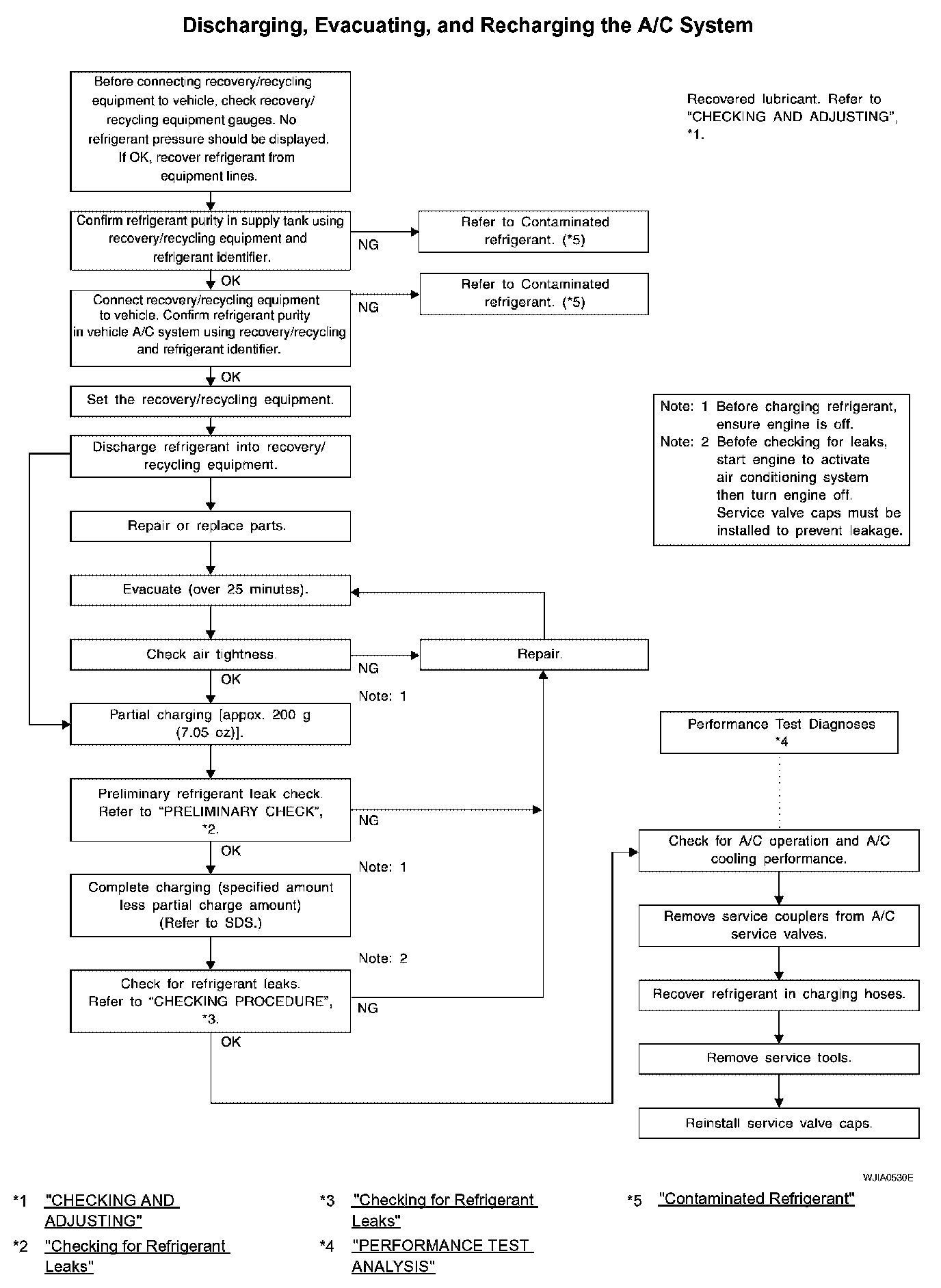

Discharging, Evacuating, and Recharging the A/C System
