Front Wheel Turning Angle

FRONT WHEEL TURNING ANGLE

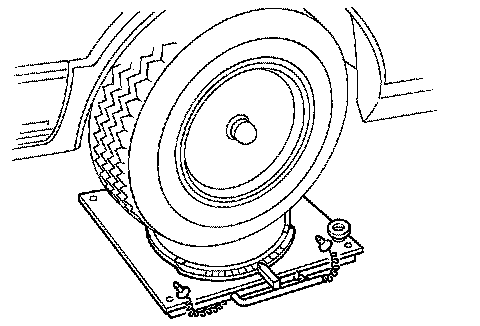

1. Rotate steering wheel all the way right and left; measure turning angle. Refer to "General Specifications (Front)".
2. If it is not within specifications, check rack stroke. Refer to "Steering Gear and Linkage".
