Windshield Washer Reservoir: Service and Repair

Removal and Installation of Washer Tank

REMOVAL

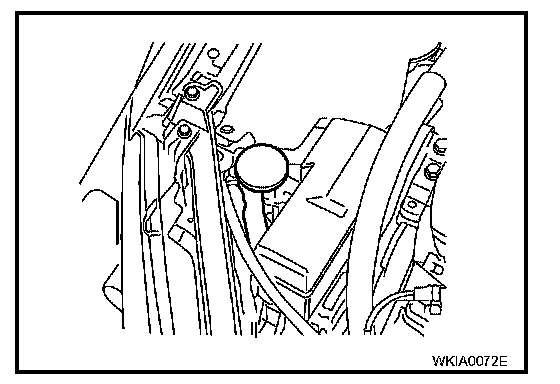

1. Pull out washer tank inlet.




2. Remove fender protector.
3. Remove front washer motor connector and washer fluid level sensor connector (if equipped).

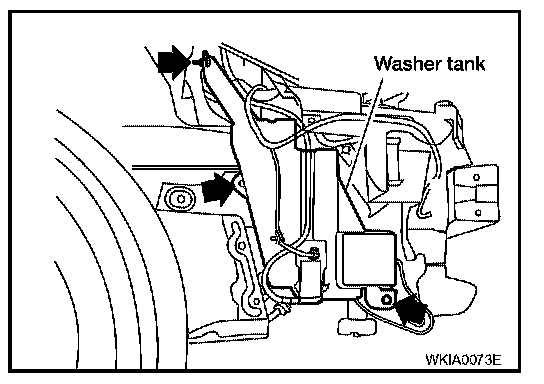

4. Remove washer tank screws.
5. Remove washer hose and remove the washer tank from the vehicle.

INSTALLATION

CAUTION: After installation, add water up to the upper level of the washer tank inlet and check for water leaks.

Installation is in the reverse order of removal.

Washer tank installation screws

Tightening torque : 4.5 Nm (0.46 kg-m, 40 in-lb)
