Engine: Service and Repair
ENGINE ASSEMBLY
Removal and Installation
WARNING:
^ Place chocks at front and back of rear wheels.
^ For engines not equipped with engine slingers, attach proper slingers and bolts as described in the NISSAN Parts Catalog.
CAUTION:
^ Do not start working until exhaust system and coolant are cool. If items or work required are not covered by the engine main body section, refer to the applicable sections.
^ Use the correct supporting points for lifting and jacking. Refer to "LIFTING POINT". In removing the drive shafts, be careful not to damage any transaxle grease seals.
^ Before separating the engine and transaxle, remove the crankshaft position sensor (POS).
^ Do not damage the edge of the crankshaft position sensor (POS) or the ring gear teeth.
REMOVAL
1. Drain coolant. Refer to "DRAINING ENGINE COOLANT".
2. Remove the front cowl grille. Refer to "Removal and Installation".
3. Remove the windshield wiper assembly. Refer to "Removal and Installation of Wiper Motor and Linkage".
4. Disconnect engine room harness from the engine side and position it aside. Disconnect engine harness ground connections. Access the connector through the glove box opening. Refer to "INSTRUMENT PANEL ASSEMBLY".
5. Remove the hood. Refer to "Removal and Installation of Hood Assembly".
6. Remove the battery and battery tray. Refer to "Removal and Installation".
7. Remove the engine cover using power tool. Remove side engine covers.
8. Disconnect the mass air flow sensor electrical connector.
9. Remove the fresh air intake tube and air cleaner to electric throttle control actuator tube attached to air cleaner lid. Refer to "Removal and Installation".
10. Disconnect two connectors below mass air flow sensor attached to the shock tower.
11. Release fuel pressure. Refer to "FUEL PRESSURE RELEASE".
12. Disconnect fuel hose quick connection at vehicle piping side. Refer to "Removal and Installation".
13. Remove and position aside the IPDM E/R and bracket and position aside. Refer to "Removal and Installation of IPDM E/R".
14. Remove the radiator assembly, coolant reservoir, and system hoses. Refer to "REMOVAL".
15. Disconnect the power brake booster vacuum hose from the back of the intake manifold collector.
16. Disconnect heater hoses at the cowl.
17. Disconnect the two fusible link connectors at the battery positive terminal.
18. Disconnect the harness retainers and position the engine harness aside.
19. Remove the ground cable.
20. Remove the clutch operating cylinder with lines attached and position aside. Refer to "Removal and Installation".
21. Drain engine oil. Refer to "Changing Engine Oil".
22. Drain A/T oil. Refer to "Changing A/T Fluid".
23. Drain M/T oil. Refer to "Changing M/T Oil".
24. Disconnect the transaxle shift controls. Refer to "SHIFT CONTROL SYSTEM" (5 A/T).
25. Remove RH splash shield.
26. Remove the front wheel and tires.
27. Remove the drive belts. Refer to "Removal and Installation".
28. Remove the front exhaust tube and hanger using power tools. Refer to "Removal and Installation".
29. Remove engine oil cooler pipe bolts.
30. Remove the idler pulley and idler bracket.
31. Remove the engine undercover.
32. Remove the A/C compressor using power tools. Discharge and recover the R134a refrigerant. Refer to (R-134a) Service Procedure".
33. Remove the front drive shafts. Refer to "Removal and Installation".
34. Remove the front suspension member. Refer to "Removal and Installation".
CAUTION: Make sure to disconnect electrically controlled engine mounting insulator harness clips and power steering line mounts from the front suspension member prior to removal.
35. Disconnect the power steering pressure switch.
36. Remove the power steering pump, without disconnecting the piping, from the engine and position and secure it aside. Refer to "REMOVAL".

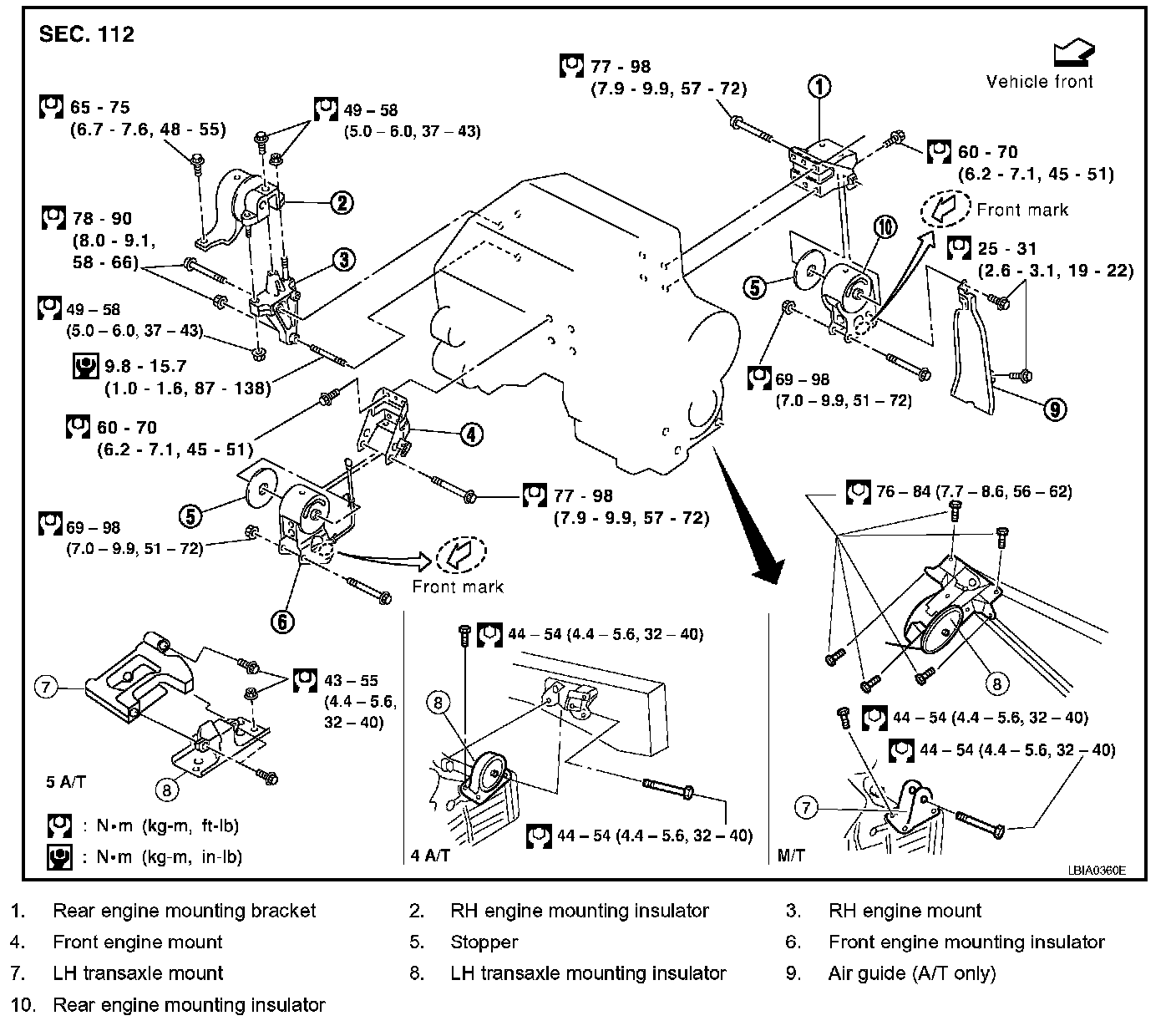

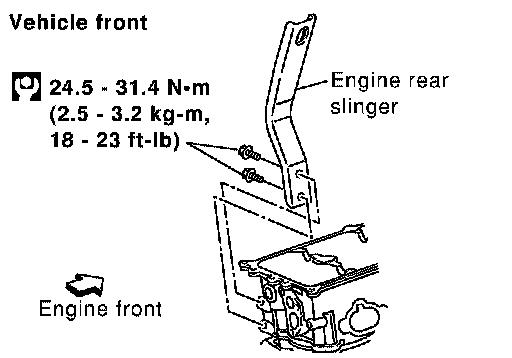

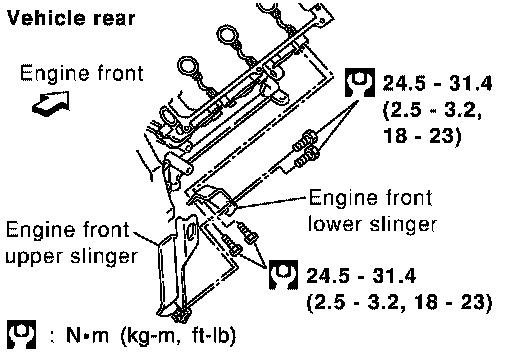

37. Install engine slingers into front of left bank cylinder head and rear of right bank cylinder head.
Engine slinger bolts : 24.5 - 31.4 Nm (2.5 - 3.2 kg-m, 18 - 23 ft. lbs.)
38. Secure a hoist to the engine slingers.
39. Remove the LH transaxle mount through bolt.
40. Remove the RH engine mounting insulator nuts and bolt.
41. Carefully lower the engine and transaxle assembly with the hoist avoiding interference with the vehicle body.
CAUTION:
^ Before and during this procedure, always check if any harnesses are left connected.
^ Avoid any damage to, or any oil/grease smearing or spills onto the engine mounting insulators.
42. Remove the crankshaft position sensor (POS).
43. Remove the starter motor. Refer to "M/T Models" "5-Speed A/T Models".
44. Disconnect the transmission electrical connectors, harness retainers and position harness aside.
45. Separate the engine and transaxle and mount the engine on a suitable engine stand.
INSTALLATION
Installation is in the reverse order of removal.
Manual Transaxle
CAUTION: When installing the transaxle, do not allow the transaxle input shaft to contact the clutch cover.

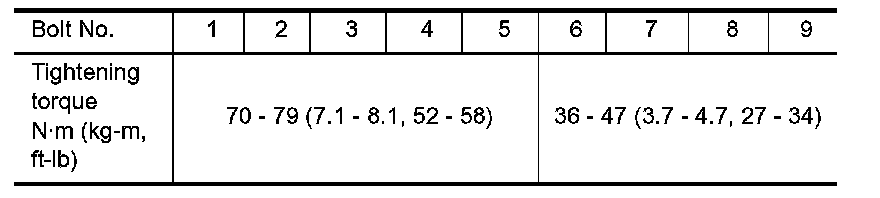

^ When installing the transaxle to the engine, use the specified tightening torque in the order shown.
5 A/T

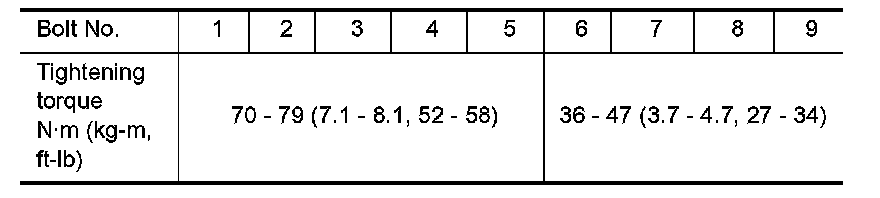

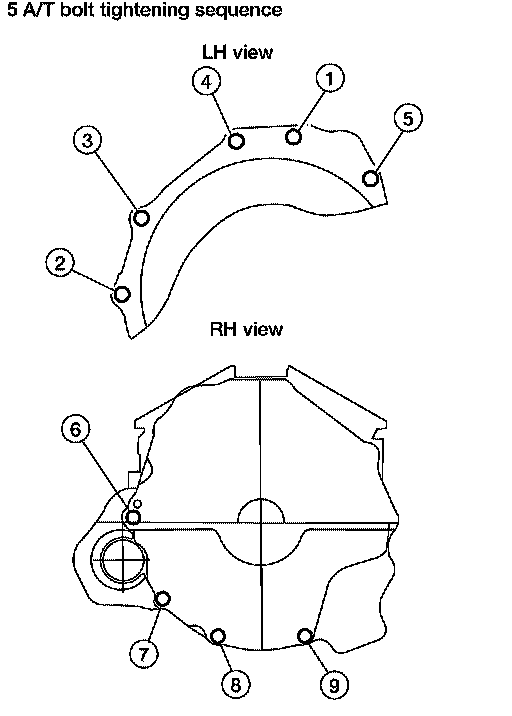

^ When installing the transaxle to the engine, use the specified tightening torque in the numerical sequence as shown.
^ After installation, check the transaxle oil level, and check for any leaks and any loose mechanisms.
^ Install crankshaft position sensor (POS).
Crankshaft position sensor (POS) bolt : 8.4 - 10.8 Nm (0.86 - 0.98 kg-m, 74.6 - 95.5 inch lbs.)
^ Install idler pulley.
Idler pulley bolts : 25 - 31 Nm (2.5 - 3.2 kg-m, 18 - 23 ft. lbs.)
INSPECTION AFTER INSTALLATION
^ Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required quantity, fill to the specified level. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS".
^ Use procedure below to check for fuel leakage.
^ Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leakage at connection points.
^ Start engine. With engine speed increased, check again for fuel leakage at connection points.
^ Run engine to check for unusual noise and vibration.
^ Warm up engine thoroughly to make sure there is no leakage of Fuel, exhaust gas, or any oils/fluids including engine oil and engine coolant.
^ Bleed air from passages in lines and hoses, such as in cooling system. After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to specified level, if necessary.

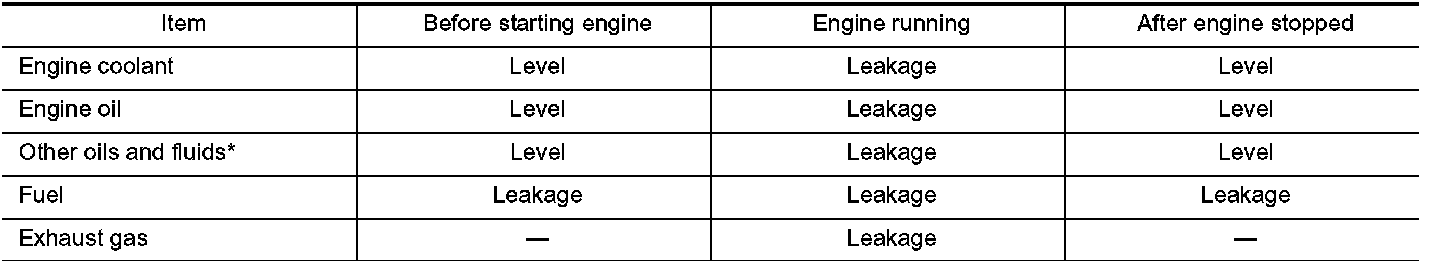

^ Summary of the inspection items:
