Air Duct: Service and Repair

DUCTS AND GRILLES

Removal and Installation

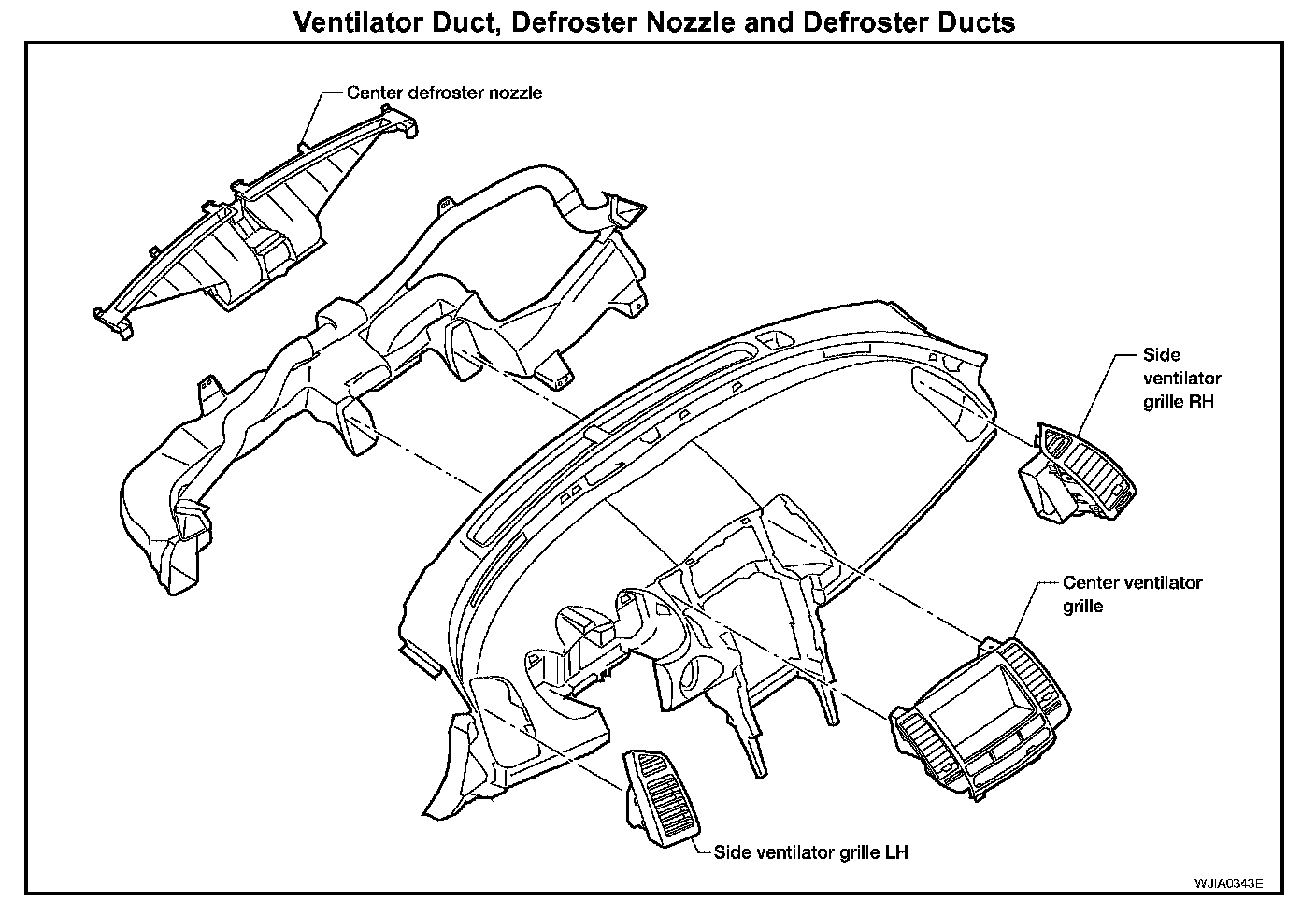

Ventilator Duct, Defroster Nozzle and Defroster Ducts

CENTER VENTILATOR GRILLE

Removal
1. Remove the shift knob.
2. Remove the shift bezel.
3. Remove cluster lid C. Refer to "Cluster Lid C".




4. Remove cluster lid D. Refer to "Cluster Lid D".
5. Release the tabs to remove each of the two center ventilator grilles.

Installation
Installation is in the reverse order of removal.

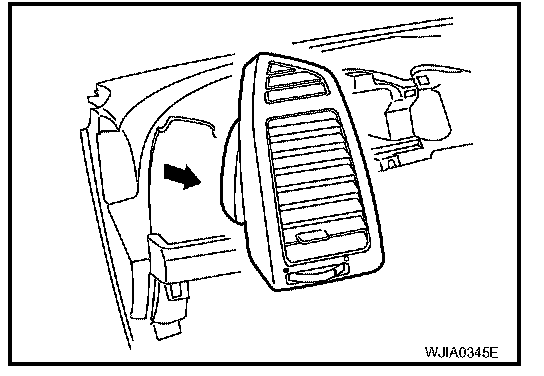

SIDE VENTILATOR GRILLE LH

Removal
1. Remove the instrument panel. Refer to "Removal and Installation".




2. Release the tabs to remove side ventilator grille LH.

Installation
Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE RH

Removal
1. Remove the instrument panel. Refer to "Removal and Installation".




2. Release the tabs to remove side ventilator grille RH.

Installation
Installation is in the reverse order of removal.

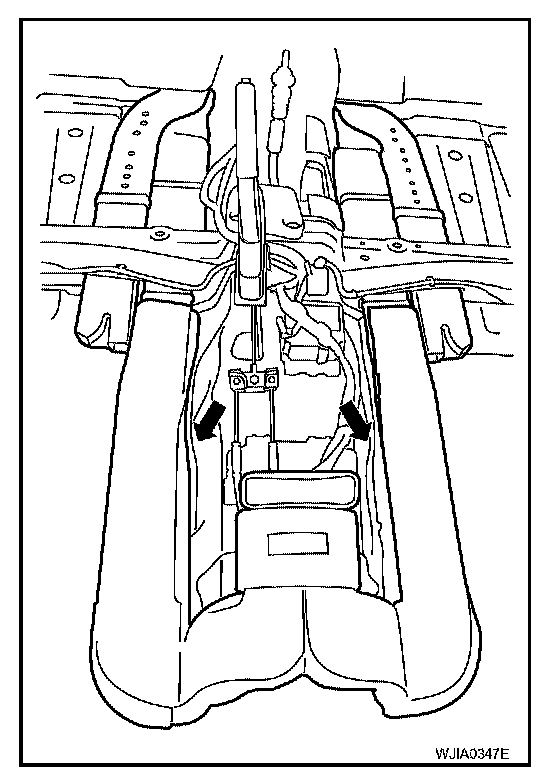

FLOOR DUCT

Removal
1. Remove the carpet. Refer to "FLOOR TRIM".




2. Remove the two clips.
3. Remove the floor ducts.

Installation
Installation is in the reverse order of removal.
