Cabin Air Filter / Purifier: Service and Repair



IN-CABIN MICROFILTER

The in-cabin microfilter restricts the entry of air-borne dust and pollen particles and reduces some objectionable outside odors. The filter is located behind the glove box.

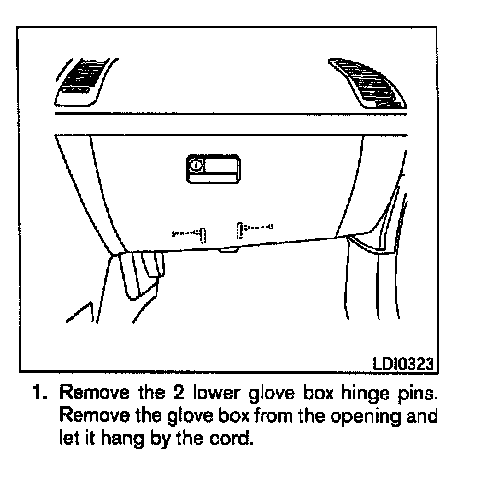

To replace the filter, perform the following procedure:
