Tail Lamp: Service and Repair

REAR COMBINATION LAMP

Removal and Installation

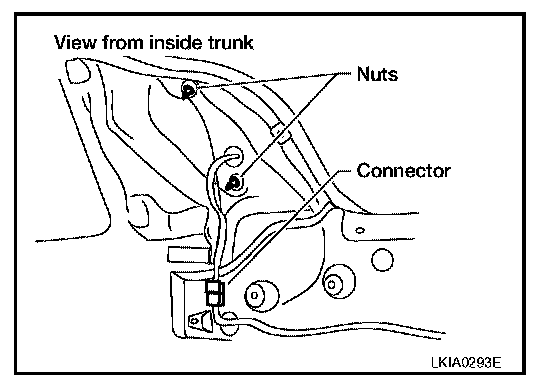

1. Position trunk room trim aside.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting nuts.
4. Pull rear combination lamp to remove from the vehicle.

Installation is in the reverse order of removal.
