A/C, Instruments - Erratic Gauge/A/C Operation

Classification:
ELO7-021

Reference:
NTB07-043

Date:
MAXIMA; GAUGES / HVAC / WARNING LIGHTS
DO NOT WORK CORRECTLY

APPLIED VEHICLE:
2004-2006 Maxima (A34)

IF YOU CONFIRM:

Any of the symptoms below:

^ Gauges do not work correctly.

^ Dash warning / indicator lights do not work correctly.

^ Heater and air conditioner controls do not work correctly.

AND

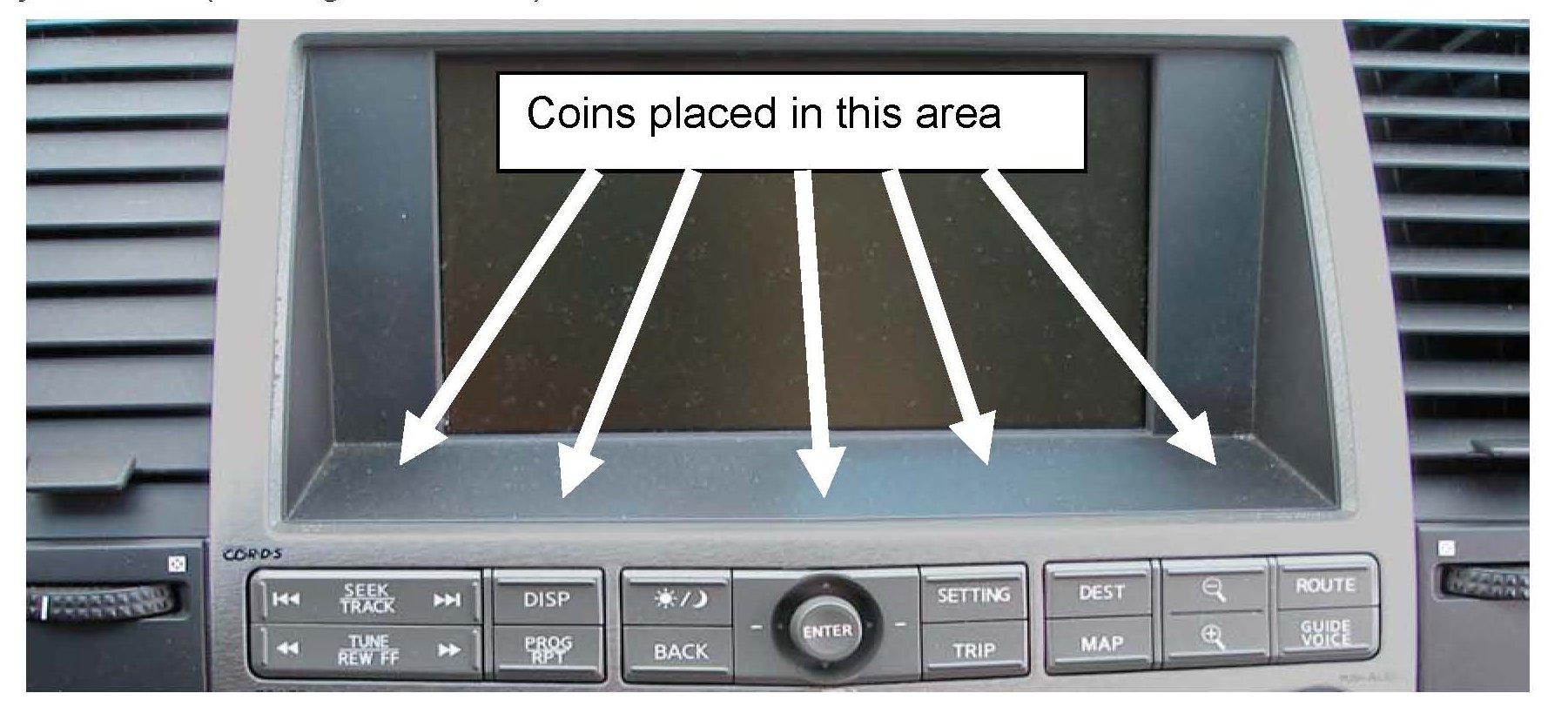

The customer has / does place coins on the area in front of the Unified Meter and A/C Amp. Display Screen (see figure).

Coins may have fallen down past the screen and into the A/C Auto Amp.

ACTION:

If you can hear coins rattling inside the A/C Auto. Amp., replace the NC Auto Amp. with the one from the Parts Information section of this bulletin.

If you cannot hear coins rattling inside the NC Auto Amp., this bulletin does not apply. Return to AS 151 and the ESM for further diagnostic information.





PARTS INFORMATION

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding shown.
