A/T - Harsh 1-2, 3-4, 4-3, 2-1 Upshifts/Downshifts
Classification: AT11-003Reference: NTB11-035
Date: April 7, 2011
2004 - 2006 MAXIMA; 5-SPEED A/T SHIFT ISSUES
APPLIED VEHICLE: 2004-2006 Maxima (A34)
APPLIED TRANSMISSION: RE5F22A 5-speed A/T
IF YOU CONFIRM:
Harsh 1-2 and/or 3-4 upshifts during moderate acceleration from a stop
and/or
Harsh 4-3 and/or 2-1 downshifts when slowing to a stop.
ACTION:
Go to the REPAIR FLOW CHART below for repair procedure.
^ Refer below for location of A/T assembly serial number and valve body connector locations.
IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will performing. You MUST closely follow the REPAIR FLOW CHART as it contains information that is essential to successfully completing the repair.

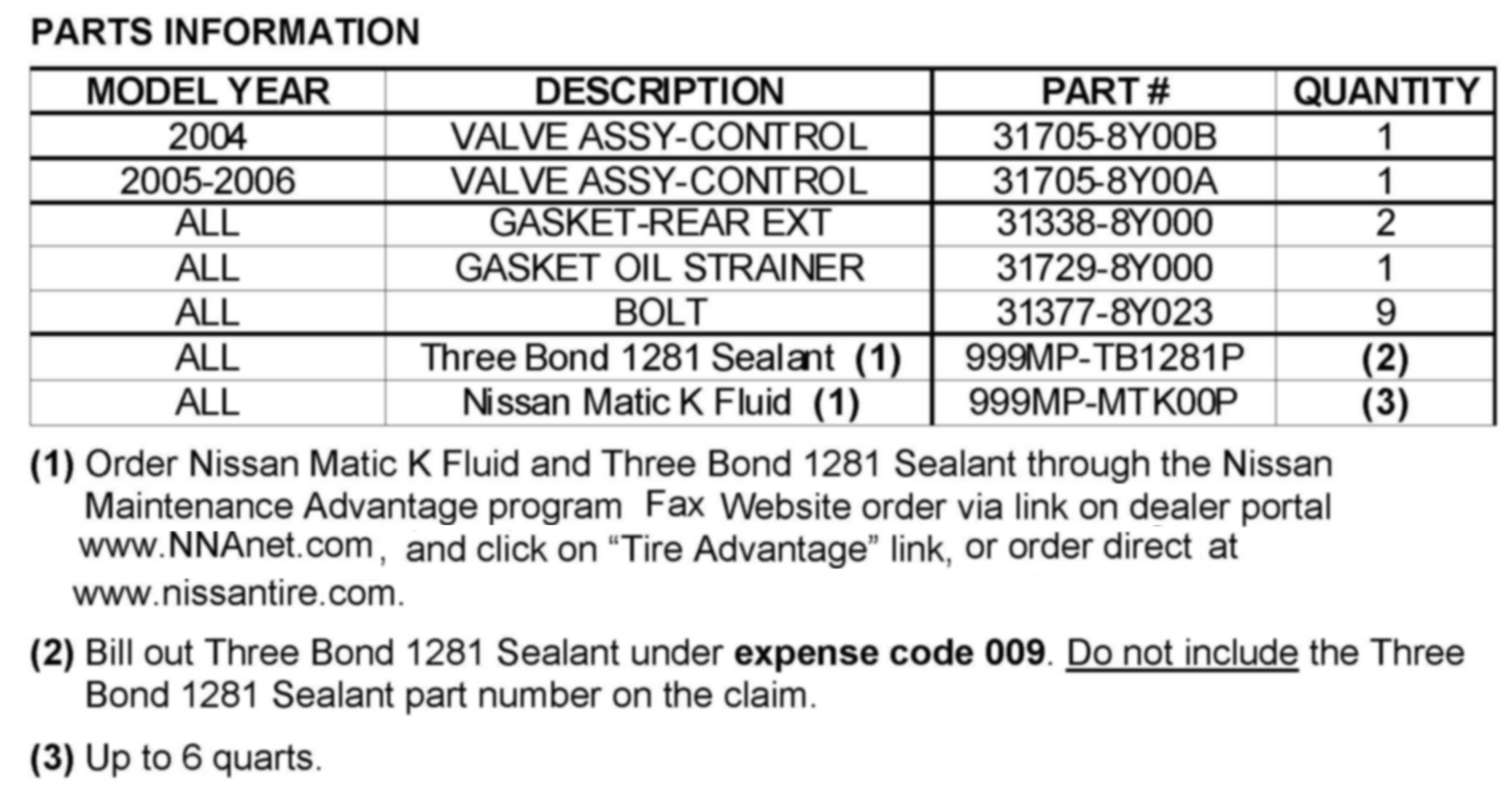

PARTS INFORMATION

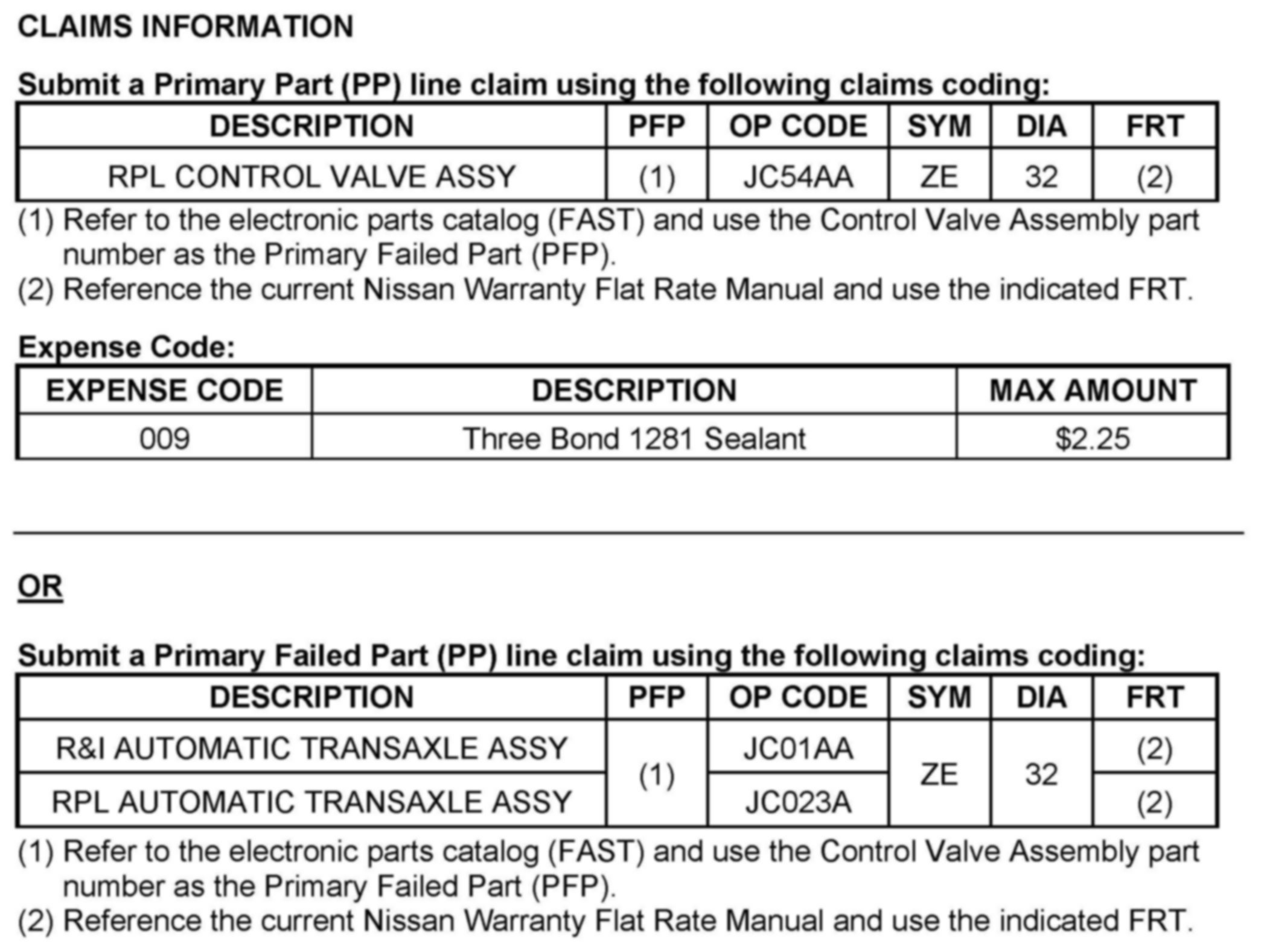

CLAIMS INFORMATION

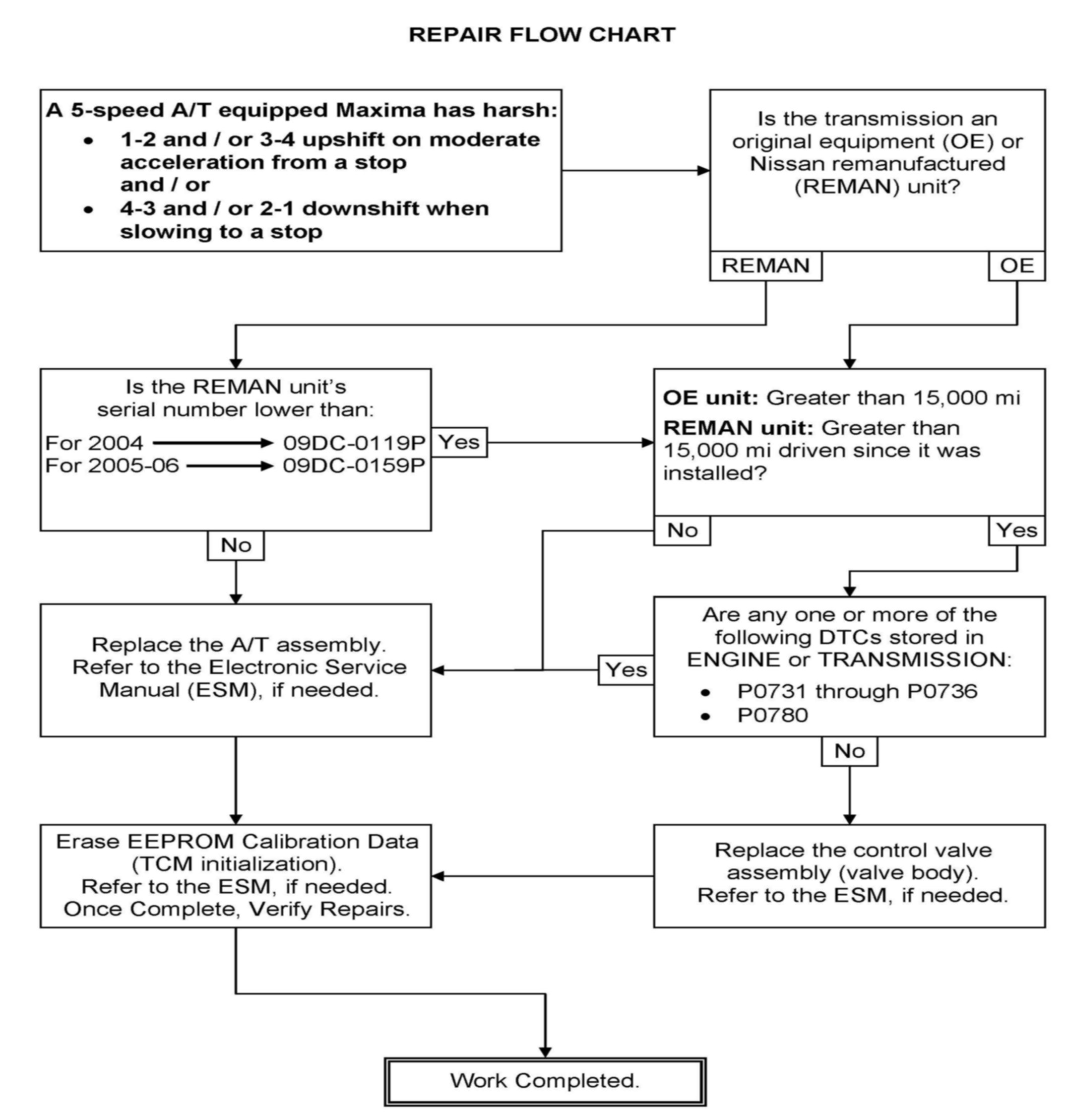

REPAIR FLOW CHART

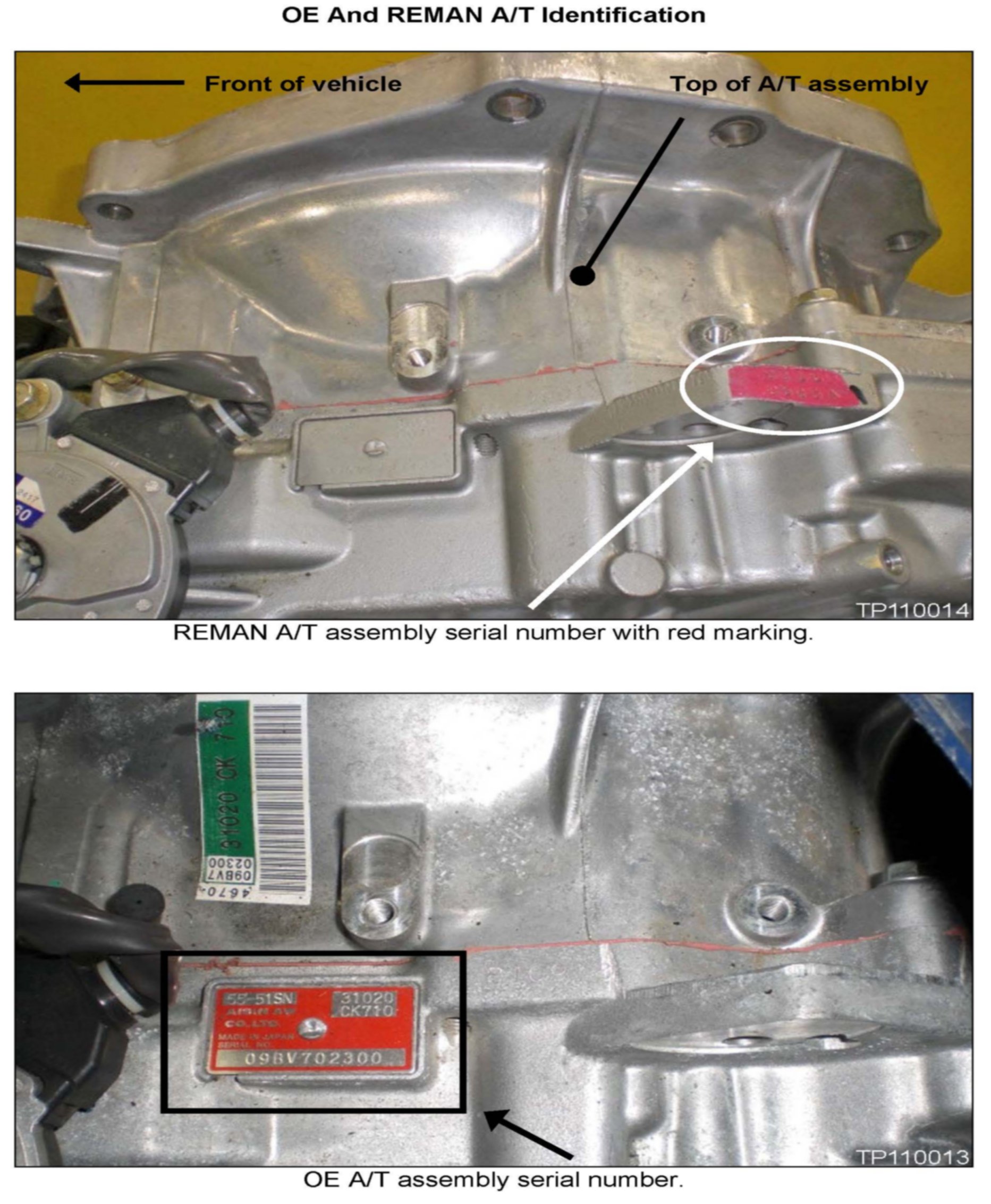

OE AND REMAN A/T IDENTIFICATION

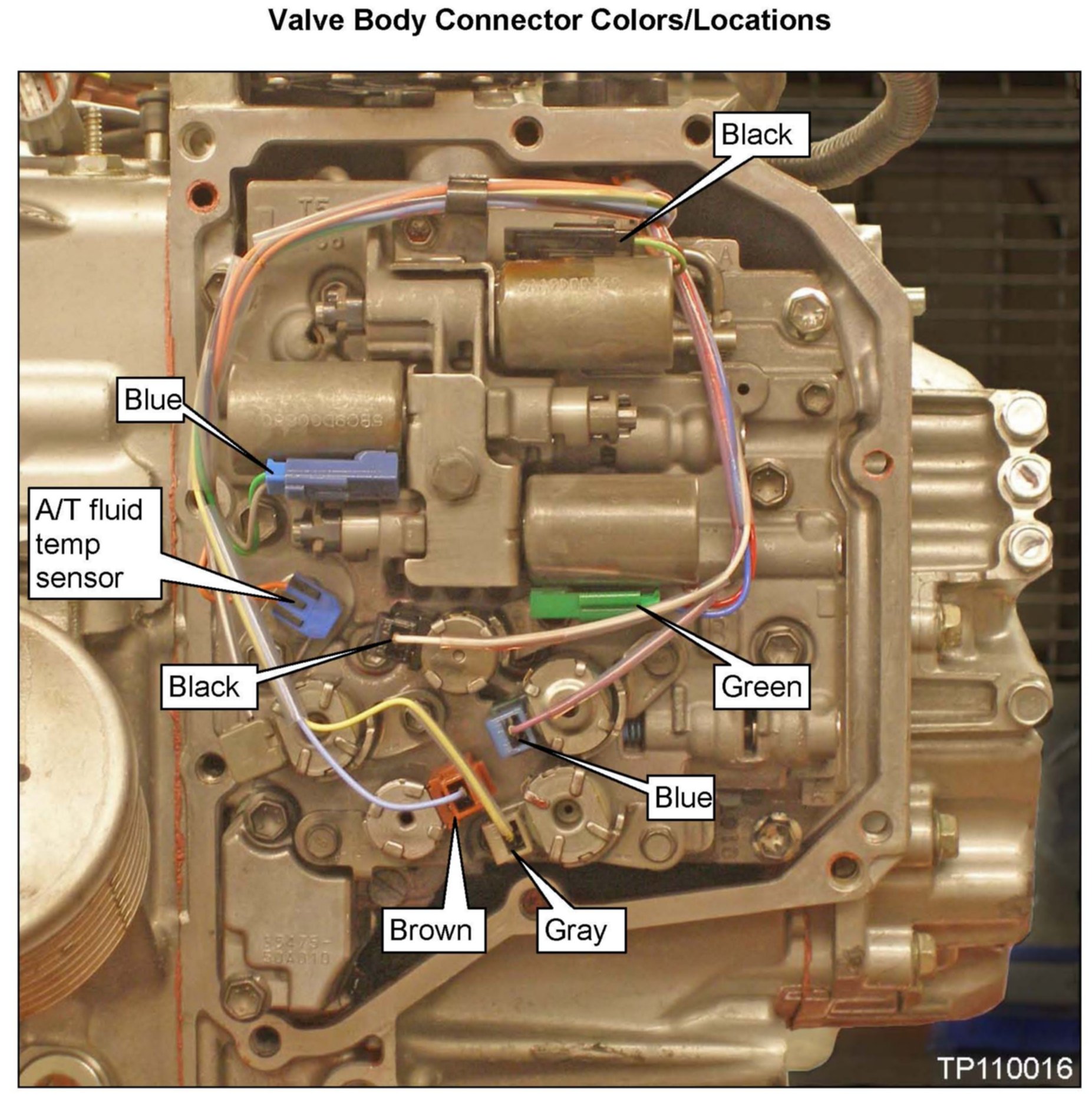

VALVE BODY CONNECTOR COLORS/LOCATIONS
