Windshield Washer Reservoir: Service and Repair

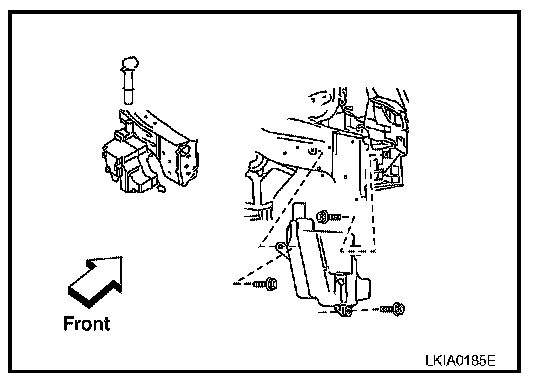

Removal and Installation of Washer Tank




1. Pull out washer tank inlet.
2. Remove fender protector. Refer to "Removal and Installation".
3. Remove front washer motor connector and washer fluid level switch connector.
4. Remove washer tank screws.
5. Remove washer hose and remove the washer tank from the vehicle.

CAUTION: After installation, add water up to the upper level of the washer tank inlet and check for water leaks.

Installation is in the reverse order of removal.

Washer tank installation screw
Tightening torque: 3.9 - 5.0 Nm (0.40 - 0.50 kg-m, 34 - 45 in-lb)
