Grille: Service and Repair

FRONT GRILLE

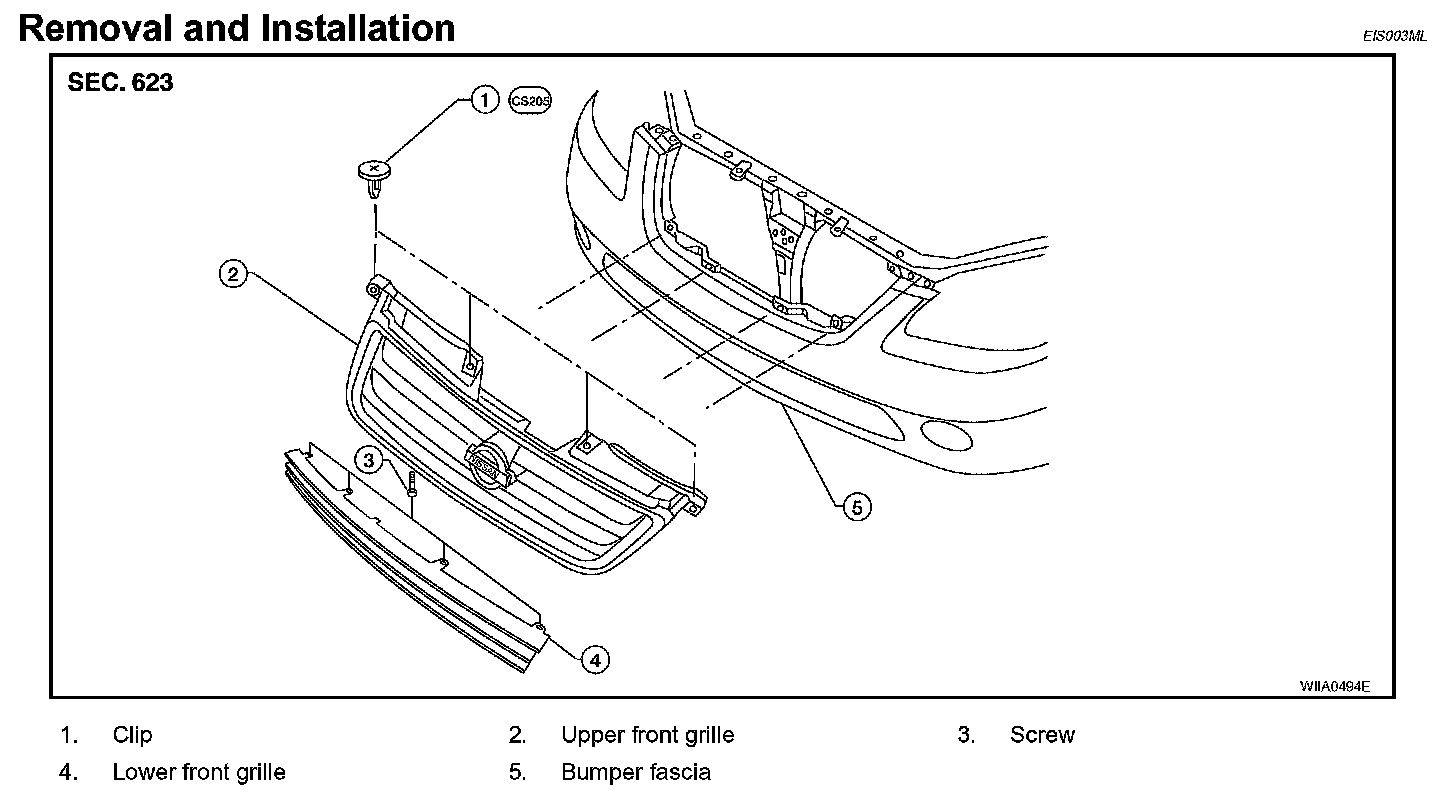

Removal and Installation

UPPER FRONT GRILLE

Removal
1. Remove the upper clips.
2. Release the lower tabs from the bumper fascia, then remove the upper front grille.

Installation
Installation is in the reverse order of removal.

LOWER FRONT GRILLE

Removal
1. Remove engine under cover.
2. Remove the upper screws.
3. Release the lower tabs from the bumper fascia, then remove the lower front grille.

Installation
Installation is in the reverse order of removal.
