Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2006
>>
Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

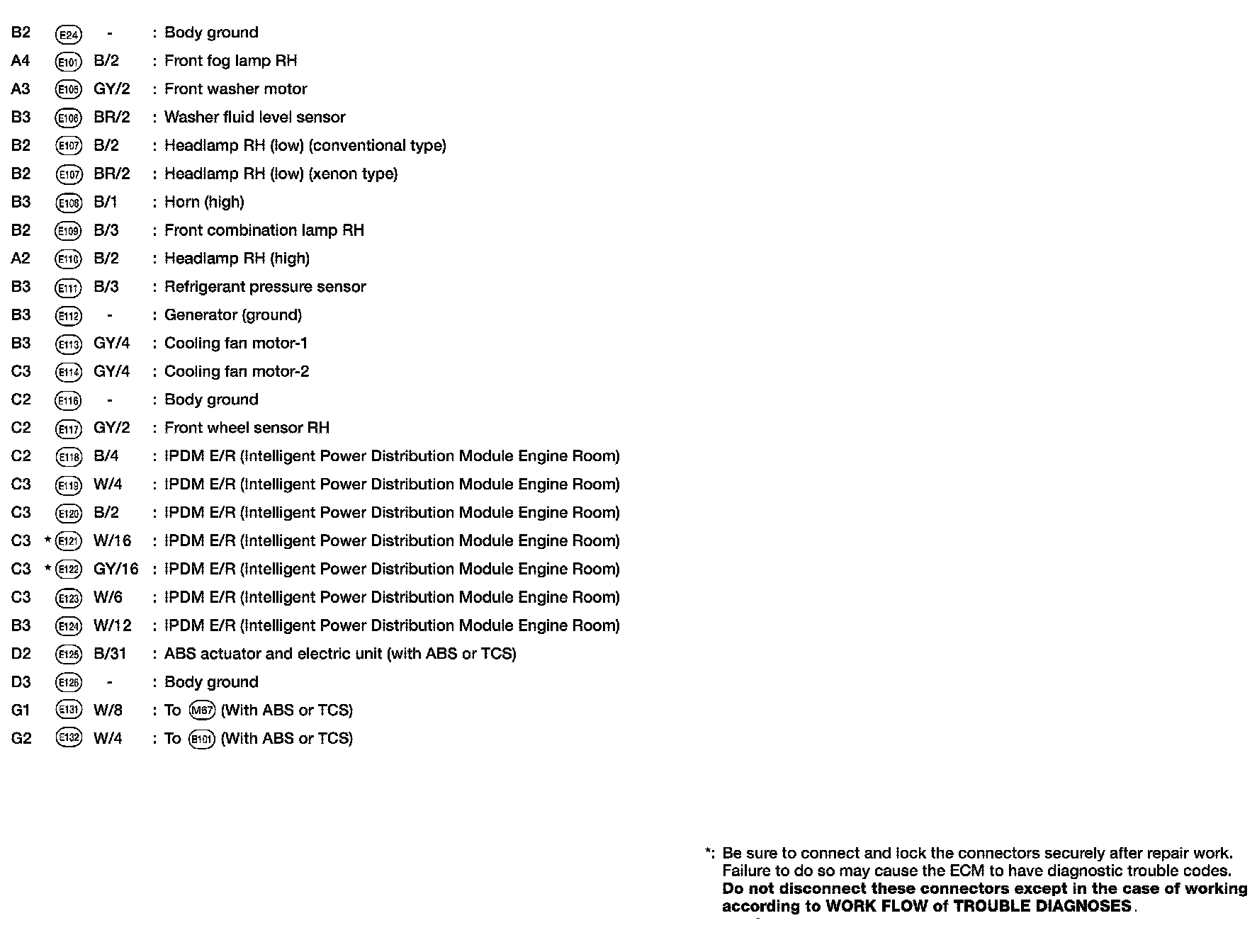

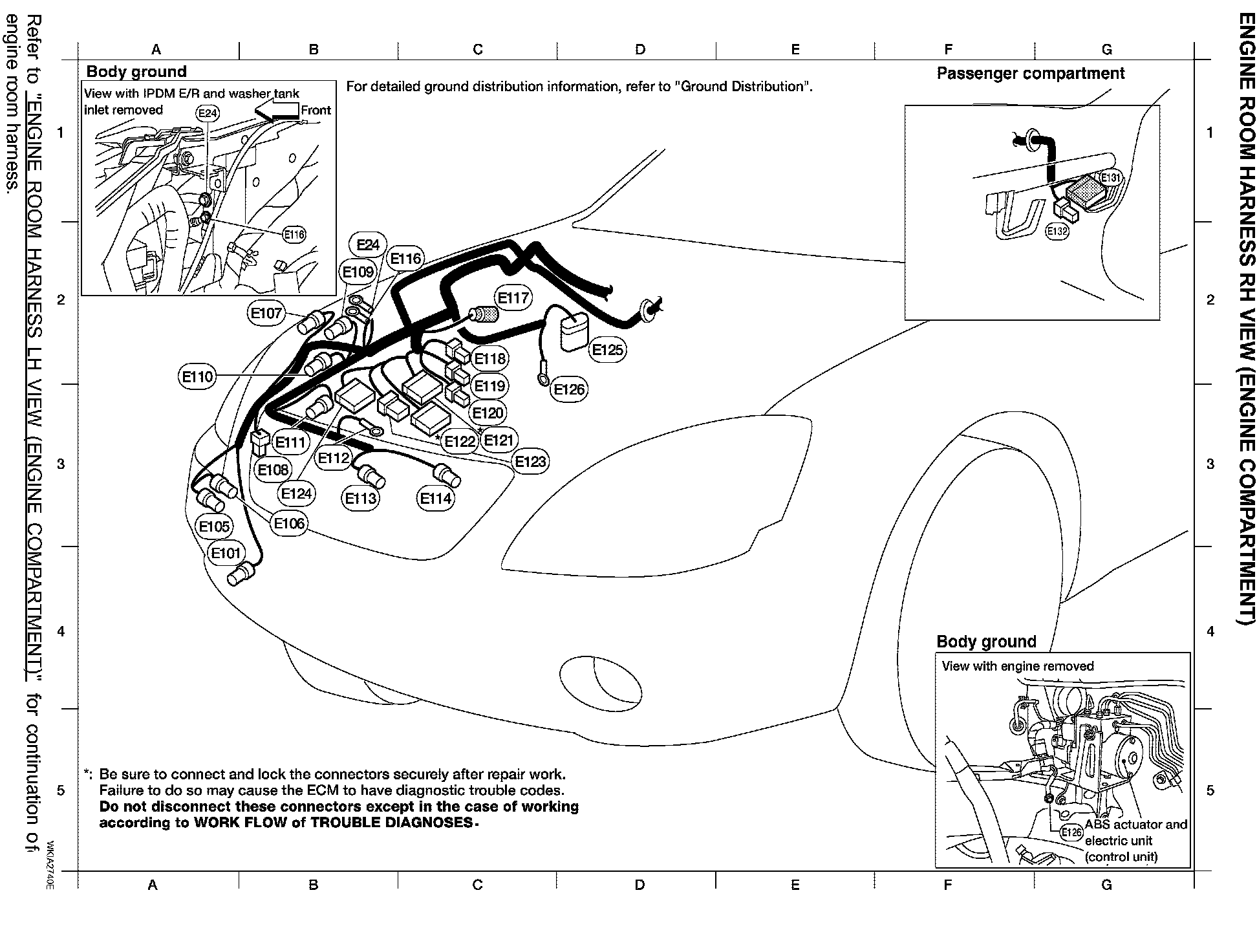

Engine Room Harness RH View (Engine Compartment)
Engine Room Harness RH View (Engine Compartment)
