Engine Lubrication

LUBRICATION SYSTEM

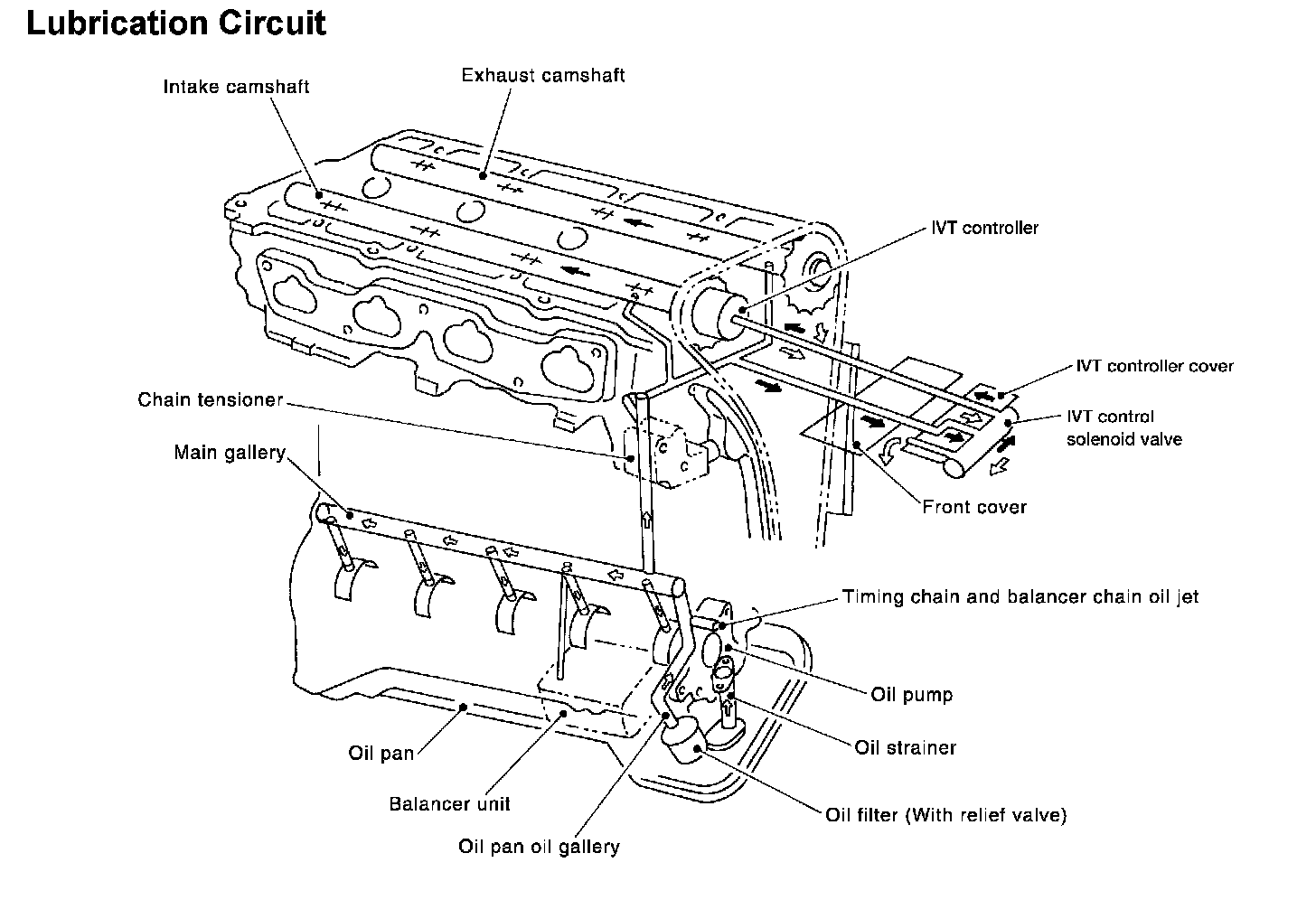

Lubrication Circuit:





Lubrication Circuit

System Drawing:





System Drawing
