Cooling System: Diagrams
COOLING SYSTEM
Cooling Circuit:
Cooling Circuit

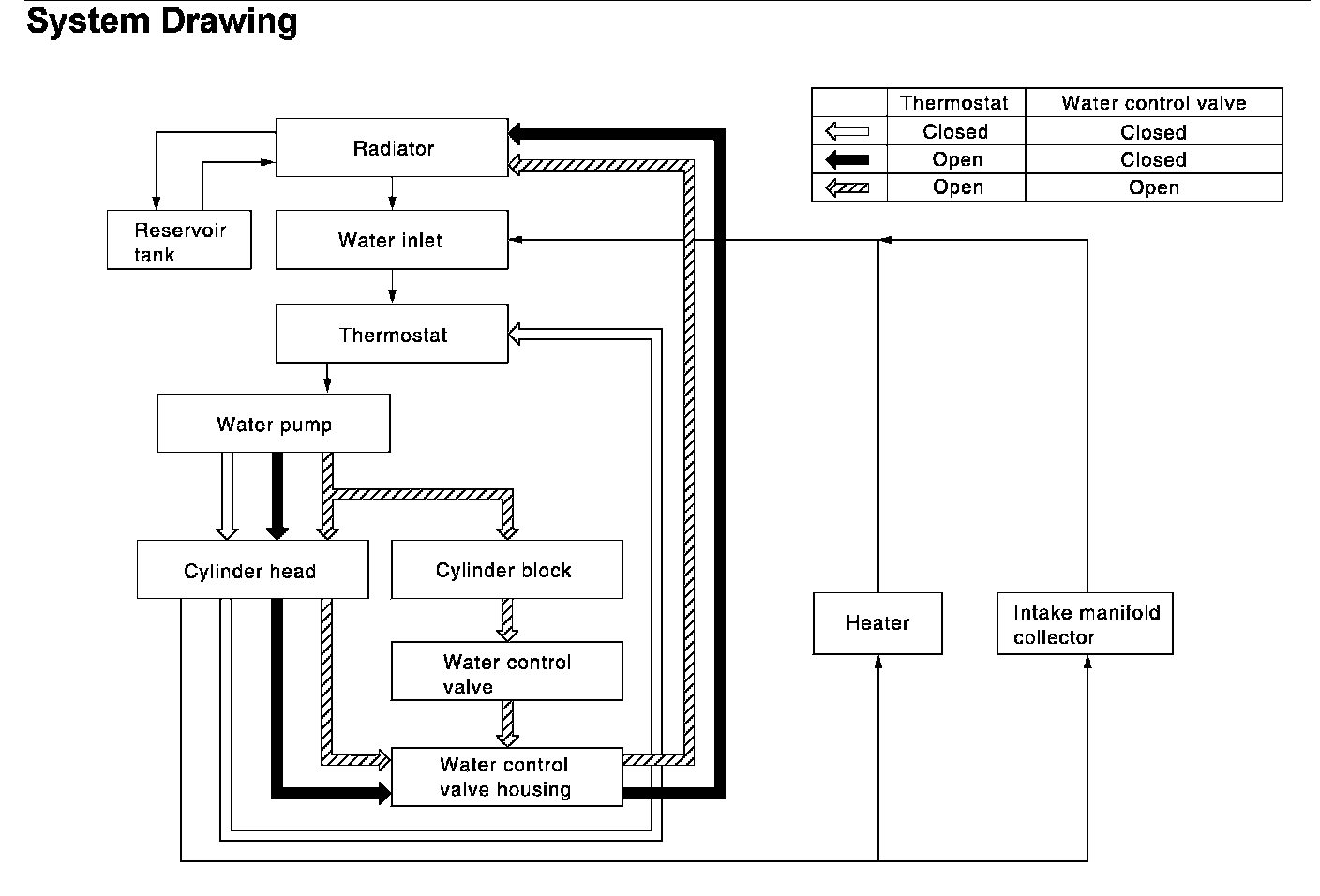

System Drawing:
System Drawing
