Refrigerant Pressure Sensor / Switch: Testing and Inspection

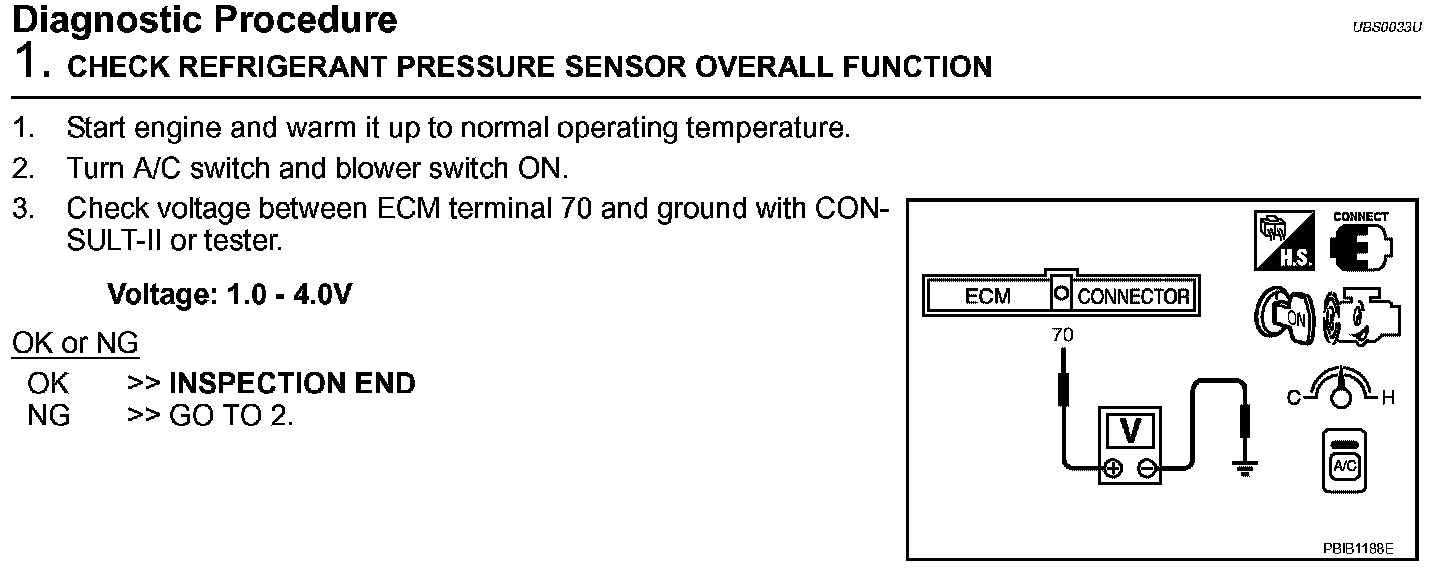

Diagnostic Procedure (Step 1):

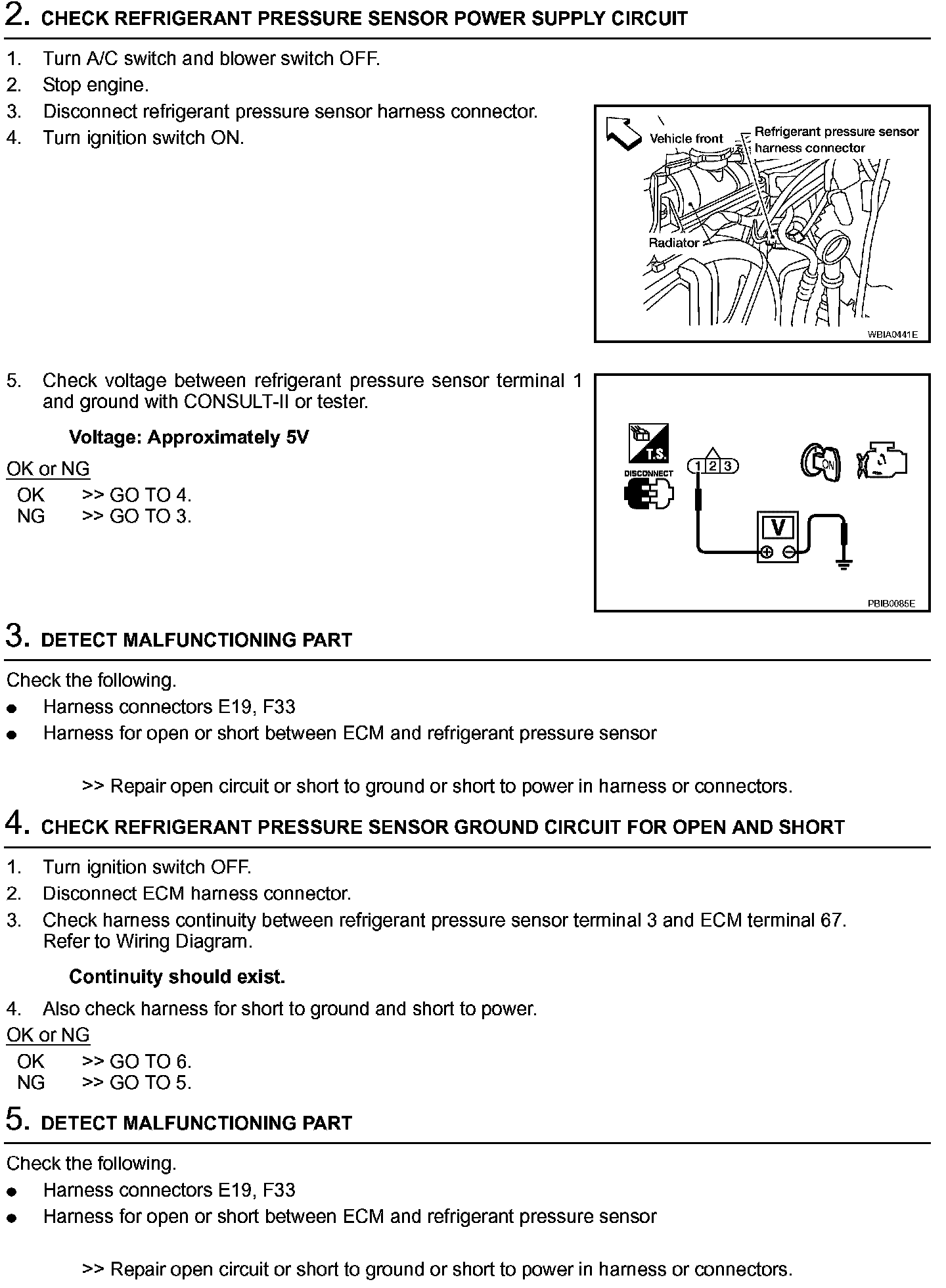

Diagnostic Procedure (Steps 2 - 5):

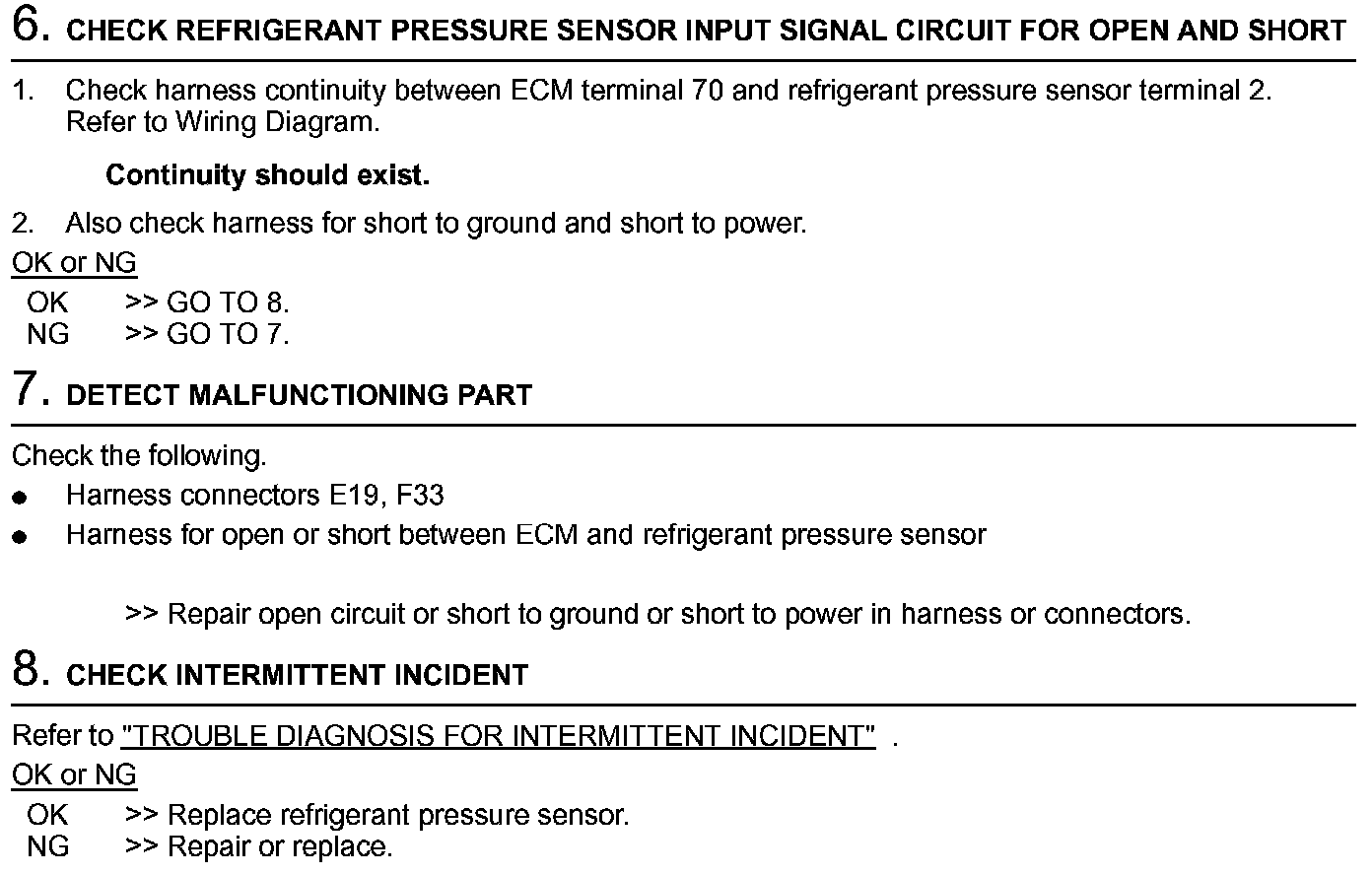

Diagnostic Procedure (Steps 6 - 8):
