Brake Warning Indicator: Locations

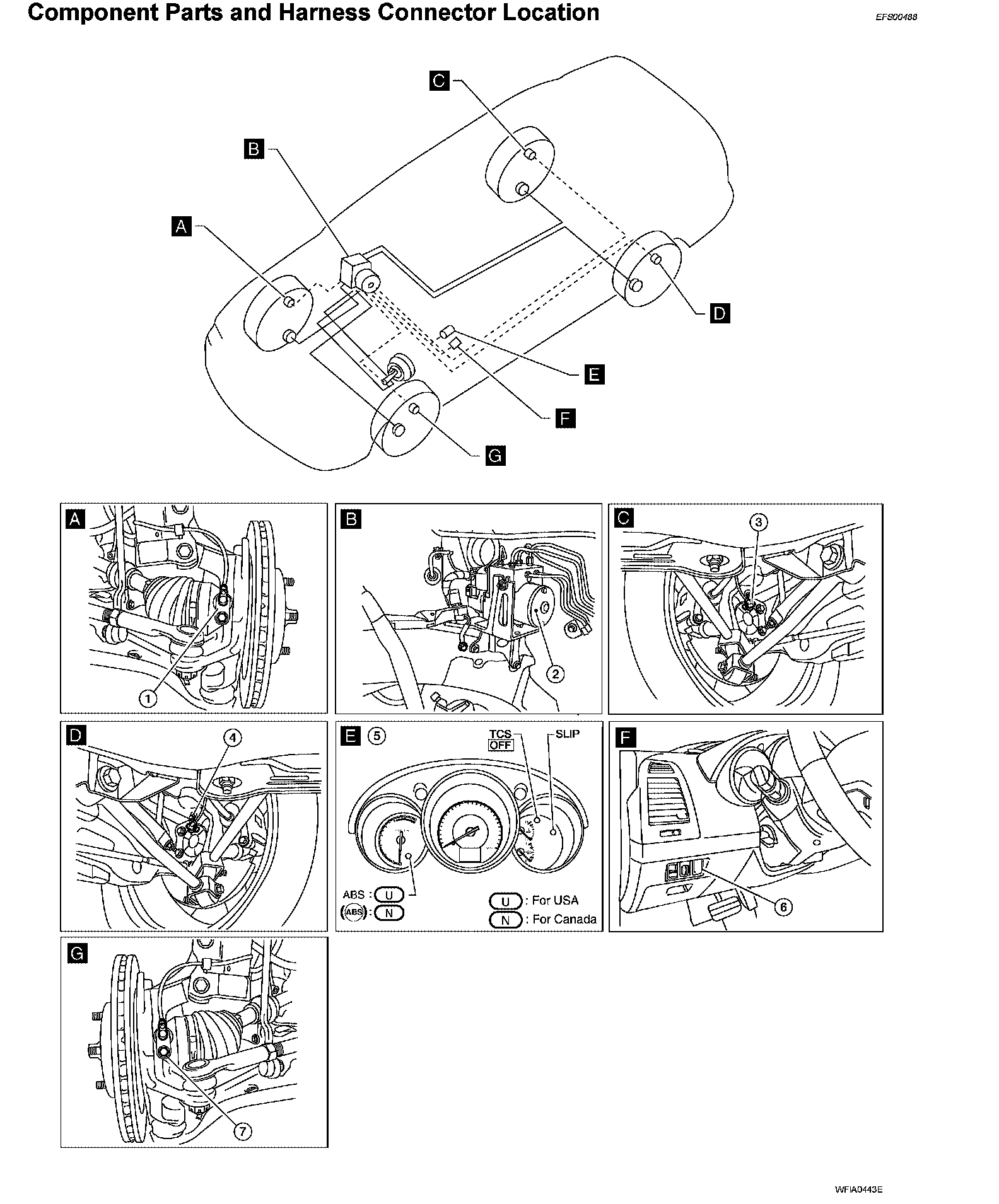

Component Parts and Harness Connector Location:



Component Parts and Harness Connector Location:
